Remove/Install Electronic Diesel System (Eds) Control Unit - Ar07.08-D-7006SD
ENGINES 642.896 /992, 646.984 /985 /986 /989 /990 in MODEL 906
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Disconnect battery ground line | AR54.10-D-0003SD | |
| 2 | Remove battery tray | Only for code (E28) Additional battery 12 V 88 Ah | AR54.00-D-0002SD |

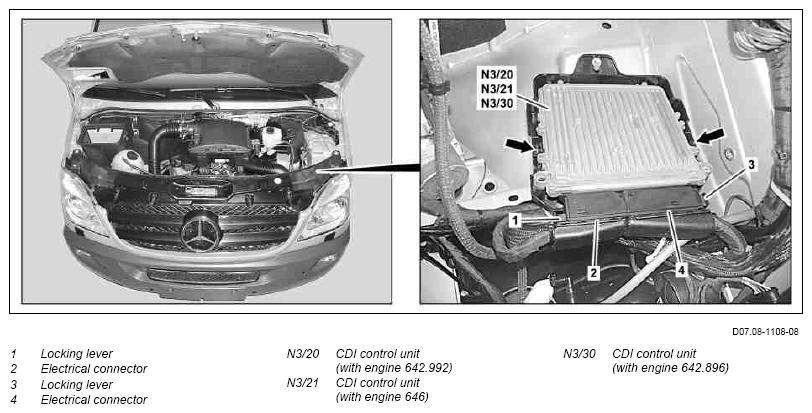

| 3 | Pull locking lever (1, 3) to outside and disconnect electrical connectors (2, 4) at the CDI control unit (N3/20, N3/21 or N3/30) | ||
| 4 | Unclip CDI control unit (N3/20, N3/21 or N3/30) from the bracket (arrows) and remove | ||
| 5 | Install in the reverse order | ||
| 6 | Connect STAR DIAGNOSIS, read out DTC memory and erase if required | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-D-2000-04SD |
