Start/Stop Function, Engine Does Not Stop (LI54.10-P-053514)
Publication date: 2012-05-09Reference number: LI54.10-P-053514
START/STOP FUNCTION, ENGINE DOES NOT STOP
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI54.10-P-053514 Version 1, Date of Issue:
May 9, 2012
| Mercedes-Benz: | W204 with B03 and code 427 VIN 204... .A575160 to 204... .A581636; A207, C207 with B03 and 427 VIN 207... .F101150 to 207... .F113909 |
| Design Group: | 54.10 Battery, voltage supply, voltage converter |
| Reason For Change: |
COMPLAINT
The start/stop function is sometimes unavailable the first time the engine is started with the key.
Engine does not stop.
CAUSE
The power supply of the auxiliary oil pump (N89) may sometimes be absent, which can inhibit the stop function.
REMEDY
- Disconnect batter supply from vehicle
- Remove driver-side-SAM, Figure 1
- Unplug connector 2I and connector 11C from driver-side-SAM, see Figure 2
- In connector 2I, disconnect the contact at pin 10, see Figure 3
- Connect the disconnected line to connector 11C pin 6, see Figure 3
- Reassemble the vehicle in the reverse order and erase the fault memory
ATTACHMENTS
ATTACHMENTS
| File | Designation |
|---|---|
|

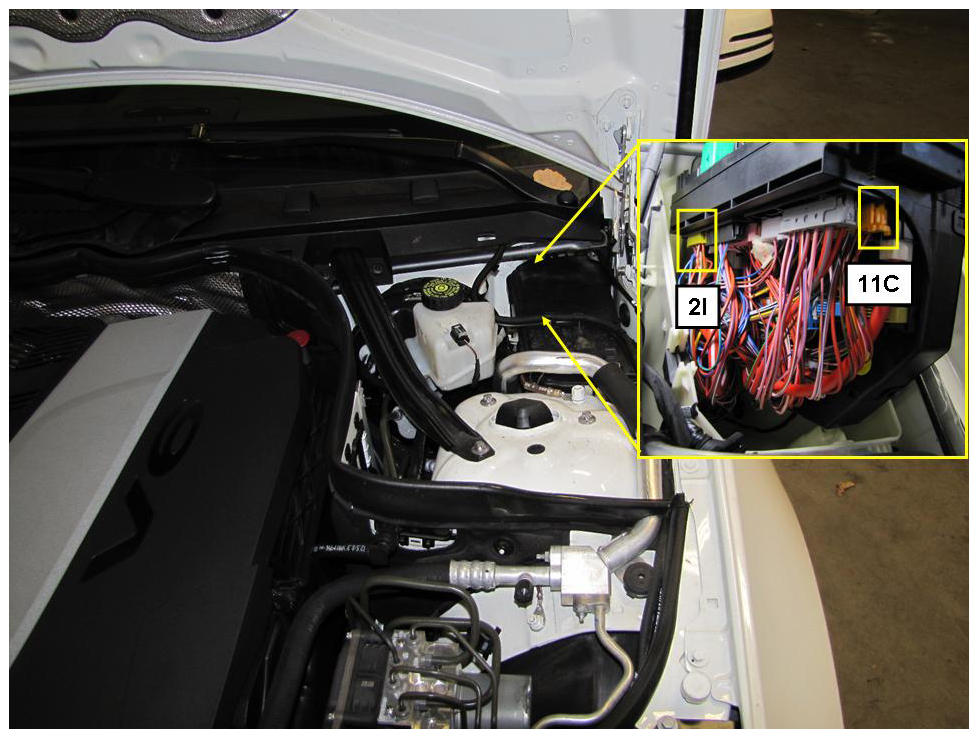

Figure 1 |
Remove driver-side SAM |
|

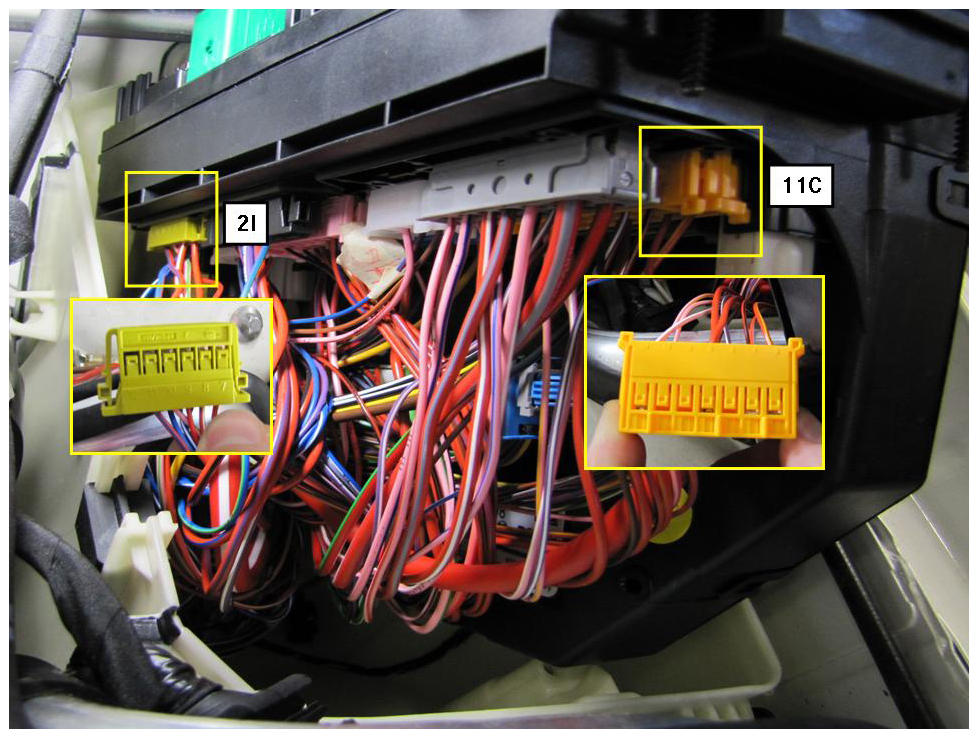

Figure 2 |
Unplug connectors 2I and 11C from driver-side SAM |
|

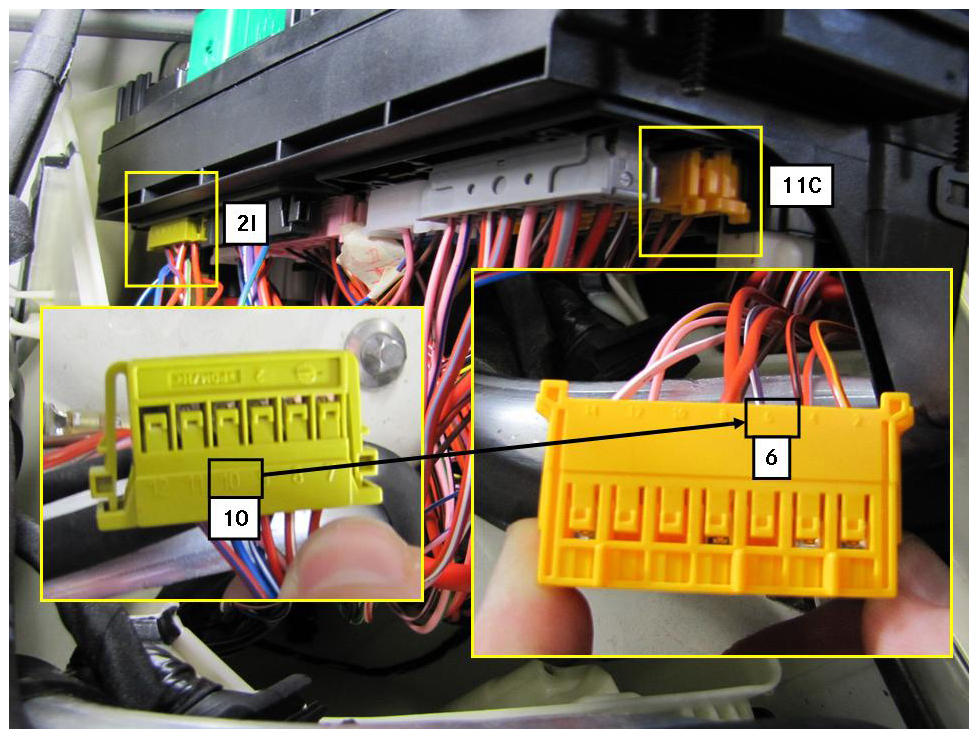

Figure 3 |
Disconnect contact at pin 10 of connector 2I and plug into connector 11C pin 6 |
SYMPTOMS
SYMPTOMS
| Power generation / Engine management / Engine start/stop / Engine does not turn off |
CONTROL UNIT/FAULT CODE
CONTROL UNIT/FAULT CODE
| Control unit | Fault code | Fault text |
|---|---|---|
| VGS - Fully integrated transmission control (Y3/8n4) (VGSNAG2) | D138 | null |
WORK UNITS
WORK UNITS
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 54-9200 | WIRING HARNESS REPAIR | 59181 74 | Connector/line, driver-side SAM control unit |
WIS-REFERENCES
WIS-REFERENCES
| Document number | Title | Note | Allocation |
|---|---|---|---|
| AR00.19-P-0120A | Remove contacts from connectors, couplings | Remedy | |
| AR54.10-P-0003EW | Disconnect/connect battery ground line | Remedy | |
| AR54.15-P-1330EC | Remove/install front prefuse box | Remedy |
