Engine Overheating (TT 01/14-D)

Publication date: 2014-01-01
Reference number: TT 01/14-D

ENGINE OVERHEATING

DEALER TECH TOPICS; JANUARY 2014

Reference Number(s): TT 01/14-D, Date of Issue: January 2014

MERCEDES-BENZ:	Models with Engine M276
GROUP:	20.10 - Coolant pump, coolant thermostat

Engine Overheating

Cover between the water pump and block might be missing on new vehicle. When this cover is missing, this can cause an overheating condition.

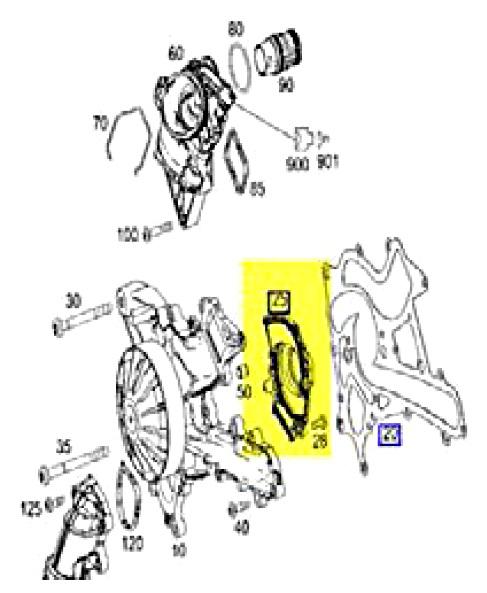

See illustration below for location for missing cover.
