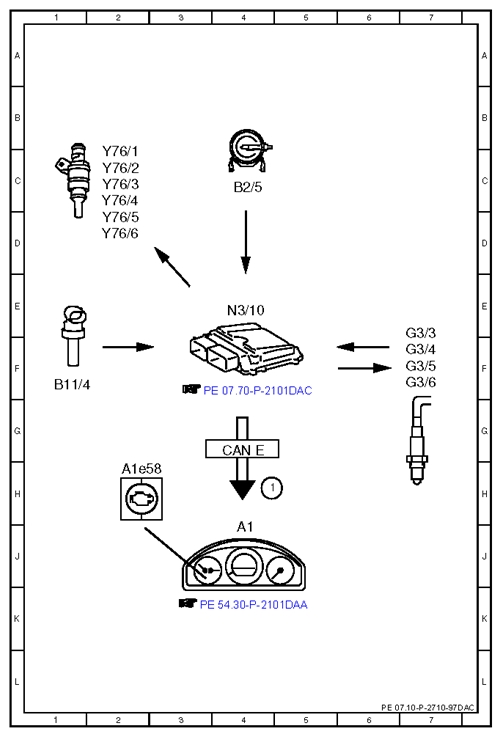

Electrical function schematic for lambda control - PE07.10-P-2710-97DAC
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 4H |
| A1 | Instrument cluster | 4J |
| A1e58 | Engine diagnosis indicator lamp | 2H |
| B11/4 | Coolant temperature sensor | 1F |
| B2/5 | Hot film mass air flow sensor | 4C |
| CAN E | Chassis CAN | 4G |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7F |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7F |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 7F |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 7F |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y76/1 | Cylinder 1 fuel injector | 2C |
| Y76/2 | Cylinder 2 fuel injector | 2C |
| Y76/3 | Cylinder 3 fuel injector | 2C |
| Y76/4 | Cylinder 4 fuel injector | 2C |
| Y76/5 | Cylinder 5 fuel injector | 2D |
| Y76/6 | Cylinder 6 fuel injector | 2D |
