Remove/install starter - AR15.30-P-7100LF

ENGINE 157, 278 in MODEL 217, 222

Shown on engine 278 without code M005 (4MATIC)

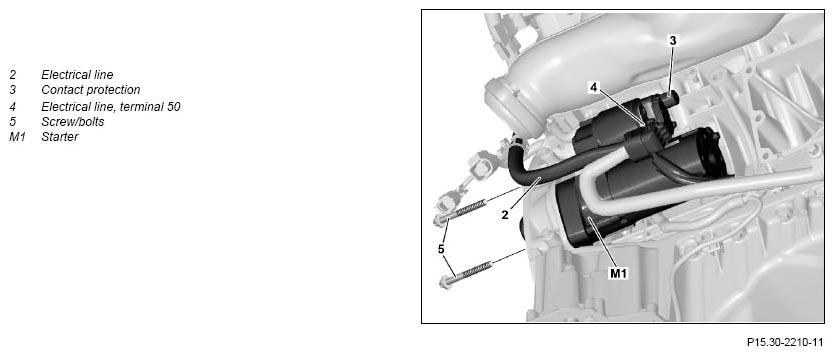

Fig 1: Starter Remove/Install Components - Shown On Engine 278 Without Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Detach ground line from battery		AR54.10-P-0003LF
2	Remove center and rear engine compartment paneling		AR61.20-P-1105LF
3	Remove steering coupling	Model 217 with engine 157, 278 with code M005 (4MATIC) Model 222 as of 4/30/14 with engine 157, 278 with code M005 (4MATIC)	AR46.10-P-8000LW
		Model 222 up to 4/29/14 with engine 157, 278 with code M005 (4MATIC)	AR46.10-P-8000RK
4	Detach alternator cable set at A/T
5	Remove heat shield over starter (M1)
6	Detach contact protection (3) and detach electrical line circuit 30 at starter (M1)	Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
7	Detach electrical line of circuit 50 (4) at starter (M1)	Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
8	Unclip crankcase electrical line (2) from bracket
9	Remove screw/bolts (5) of starter (M1)	Bolt, starter to crankcase	*BA15.30-P-1003-01J
10	Remove starter (M1) from below
	Check
11	Check ring gear at the drive plate for wear and damage	When replacing the starter (M1). Rotate engine at center Bolt, crankshaft in the direction of engine rotation. Socket wrench bit Ring gear on clutch plate worn or damaged. ↓	Fig 2
		Replace drive plate.	AR03.30-P-8001LFB
12	Install in the reverse order

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
