Purging Function - GF47.30-P-3015MMV
Engine 276.8 in model 205, 253

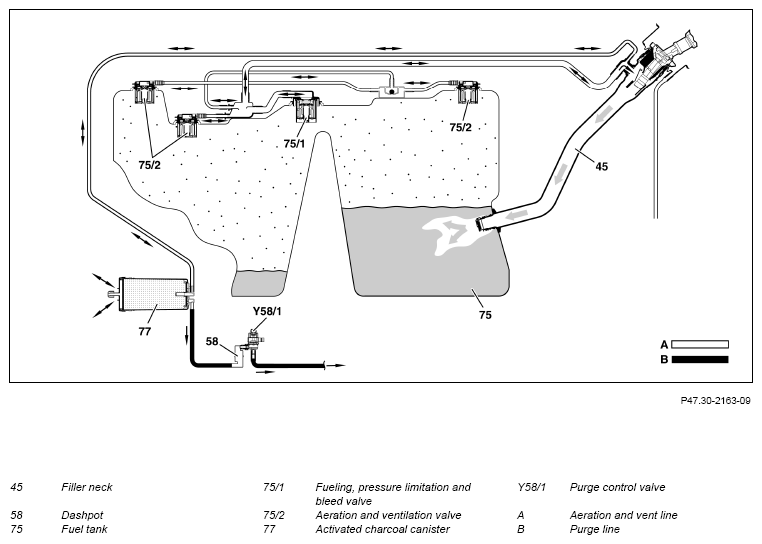

Schematic diagram of fuel tank aeration and ventilation (except code 494 (USA version))
Purging function requirements general points
- Circuit 87M (Engine management ON)
- Engine started for at least 60 to 80 s
- Coolant temperature > 40°C
- Engine not in deceleration mode
- Engine not in the lambda adaptation phase
Purging general points
When the fuel tank is being ventilated no fuel vapors should escape into the outside air.
The fuel vapors are stored in the activated charcoal canister and burnt later in the engine
Release of the purging takes place on the basis of the following sensors and signals:
- Purging pressure sensor (B4/4) (with CODE 494 (USA version))
- Coolant temperature sensor (B11/4)
- Charge air temperature sensor (B17/8)
- Pressure sensor downstream o throttle valve (B28/7) engine load
- Crankshaft Hall sensor (B70) engine rpm
- LH and RH oxygen sensor, sensor elements upstream of catalytic converter (G3/3b1, G3/4b1)
Ventilation of the fuel tank (operational ventilation) takes place over the aeration/vent valves the aeration/vent lines and the activated charcoal canister
The fuel vapors flow to the activated charcoal canister where they are stored and drawn off into the charge air distributor when purging is enabled.
When the engine is running the fuel vapors stored in the activated charcoal canister are extracted through the purging switchover valve and combusted in the engine.
The purging switchover valve is actuated by the ME-SFI [ME] control unit (N3/10) at the ground end to regulate the purging quantity by means of an electric signal between 0 and 500 mA.
The idle speed control prevents the purging from causing a change in rpm when the engine is at idle The fuel/air mixture is leaned out depending on the level of fuel vapors load in the activated charcoal canister.
Function sequence for purging
- Function sequence for partial load purging
- Function sequence for wide open throttle purging
Function sequence for partial load purging
In partial load operation the fuel vapors stored in the activated charcoal canister are drawn off by the existing vacuum via the purging switchover valve the partial operation purge line behind the throttle valve and are burned in the engine.
Function sequence for wide open throttle purging
In wide open throttle operation the fuel vapors are suctioned off through the wide open throttle operation check valve and the wide open throttle purge line.
The vacuum required for this is generated by a Venturi nozzle. The fuel vapors are then routed over the wide open throttle purge line, ATL and the charge air cooler to the charge air distributor.
To check whether the wide open throttle purging can be enabled, the purging switchover valve is opened suddenly three times in succession. Pressure peaks of > 120 mbar must be registered here.
For code 494 (USA version) the purging pressure sensor detects the existing pressure conditions in the wide open throttle purge line and gives a signal to the ME-SFI [ME] control unit.

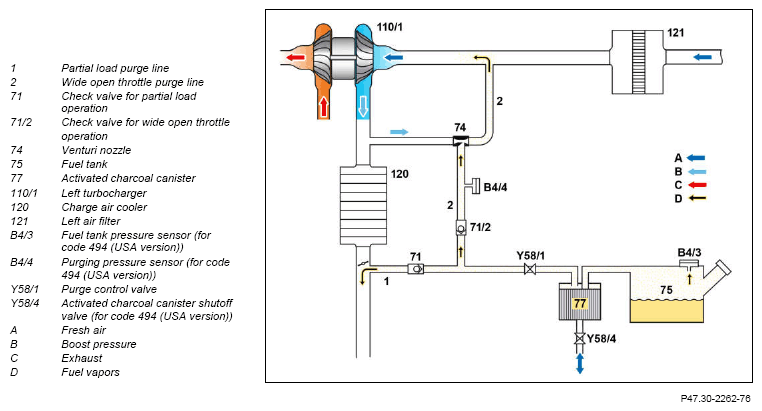

Schematic representation of purging
