Remove/Install Pressure Transducer For Boost Pressure Control - AR07.17-P-7002MRA
Engine 274.9 in model 205
Engine 274.9 in model 253
Shown on ENGINE 274.910 in MODEL 205.040

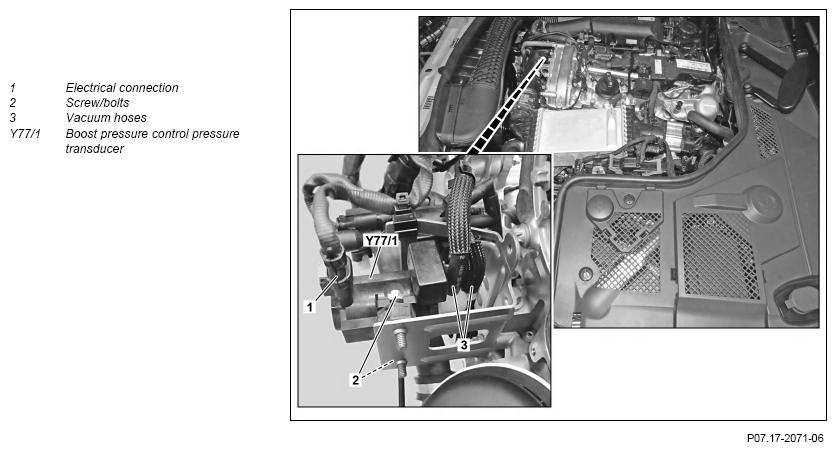

Fig 1: Boost Pressure Control Transducer Components Location - Engine 274.9 In Model 205 (Shown On Engine 274.910 In Model 205.040)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove engine air intake duct upstream of air filter | ||
| 3 | Mark vacuum hoses (3) to the respective connection | ||
| 4 | Detach vacuum hoses (3) from boost pressure control pressure transducer (Y77/1) | ||
| 5 | Release and disconnect electrical connection (1) | ||
| 6 | Remove screws/bolts (2) and take off boost pressure control pressure transducer (Y77/1) | *BA00.10-P-1002-04A | |
| 7 | Install in the reverse order | ||
| 8 |
Read out and erase fault memory | AD00.00-P-2000-04B |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
