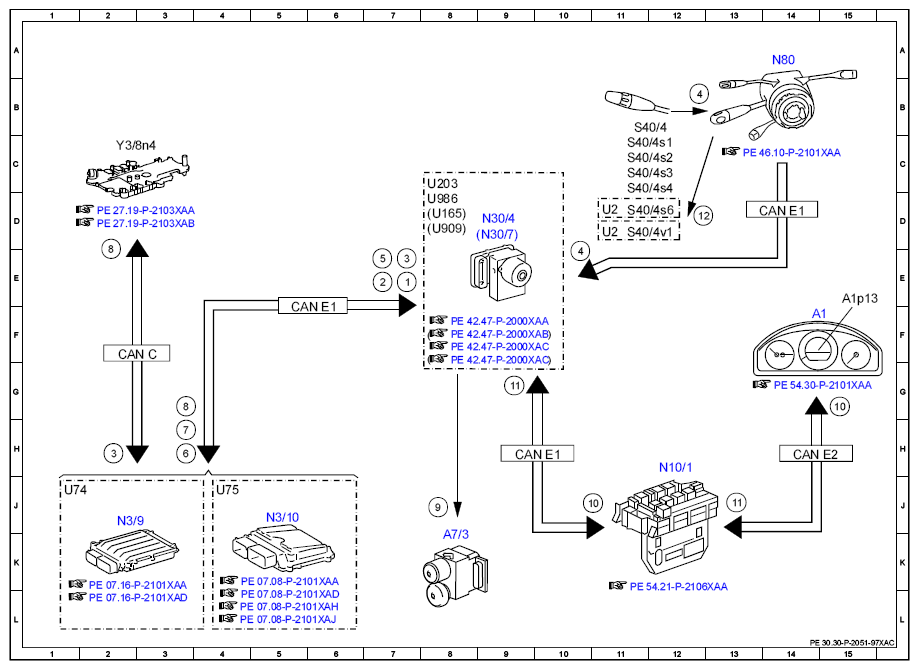

| 1 |
Engine running, signal |
7E |
| 10 |
Speed setting, status |
15G |
| 10 |
Speed setting, status |
10J |
| 11 |
Set maximum speed, status |
9G |
| 11 |
Set maximum speed, status |
13J |
| 12 |
Light-emitting diode actuation |
12D |
| 2 |
Drivetrain operational, signal |
7E |
| 3 |
Gear range, status |
7E |
| 3 |
Gear range, status |
2H |
| 4 |
CRUISE CONTROL lever, signal |
12B |
| 4 |
CRUISE CONTROL lever, signal |
10E |
| 5 |
Accelerator pedal position, signal |
7E |
| 6 |
Engine torque, reduce request |
3H |
| 7 |
Engine torque, increase request |
3H |
| 8 |
Engage targeted gear, request |
|
| 8 |
Engage targeted gear, request |
|
| 9 |
Traction system hydraulic unit, actuation |
8J |
| A1 |
Instrument cluster |
14F |
| A1p13 |
Multifunction display |
15E |
| A7/3 |
Traction system hydraulic unit |
8K |
| CAN C |
Drive train CAN |
2F |
| CAN E1 |
Chassis CAN 1 |
5F |
| CAN E1 |
Chassis CAN 1 |
9H |
| CAN E1 |
Chassis CAN 1 |
14D |
| CAN E2 |
Chassis CAN 2 |
14H |
| N10/1 |
Front SAM control unit with fuse and relay module |
12H |
| N3/10 |
ME-SFI [ME] control unit |
5J |
| N3/9 |
CDI control unit |
2J |
| N30/4 |
Electronic Stability Program control unit |
9D |
| N30/7 |
Premium Electronic Stability Program control unit |
8D |
| N80 |
Steering column module control unit |
14A |
| S40/4 |
Cruise control lever |
11B |
| S40/4s1 |
Resume from memory switch |
11C |
| S40/4s2 |
Decelerate and set switch |
11C |
| S40/4s3 |
Accelerate and set switch |
11C |
| S40/4s4 |
OFF switch |
11D |
| S40/4s6 |
SPEEDTRONIC switch |
11D |
| S40/4v1 |
SPEEDTRONIC light emitting diode |
11D |
| U165 |
Valid for AMG |
8D |
| U2 |
Valid for all except USA |
11D |
| U2 |
Valid for all except USA |
11D |
| U203 |
Valid without DISTRONIC PLUS |
8C |
| U74 |
Valid for diesel engines |
1J |
| U75 |
Valid for gasoline engines |
4J |
| U909 |
Valid for DISTRONIC PLUS |
8D |
| U986 |
Not valid for AMG |
8D |
| Y3/8n4 |
Fully integrated transmission control unit |
2C |
