Overview Of System Components For Windows And Sightproofing - GF67.00-P-9999FG
Model 213
up to model year 2021

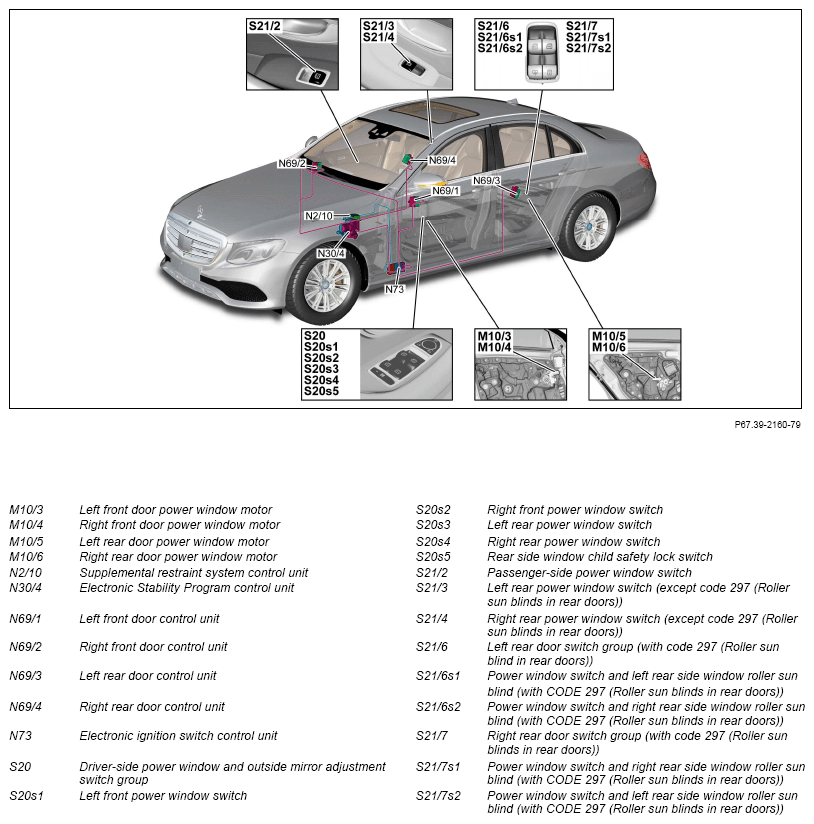

Power window, shown on model 213.0

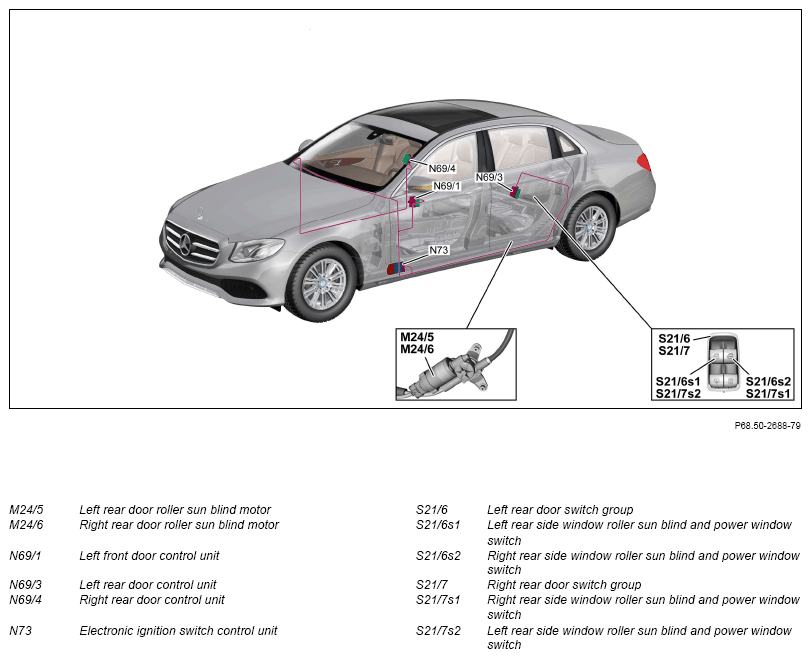

Side window roller sunblind in rear (model 213.1 with code 297 (Roller sun blinds in rear doors))

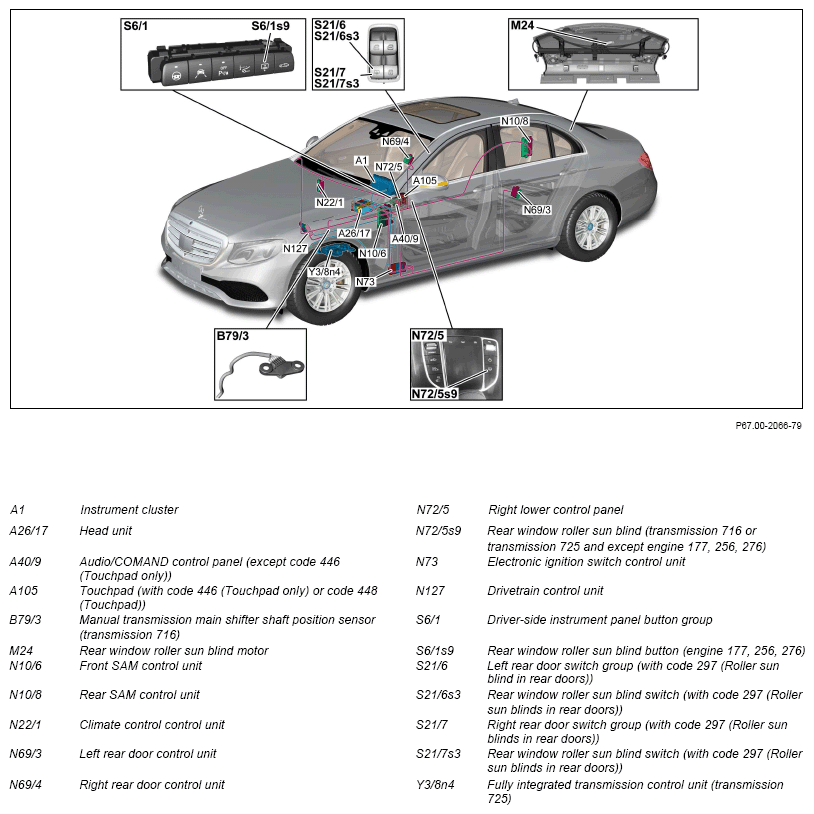

Rear window roller sunblind (model 213.0/1 with code 540 (Electric roller sunblind for rear window)), shown on model 213.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Head unit, component description | Model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Model 213 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FGB | ||
| Component description for Audio/COMAND control panel | Model 213 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FG | |
| Touchpad, component description | Model 213 up to model year 2021 with code 446 (Touchpad only) Model 213 up to model year 2021 with code 448 (Touchpad) A105 | GF54.21-P-4511FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Climate control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Model 213.016/050/216 up to model year 2021 Model 213.053 with engine 274.9 up to model year 2021 N30/4 | GF42.45-P-5119FGH | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Lower control panel, component description | N72/5 | GF54.25-P-4270FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 N127 | GF54.21-P-2141MNA | |
| Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 Model 213 with engine 642.8 up to model year 2021 N127 | GF54.21-P-2141ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORE | ||
| Model 213 with engine 256.9 up to model year 2021 N127 | GF54.21-P-2141LF | ||
| Model 213 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OGS | ||
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y38n4 | GF27.60-P-5165ANL | |
| Model 213 with transmission 725.007/017 up to model year 2021 Y38n4 | GF27.60-P-5165AHU | ||
| Model 213 with transmission 725.096 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | ||
| Table of contents for function description of windows and sightproofing | GF67.00-P-0999FG |
