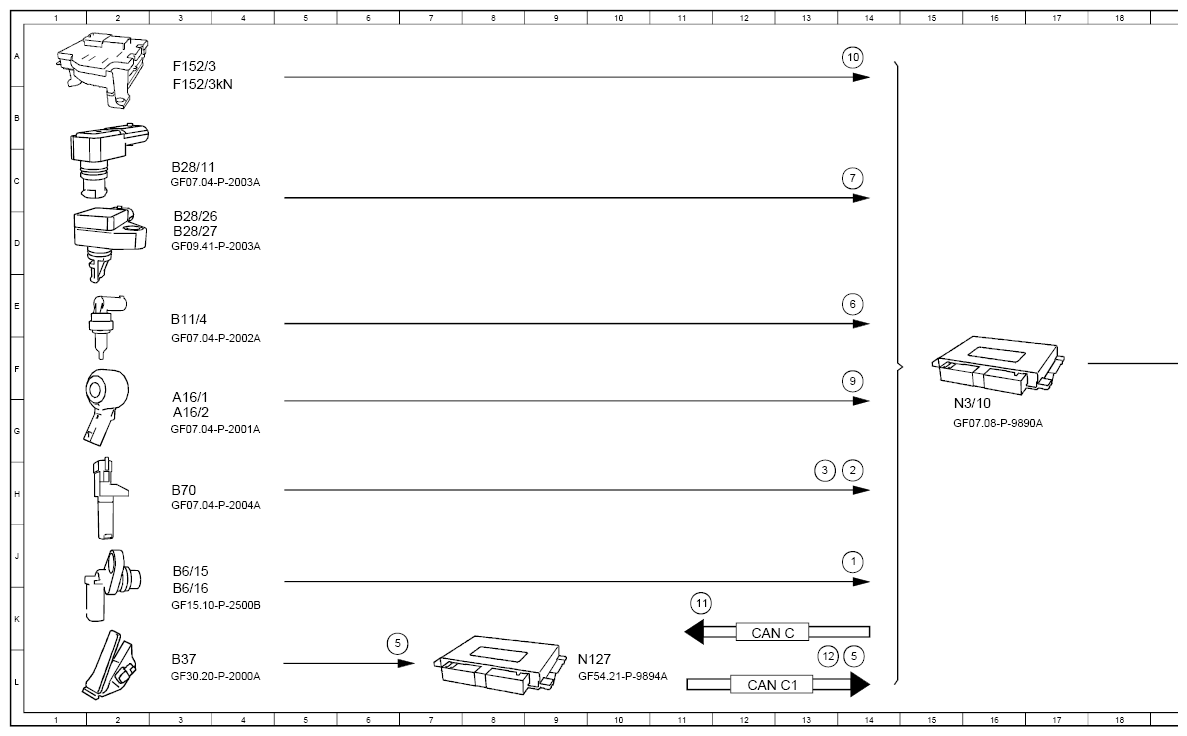

Function Schematic For Knock Control - PE07.61-P-2501-97C
Engine 256 in model 167
Engine 256 in model 213, 238 as of model year 2021
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camshaft Hall sensor, signal | 14J |
| 10 | Circuit 87, status | 14A |
| 11 | Engine running, signal | 11K |
| 12 | Powertrain control unit, request | 13L |
| 2 | Engine speed, signal | 14H |
| 3 | Crankshaft Hall sensor, signal | 13H |
| 4 | Ignition coils, actuation | 20F |
| 5 | Accelerator pedal sensor, signal | 14L |
| 5 | Accelerator pedal sensor, signal | 7L |
| 6 | Coolant temperature sensor, signal | 14E |
| 7 | Engine load, signal | 14C |
| 9 | Knock sensor, signal | 14F |
| A16/1 | Knock sensor 1 | 3G |
| A16/2 | Knock sensor 2 | 3G |
| B11/4 | Coolant temperature sensor | 3E |
| B28/11 | Pressure sensor downstream of air filter | 3C |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 3D |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 3D |
| B37 | Accelerator pedal sensor | 3L |
| B6/15 | Intake camshaft Hall sensor | 3J |
| B6/16 | Exhaust camshaft Hall sensor | 3K |
| B70 | Crankshaft Hall sensor | 3H |
| CAN C | Engine CAN | 12K |
| CAN C1 | Drive train CAN | 12L |
| F152/3 | Engine compartment fuse and relay module | 3A |
| F152/3kN | Circuit 87M relay | 3B |
| N127 | Drivetrain control unit | 10L |
| N3/10 | ME-SFI [ME] control unit | 16G |
| T1/1 | Cylinder 1 ignition coil | 22E |
| T1/2 | Cylinder 2 ignition coil | 22F |
| T1/3 | Cylinder 3 ignition coil | 22F |
| T1/4 | Cylinder 4 ignition coil | 22F |
| T1/5 | Cylinder 5 ignition coil | 22F |
| T1/6 | Cylinder 6 ignition coil | 22G |
