Remove/Install Fuel Level Sensor - AR47.50-P-0110MSA
Engine 256.9 in model 213, 238, 257, 290
MODIFICATION NOTES
| 02.09.2020 | Operation step 1 added. | WS47.00-P-0039B |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 |
Suction off fuel vapors from vehicle interior. | WS47.00-P-0039B | |
| 2 | Remove fuel pump. | AR47.20-P-5710MSA | |

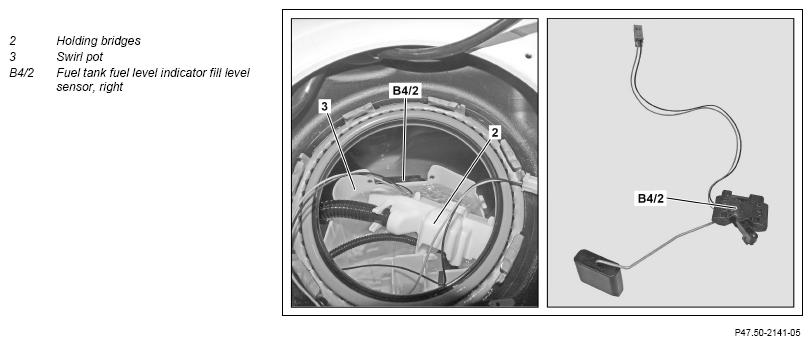

| 3 | Unclip holding clamp (2) at swirl pot (3) and place with clipped in lines to one side. | ||
| 4 | Unclip right fuel tank fuel level indicator fill level sensor (B4/2) at swirl pot (3) and remove. | ||
| 5 | Install in the reverse order. |
