Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998GR
MODEL 166 up to model year 2016

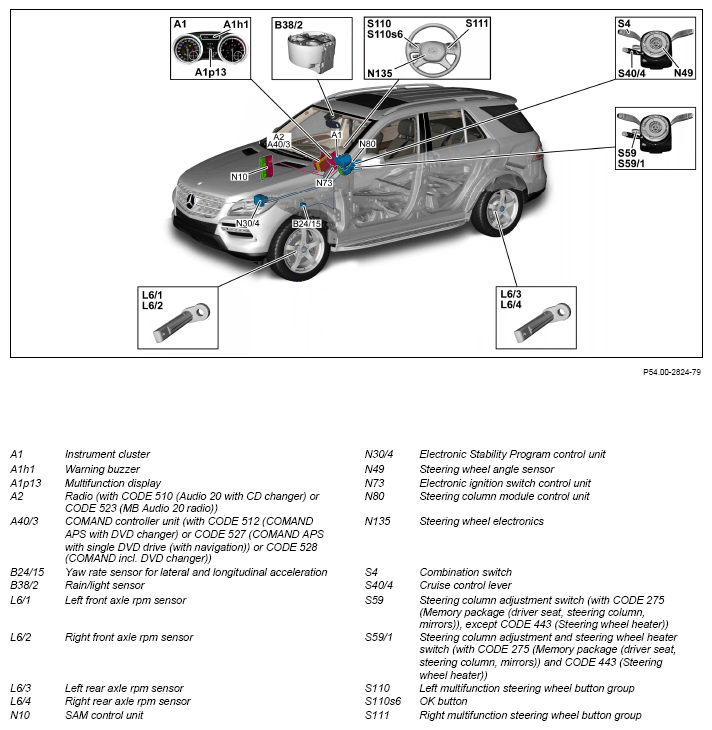

Attention assistance system, shown on model 166.0

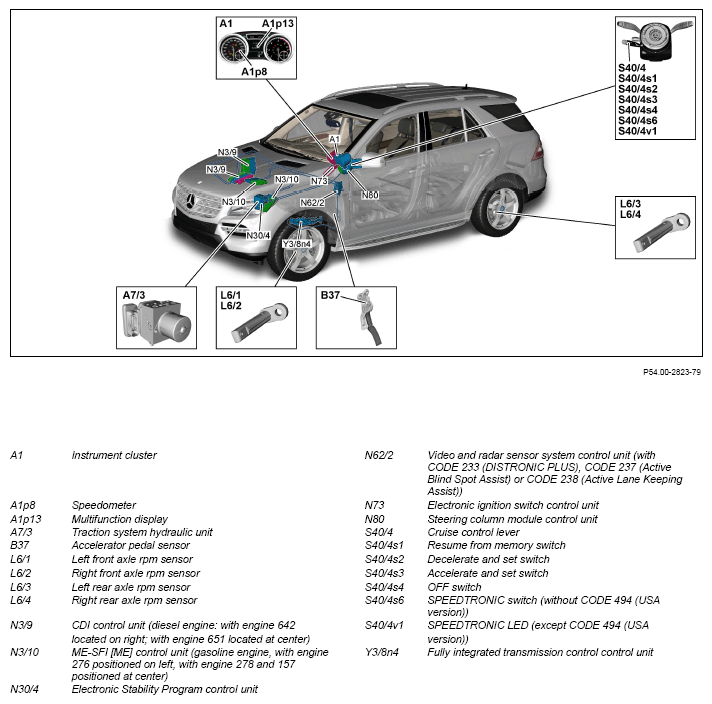

CRUISE CONTROL, shown on model 166.0

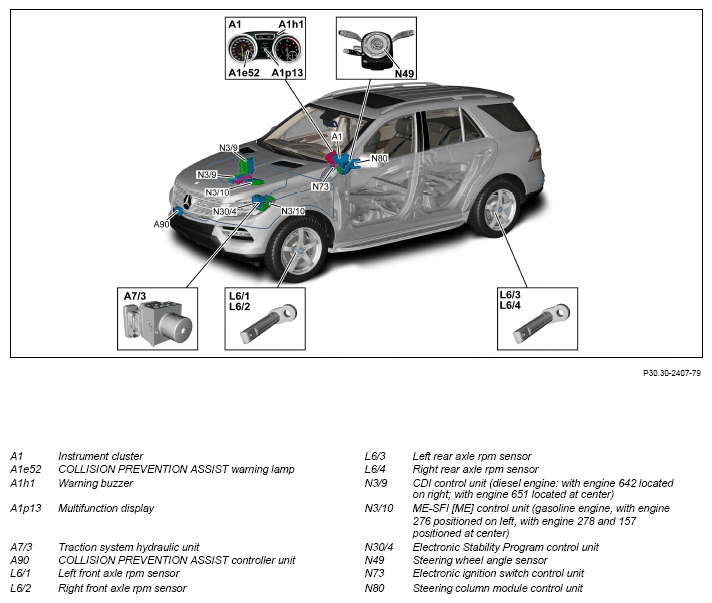

COLLISION PREVENTION ASSIST (with CODE 252 (COLLISION PREVENTION ASSIST)), shown on model 166.0

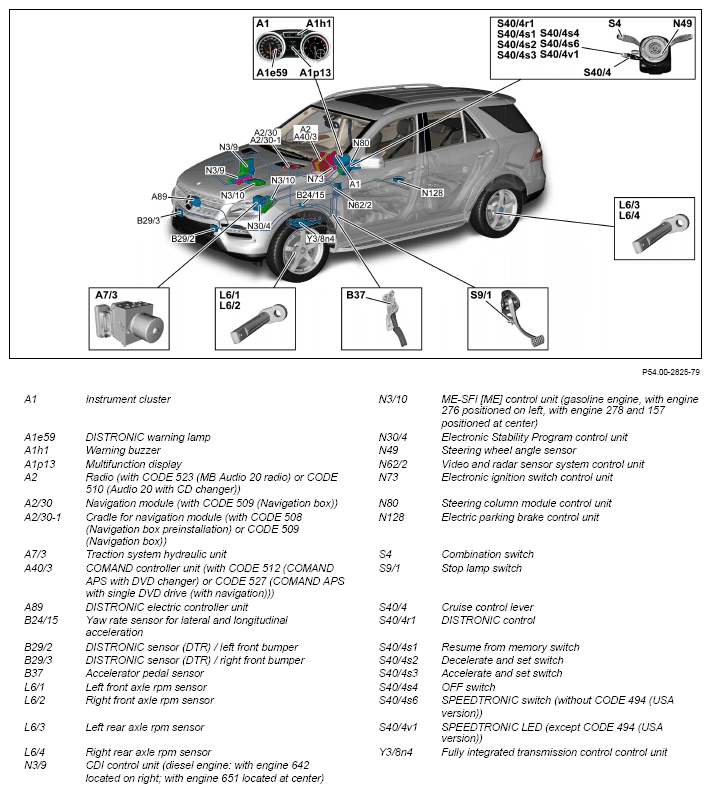

DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE® brake (with CODE 233 (DISTRONIC PLUS)), shown on model 166.0

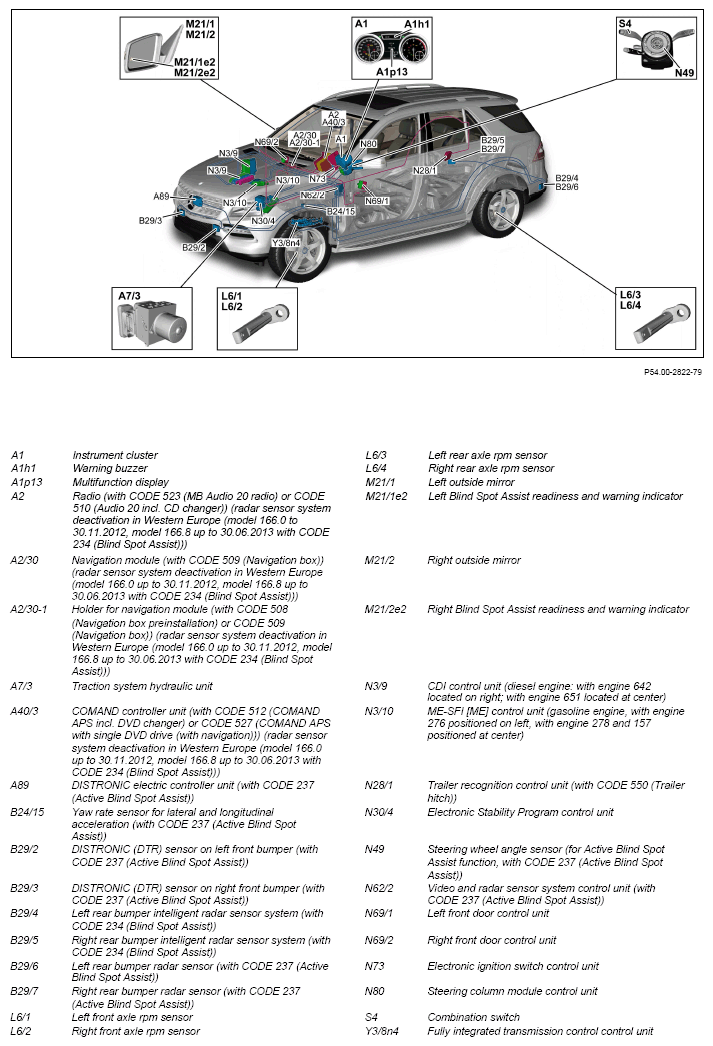

Blind Spot Assist (with CODE 234 (Blind Spot Assist) or CODE 237 (Active Blind Spot Assist)), shown on model 166.0

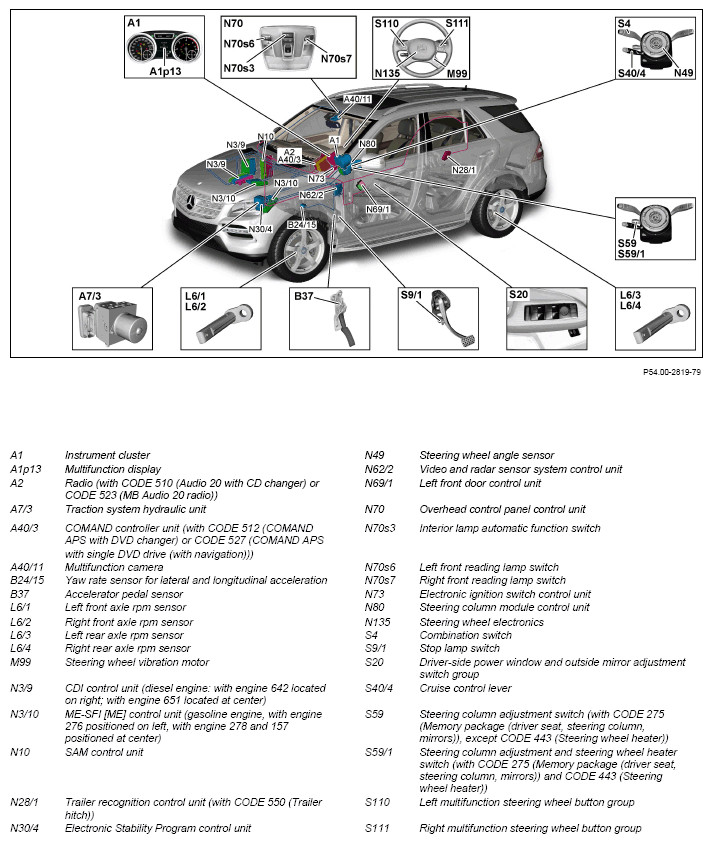

Active Lane Keeping Assist (with CODE 238 (ACTIVE LANE KEEPING ASSIST)); show on model 166.0

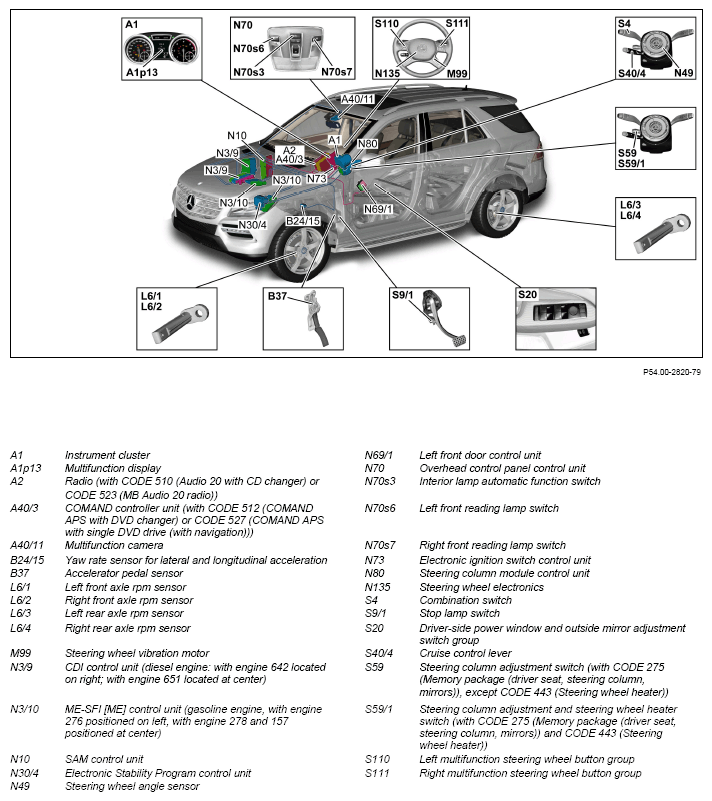

Lane Keeping Assist (with CODE 476 (Lane Keeping Assist)), shown on model 166.0

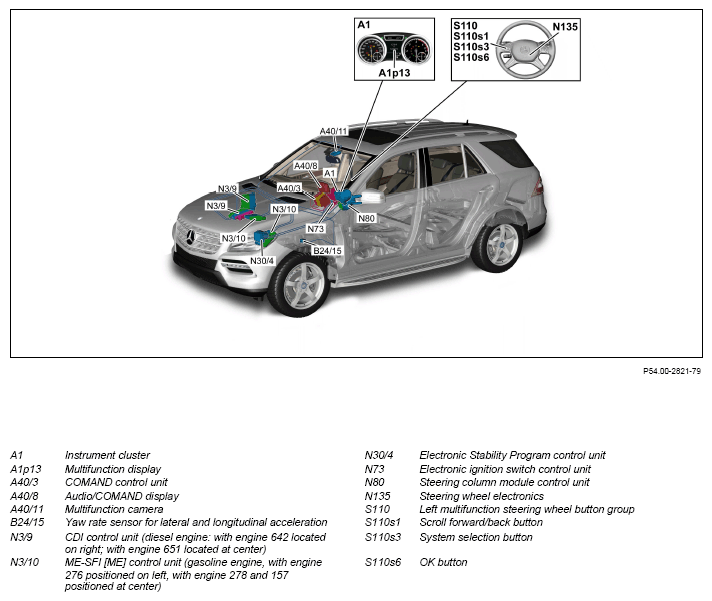

Speed Limit Assist (with CODE 513 (Speed Limit Assist)), shown on model 166.0

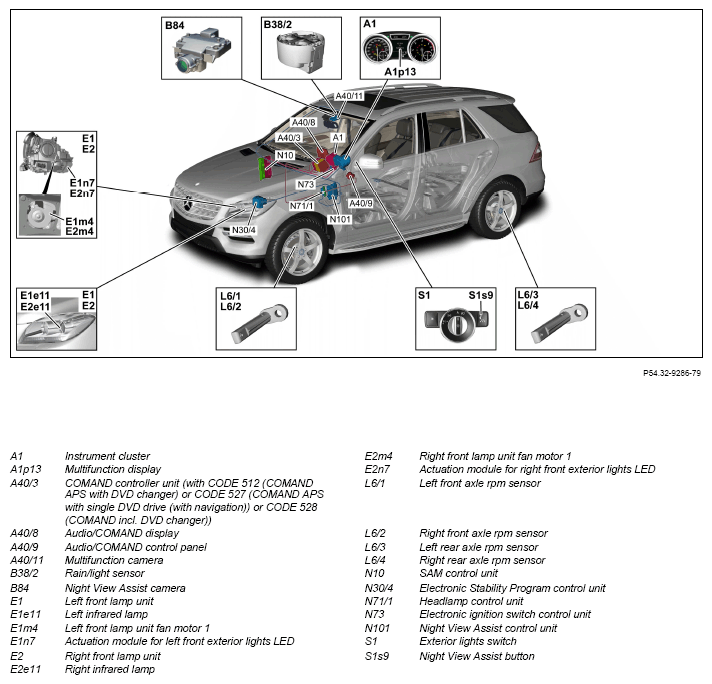

Night View Assist (with CODE 610 (Night View Assist)), shown on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for the radio | Model 166 up to model year 2016 with code 510 (Audio 20 CD with 6-disc CD changer) Model 166 up to model year 2016 with code 523 (Audio 20 CD) A2 |
GF82.60-P-3122GRA | |
| Cradle for navigation module, component description | Model 166 up to model year 2016 with code 508 (Navigation box preinstallation) with code 509 (Navigation box) A2/30-1, A2/30 | GF82.85-P-3137GR | |
| Component description for COMAND controller unit | Model 166 up to model year 2016 with code 512 (COMAND APS with DVD changer) Model 166 up to model year 2016 with code 527 (COMAND APS with single DVD drive (with navigation)) Model 166 up to model year 2016 with code 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GR | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GR | |
| Component description for multifunction camera | Model 166 up to model year 2016 with code 238 (Active lane keeping Assist) Model 166 up to model year 2016 with code 476 (Lane keeping assist) Model 166 up to model year 2016 with code 513 (Speed Limit Assist) Model 166 up to model year 2016 with code 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300GR | |
| Component description for DISTRONIC electric controller unit | Model 166 up to model year 2016 with code 233 (DISTRONIC PLUS) Model 166 up to model year 2016 with code 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213GR | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 166 up to model year 2016 with code 252 (COLLISION PREVENTION ASSIST) A90 | GF30.30-P-3214GR | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082GR | |
| Component description for bumper radar sensors | Model 166 up to model year 2016 with code 233 (DISTRONIC PLUS) Model 166 up to model year 2016 with code 237 (Active Blind Spot Assist) B29/2, B29/3, B29/6, B29/7 |
GF30.30-P-3302GR | |
| Component description for intelligent radar sensor control unit | Model 166 up to model year 2016 with code 234 (Blind Spot Monitoring) B29/4, B29/5 | GF30.30-P-3305GR | |
| Component description for CDI control unit | Model 166 with engine 642.8 up to model year 2016 N3/9 | GF07.16-P-6000OGR | |
| Model 166 with engine 651.9 up to 2/28/13 up to model year 2016 N3/9 | GF07.16-P-6000OLG | ||
| Model 166 with engine 651.9 as of 3/1/13 up to model year 2016 N3/9 | GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | Model 166 with engine 276.8 up to model year 2016 N3/10 | GF07.61-P-6000MMU | |
| Model 166 with engine 276.9 up to model year 2016 N3/10 | GF07.61-P-6000MMG | ||
| Model 166 with engine 157.9, 278.9 up to model year 2016 N3/10 | GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for trailer recognition control unit | Model 166 up to model year 2016 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for video and radar sensor system control unit | Model 166 up to model year 2016 with code 233 (DISTRONIC PLUS) Model 166 up to model year 2016 with code 237 (Active Blind Spot Assist) Model 166 up to model year 2016 with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GR | |
| Headlamp control unit, component description | Model 166 up to model year 2016 with code 615 (Bi-xenon headlamps with active light function) Model 166 up to model year 2016 with code 621 (Intelligent Light System (left-hand traffic)) Model 166 up to model year 2016 with code 622 (Intelligent Light System) N71/1 |
GF82.10-P-2020GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Night View Assist control unit, component description | Model 166 up to model year 2016 with code 610 (Night view assist) N101 | GF54.30-P-6200GR | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR | |
| Component description for fully integrated transmission control unit | Model 166 with transmission 722.9 up to model year 2016 Y3/8n4 | GF27.60-P-5165AHA | |
| Table of contents for function description of driver assistance systems | GF54.00-P-0998GR |
