Overview Of System Components For Power Windows - GF72.29-P-9993GN

MODEL 166 as of model year 2016

MODEL 292

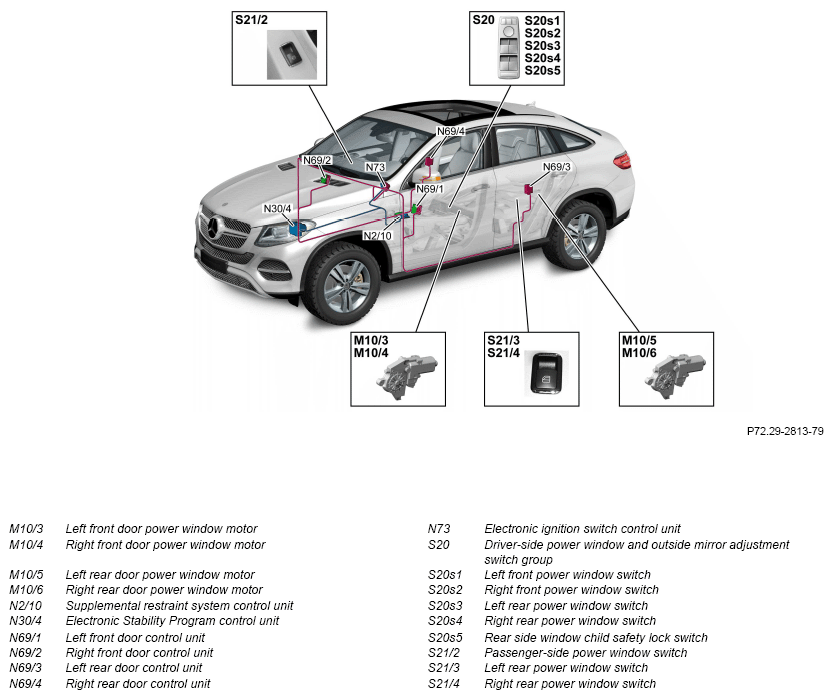

Power window, shown on model 292

G11969877

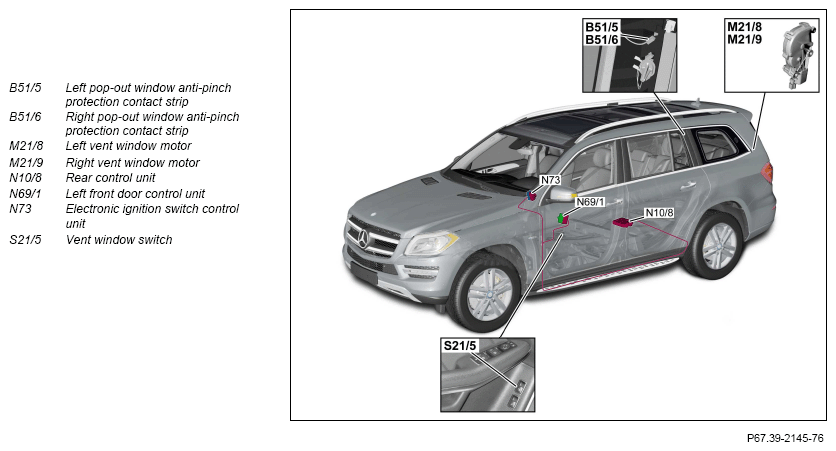

Electric pop-out window (model 166.8 with CODE 413 (Panoramic sliding roof))

G11969878

	Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080GN
	Rear control unit, component description	N10/8	GF54.21-P-4134GN
	Component description for Electronic Stability Program control unit	MODEL 166 (except 166.063) as of model year 2016	GF42.45-P-5119GN
		MODEL 292 N30/4 MODEL 166.063 as of model year 2016 N30/4	GF42.45-P-5119GRH
	Component description for left front door control unit	N69/1	GF72.29-P-6001GN
	Component description for right front door control unit	N69/2	GF72.29-P-6009GN
	Component description for rear door control unit	N69/3, N69/4	GF72.29-P-6021GN
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GN
	Table of contents for function description of power windows		GF72.29-P-0997GN
