Remove/Install Fuel Pressure Sensor - AR07.04-P-0030OLD
ENGINE 651 in MODEL 166, 205, 253
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 |
Detach exhaust gas recirculation cooler and place with attached coolant lines to one side |
Engine 651 in model 166 | AR14.20-P-7665CD |
| Engine 651 in model 205, 253 | AR14.20-P-7665OLD | ||

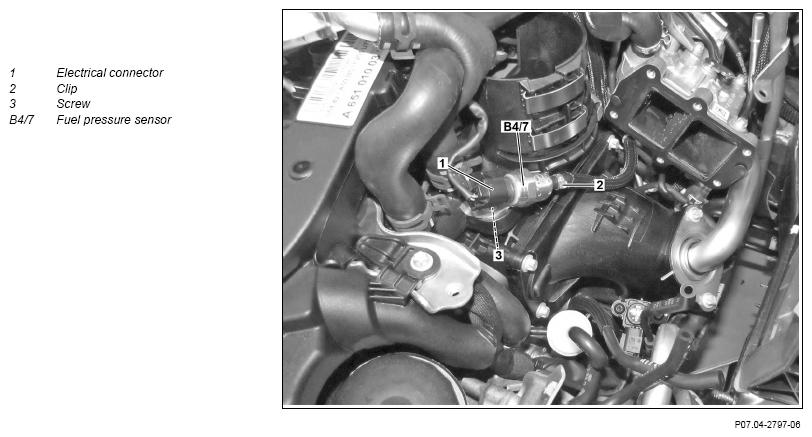

| 2 | Unlock and unplug electrical connection (1) on fuel pressure sensor (B4/7) | ||
| 3 | Unfasten clamp (2) and detach fuel hose from fuel pressure sensor (B4/7) | ||
| 4 | Remove screw/bolt (3) and take off fuel pressure sensor (B4/7) | *BA20.10-P-1006-01X | |
| 5 | Install in the reverse order | ||
| 6 | Connect diagnostic system, read out fault memory and delete if necessary | ||
| Engine 651 in model 166 | AD00.00-P-2000-04A | ||
| Engine 651 in model 205, 253 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run and check fuel system for leaktightness |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA20.10-P-1006-01X | Screw/bolt, water outlet to charge air distributor | Nm | 9 |
