Remove/Install Pressure Transducer For Boost Pressure Control - AR07.17-P-7002GQC
ENGINE 276.8 in MODEL 166, 251, 292

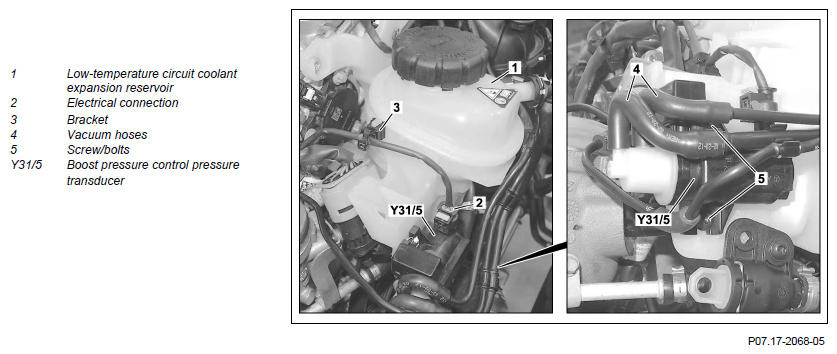

Shown on engine 276.8 in model 166
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right engine air intake duct upstream of left air filter | AR09.10-P-1150GQC | |
| 3 | Disconnect electrical connection (2) at boost pressure control pressure transducer (Y31/5) | ||
| 4 | Mark vacuum hose (4) relative to the respective connections on boost pressure control pressure transducer (Y31/5) | ||
| 5 | Detach vacuum hose (4) from boost pressure control pressure transducer (Y31/5) | ||
| 6 | Remove screw/bolts (5) and take out boost pressure control pressure transducer (Y31/5) upwards | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A |
