Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MMX
Engine 276.8 in model 166 (except 166.063)
as of model year 2016
Engine 276.8 in model 292

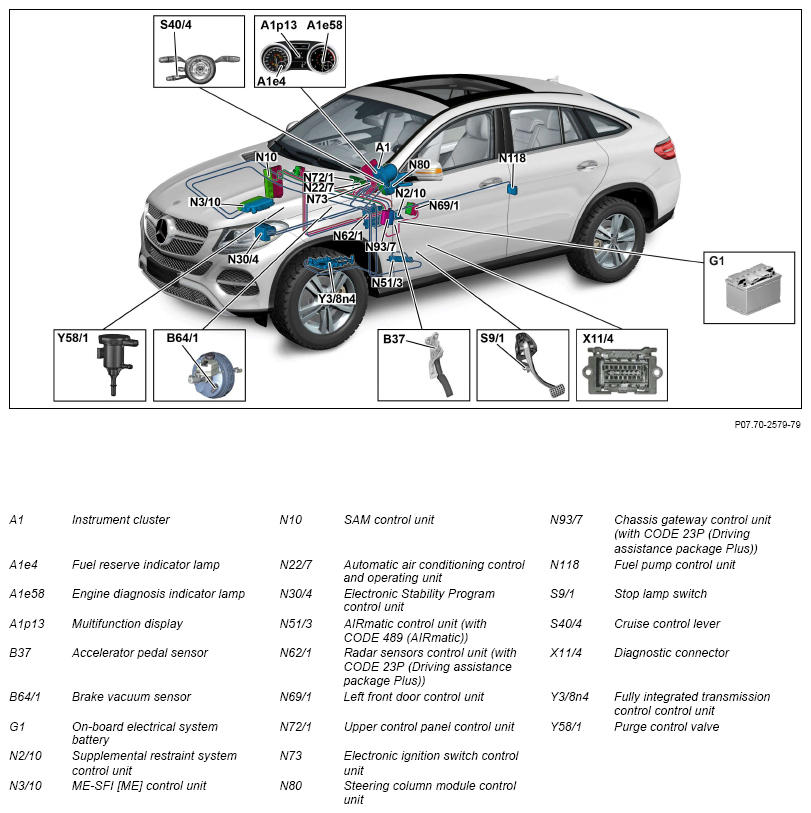

Shown on MODEL 292

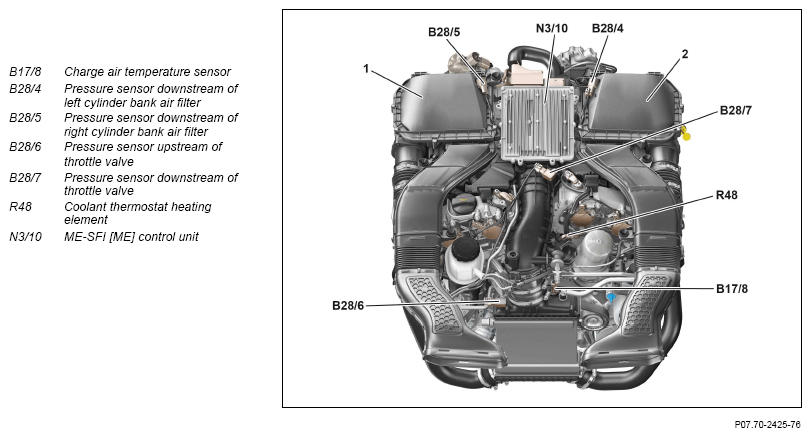

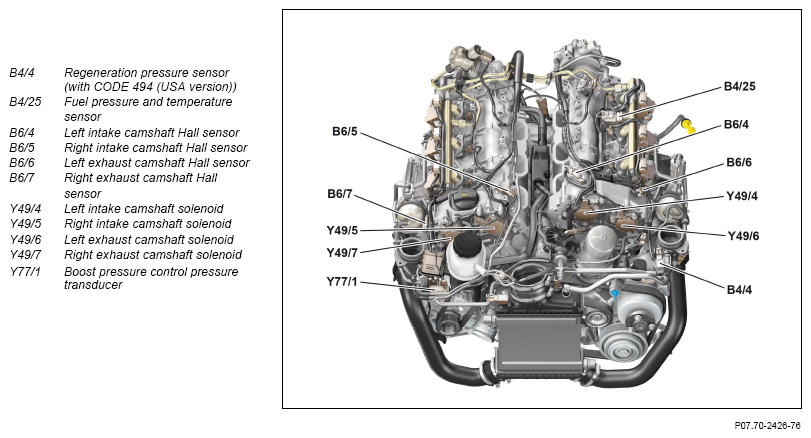

Shown: Engine from the top front

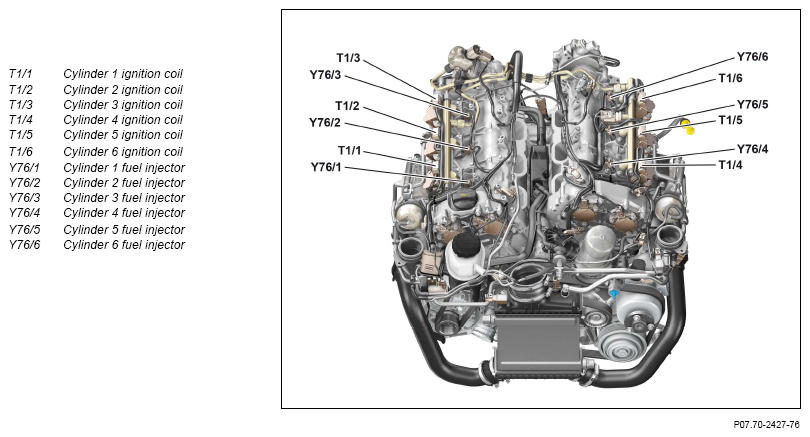

Shown: Engine from the top front
Shown: Engine from the top front

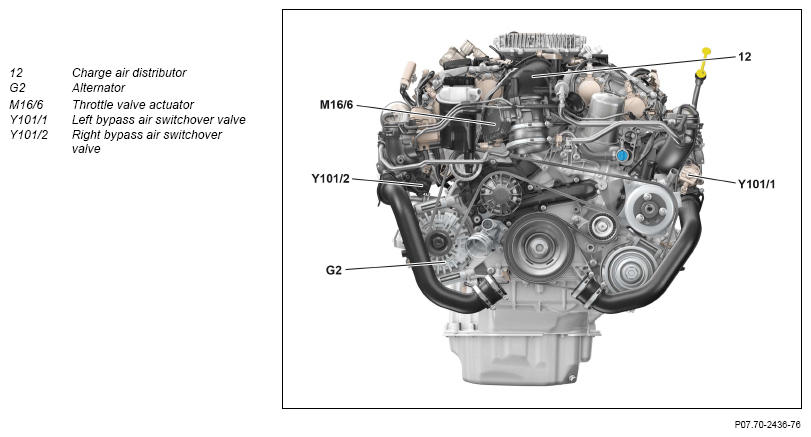

Shown: Engine from the front

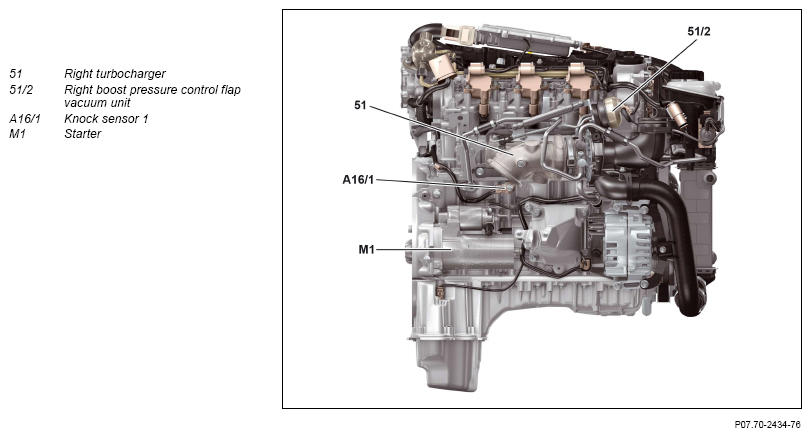

Shown: Engine from the right

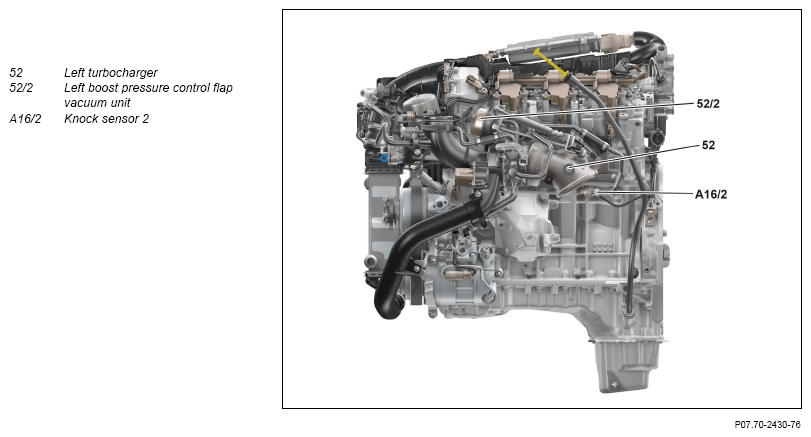

Shown: Engine from the left

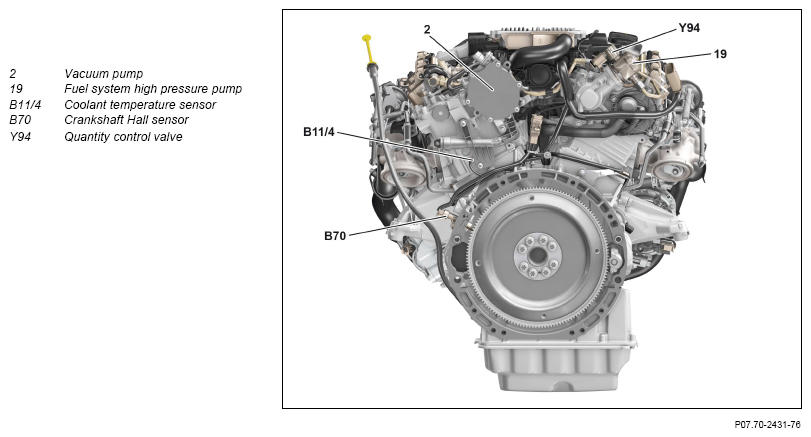

Shown in Engine from rear

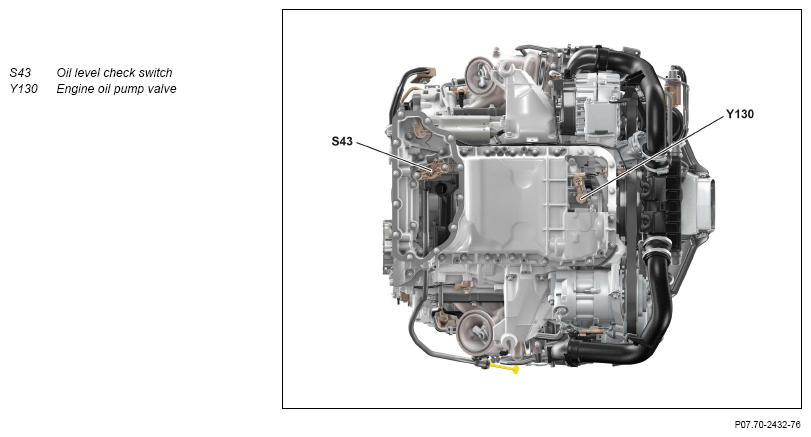

Shown: Engine from below

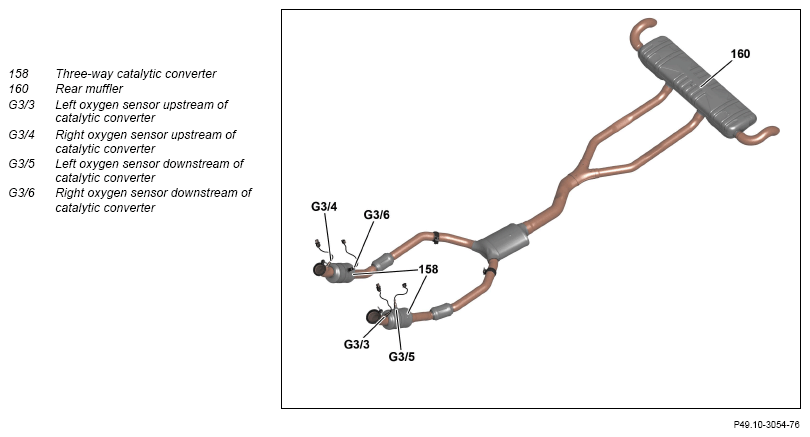

Shown: the exhaust system

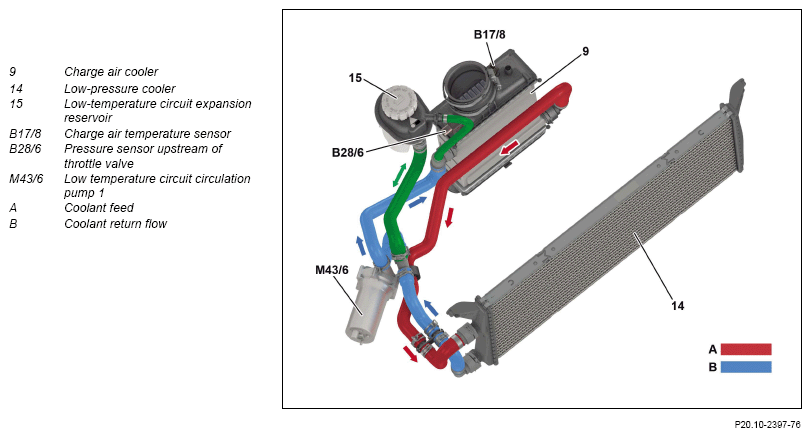

Shown: low-temperature circuit

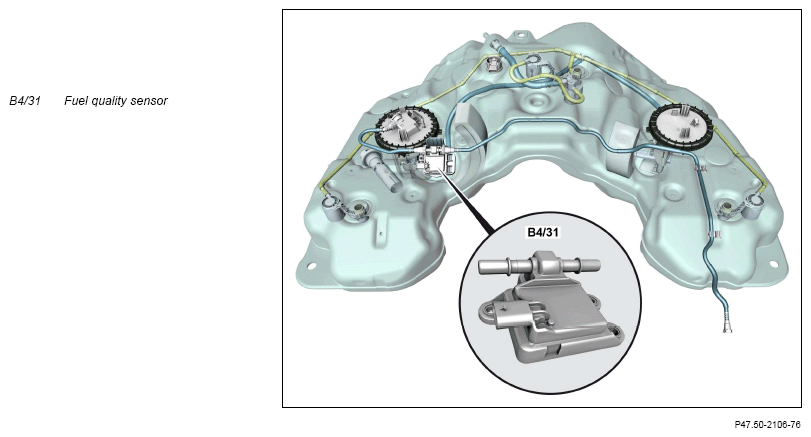

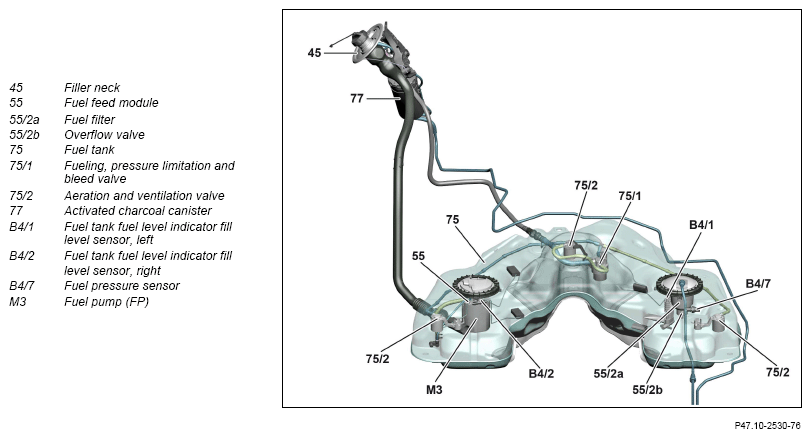

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with code 494 (USA version) or with code 929 (Engine for ethanol fuel))

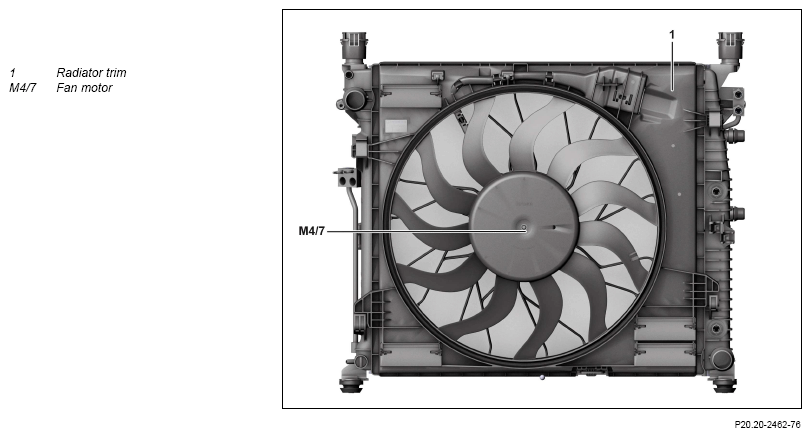

Shown: cooler from the rear

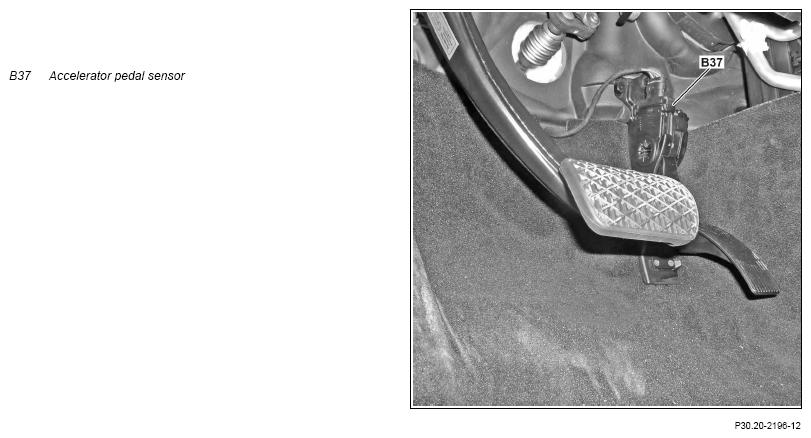

Shown on driver-side footwell

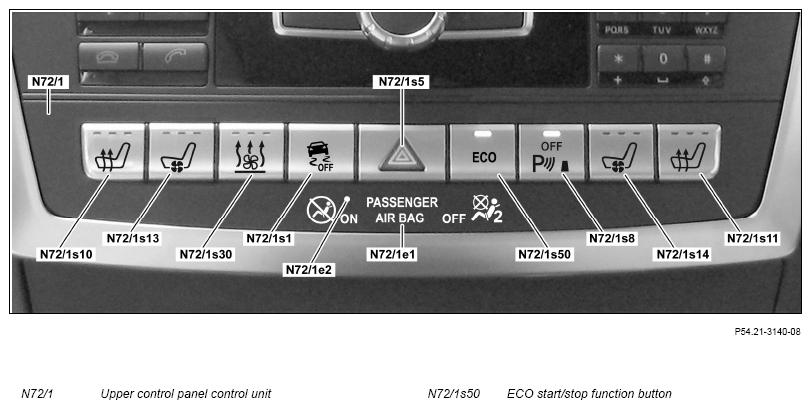

Shown: upper control panel, model 166

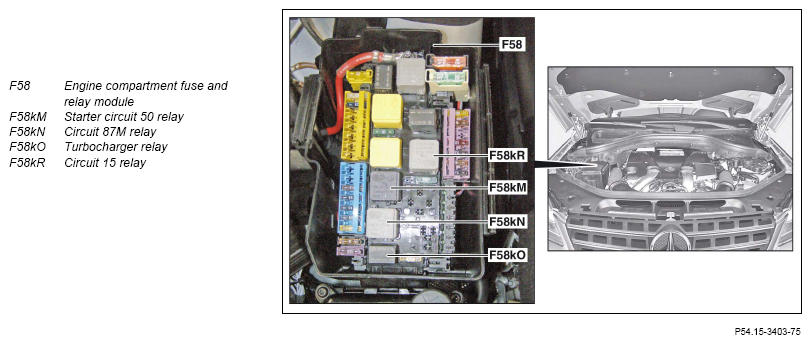

Shown: Engine compartment fuse and relay module, model 166
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMX | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GN | |
| AIRMATIC control unit, component description | Model 166 (except 166.063) with Engine 276.8 as of model year 2016 with code 489 (AIRMATIC) Model 292 with Engine 276.8 with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Component description for radar sensors control unit | Model 166 (except 166.063) with Engine 276.8 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with Engine 276.8 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for chassis gateway control unit | Model 166 (except 166.063) with Engine 276.8 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with Engine 276.8 with code 23P (Driving Assistance package) N93/7 |
GF54.21-P-1010GN | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNG | |
| Component description for fully integrated transmission control unit | Engine 276.8 in model 166 (except 166.063) with transmission 725.0 as of model year 2016 Y38n4 |
GF27.60-P-5165ANF | |
| Transmission 725.0 in model 292 with Engine 276.8 Y38n4 |
GF27.60-P-5165ANJ | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNG |
