(Overview Of System Components For Common Rail Diesel Injection (CDI) - GF07.16-P-9997OGR)
Engine 642.8 in MODEL 166
up to model year 2016

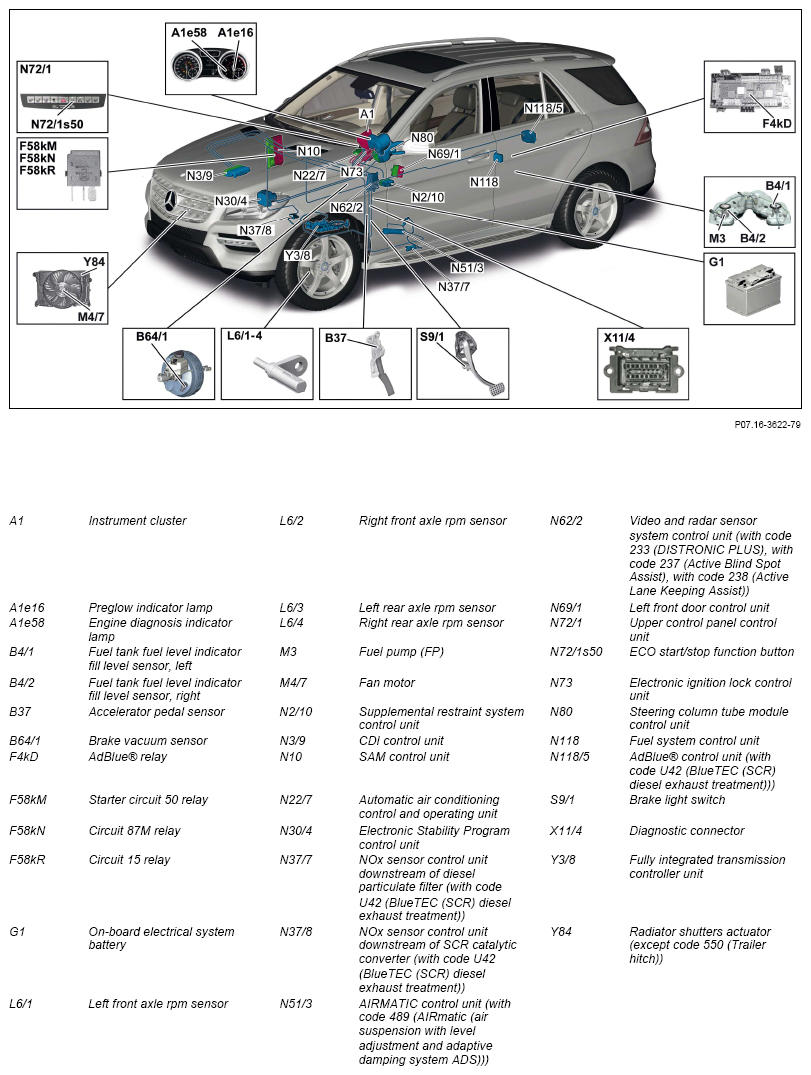

Shows model 166.0

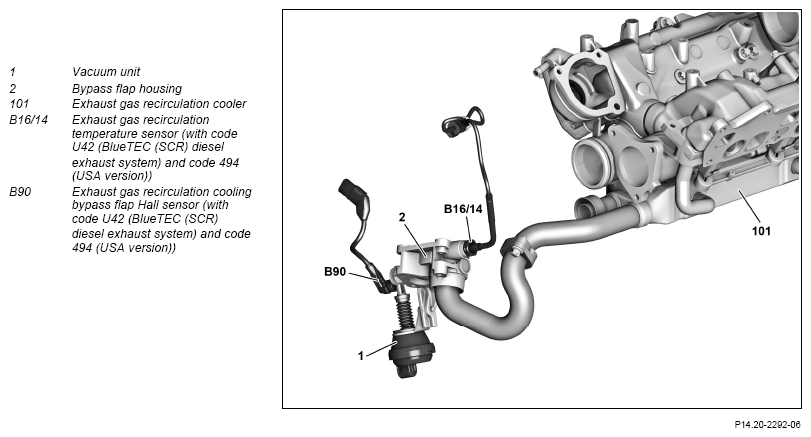

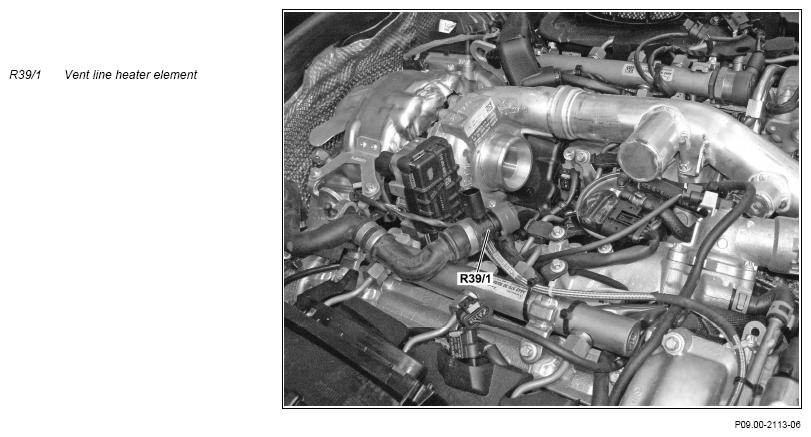

View of Engine from the rear right

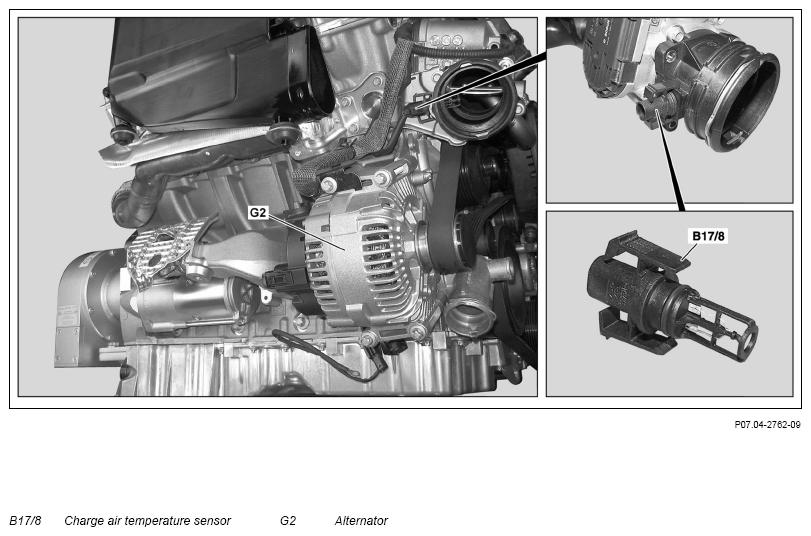

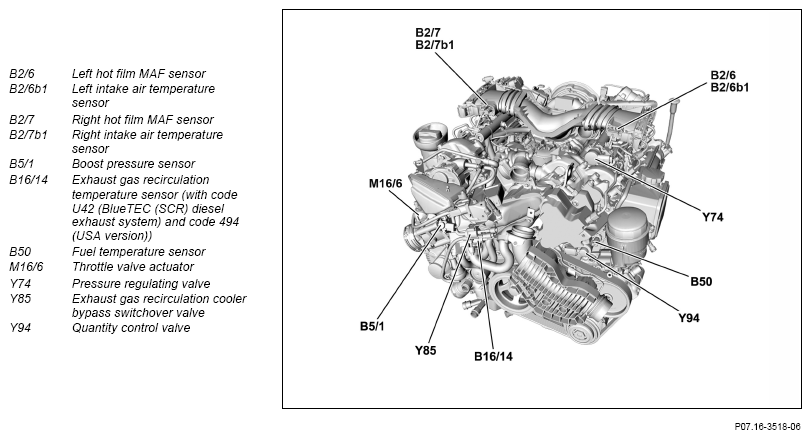

View of Engine from front left

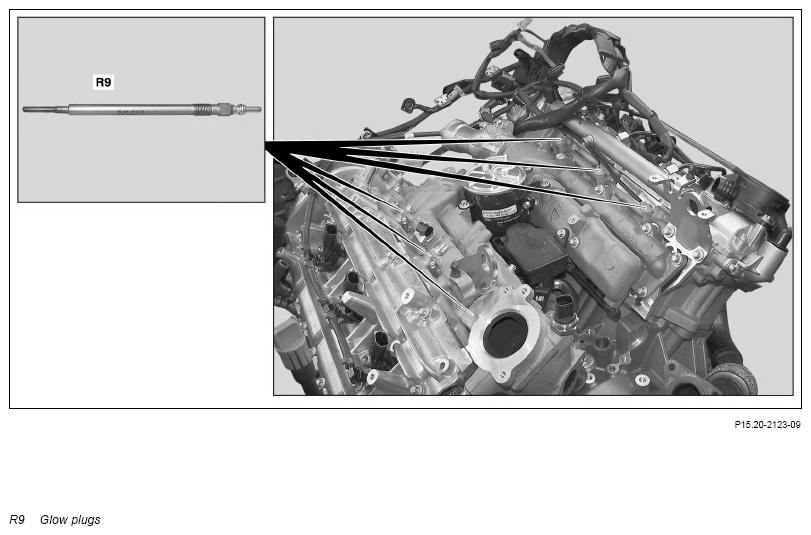

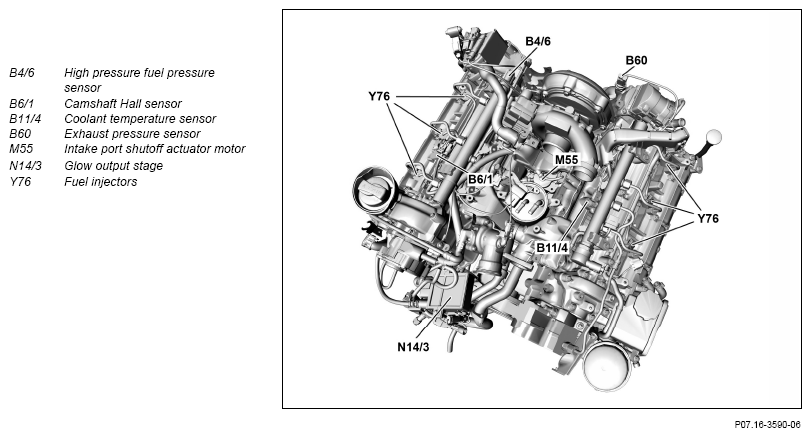

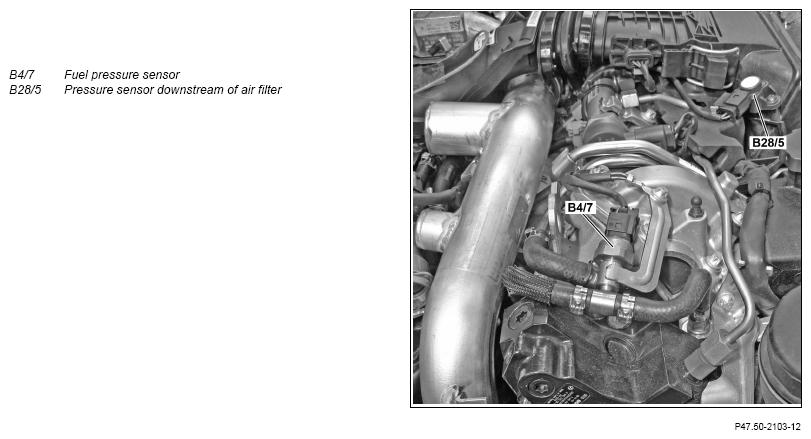

View of the Engine from above

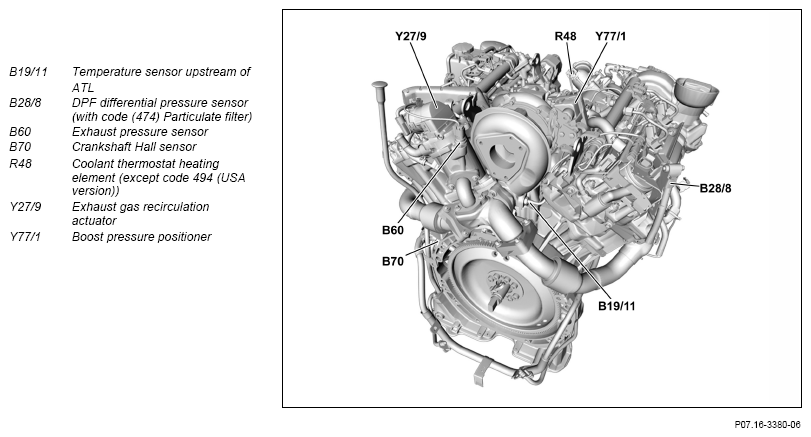

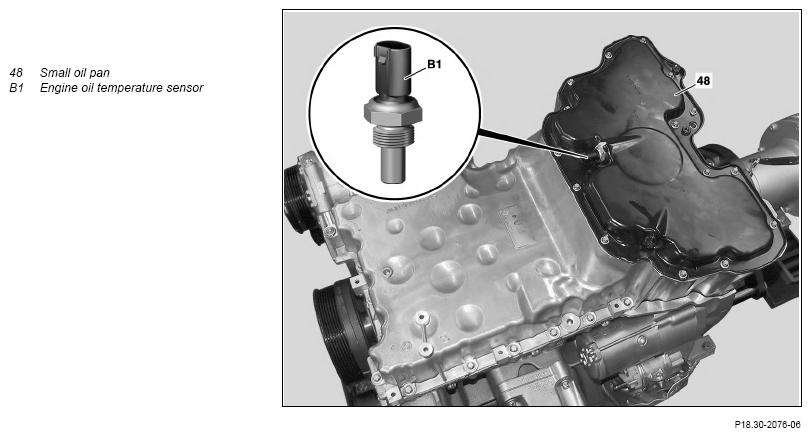

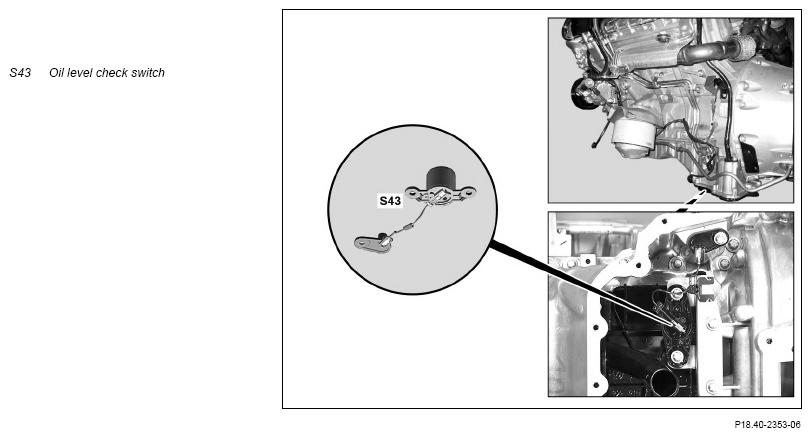

View of Engine from the below

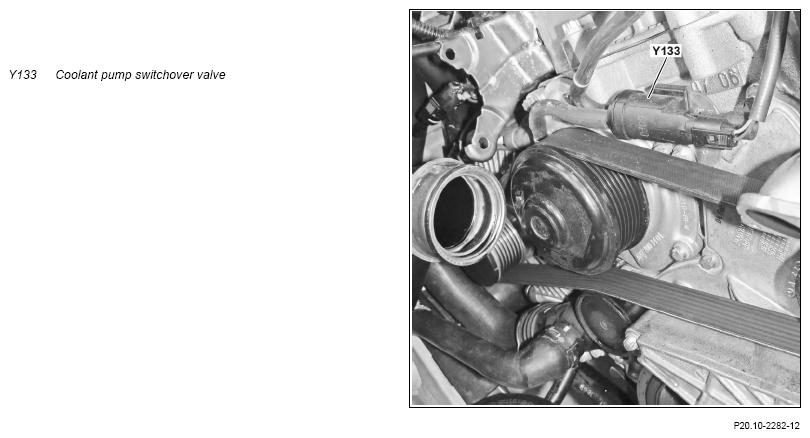

View of Engine from front right
View of Engine from front left
The left intake port shutoff Hall sensor (B96/1) (with code U42 (BlueTEC (SCR) diesel exhaust treatment) and code 494 (USA version)) is located on the left linkage of the intake port shutoff.

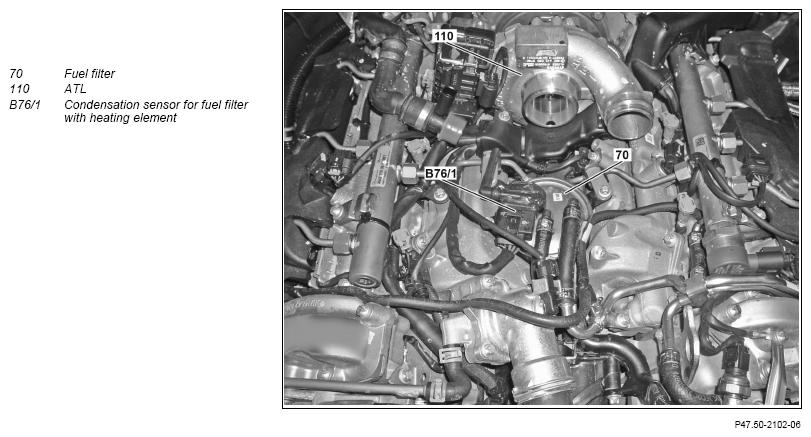

View of the Engine from above

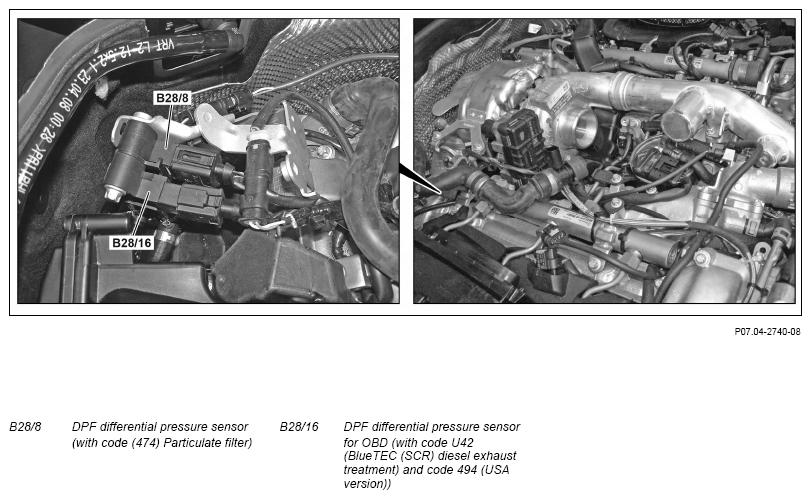

View of Engine from rear left

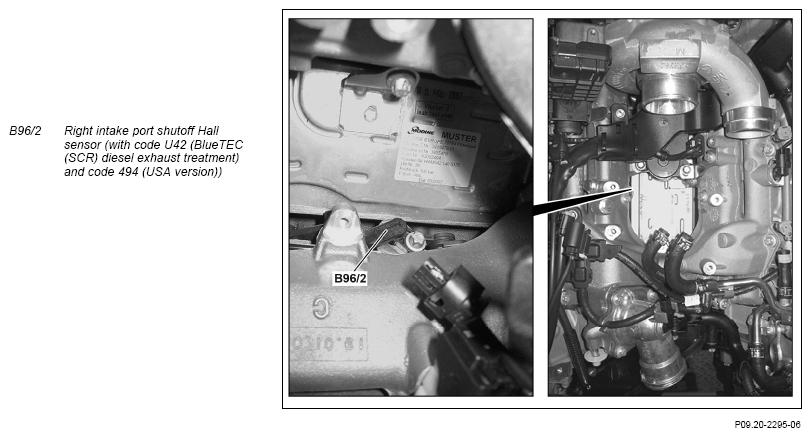

View of Engine from the right
View of Engine from rear left
View of Engine from the front
View of the Engine from above
View of Engine from the front
View of charge air distributor

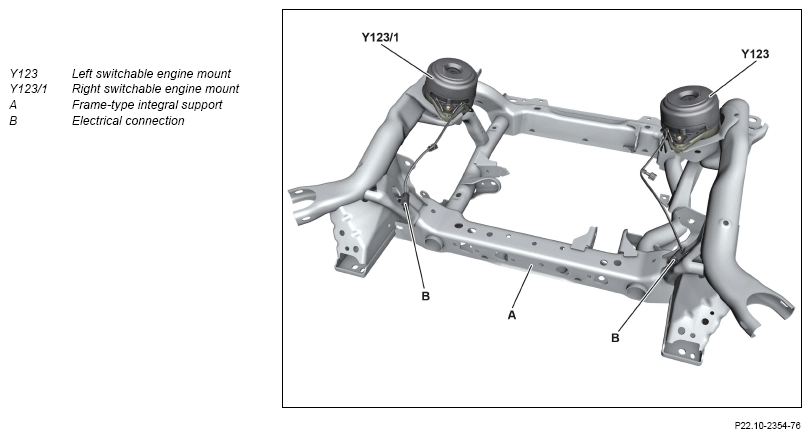

View of integral carrier from the front

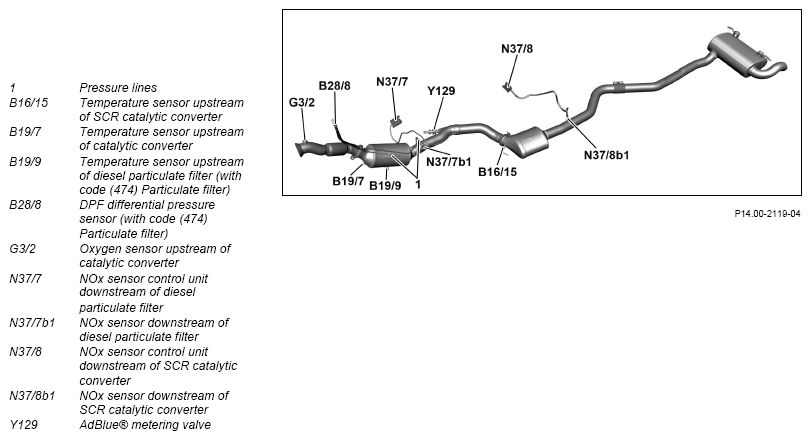

View of exhaust system with code (U42) BlueTec (SCR) diesel exhaust treatment

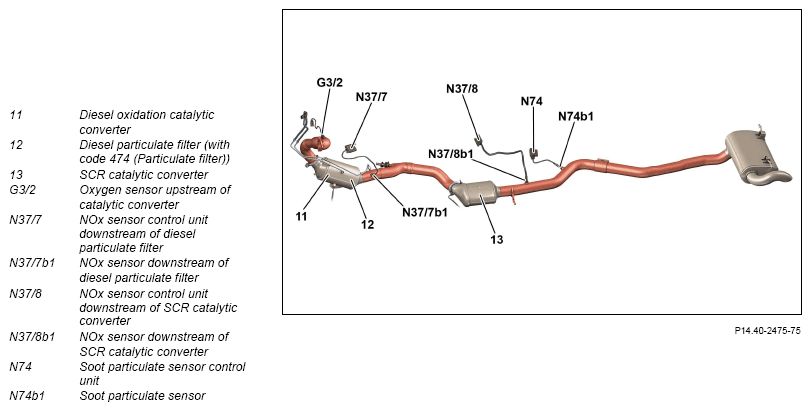

Illustration of exhaust system BR166 as of AJ12 (with code U42 (BlueTEC (SCR) diesel exhaust treatment) and code 494 (USA version))

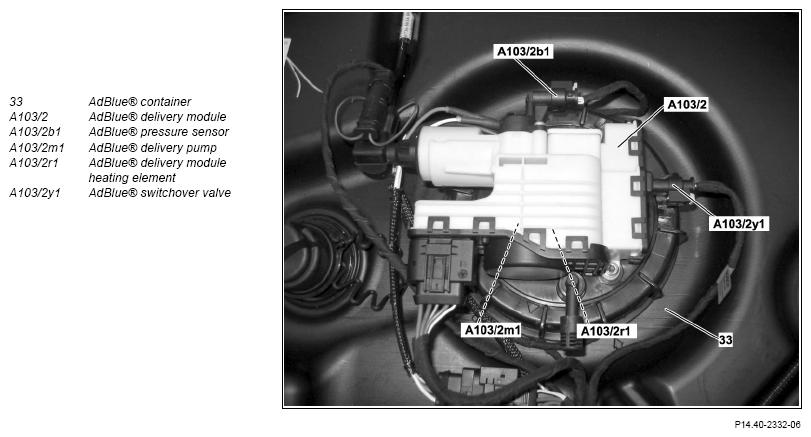

View of AdBlue® container (with code U42 (BlueTEC (SCR) diesel exhaust treatment))

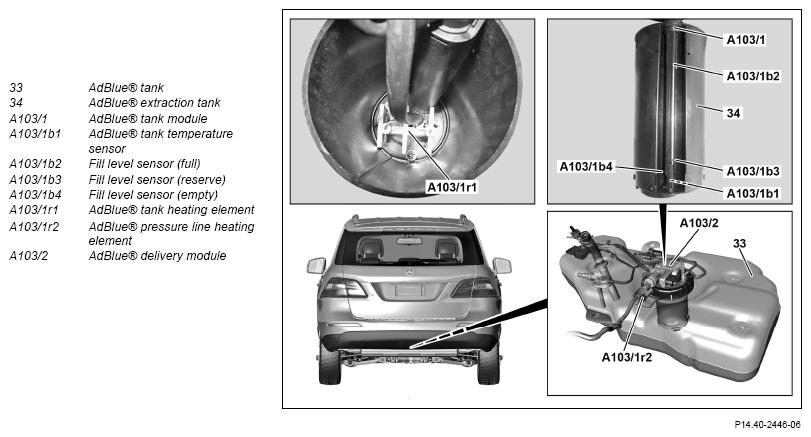

Illustration of AdBlue® tank (with code (U42) BlueTec (SCR) diesel exhaust treatment)
| Component description for CDI control unit | Engine 642.8 in MODEL 166 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| Component description for NOx sensor control unit | Engine 642.826 in MODEL 166 up to model year 2016 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N37/7, N37/8 |
GF14.40-P-3024OLG | |
| Component description for exhaust aftertreatment control unit | Engine 642.826 in MODEL 166 up to model year 2016 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N118/5 |
GF14.40-P-3030OLG | |
| Component description for fully integrated transmission control unit | TRANSMISSION 722.9 in MODEL 166 with Engine 642.8 up to model year 2016 Y38n4 |
GF27.60-P-5165AHA | |
| Component description for video and radar sensor system control unit | MODEL 166 with Engine 642.8 up to model year 2016 with CODE 233 (DISTRONIC PLUS) Model 166 with Engine 642.8 up to model year 2016 with CODE 237 (Active Blind Spot Assist) Model 166 with Engine 642.8 up to model year 2016 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| AIRmatic control unit, component description | MODEL 166 with Engine 642.8 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Component description for Electronic Stability Program control unit | MODEL 166 with Engine 642.8 up to model year 2016 N30/4 |
GF42.45-P-5119GR | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001OLG | |
| SAM control unit, component description | MODEL 166 with Engine 642.8 up to model year 2016 N10 |
GF54.21-P-4157GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for instrument cluster | MODEL 166 with Engine 642.8 up to model year 2016 A1 |
GF54.30-P-6000GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| Supplemental restraint system control unit, component description | MODEL 166 with Engine 642.8 up to model year 2016 N2/10 |
GF91.60-P-4080GR | |
| Table of contents for function description of common rail diesel injection (CDI) | GF07.16-P-0999OGR |
