(Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MMG)
Engine 157.9, 276.9, 278.9 in MODEL 166
up to model year 2016
Shown on model 166.0 with Engine 278

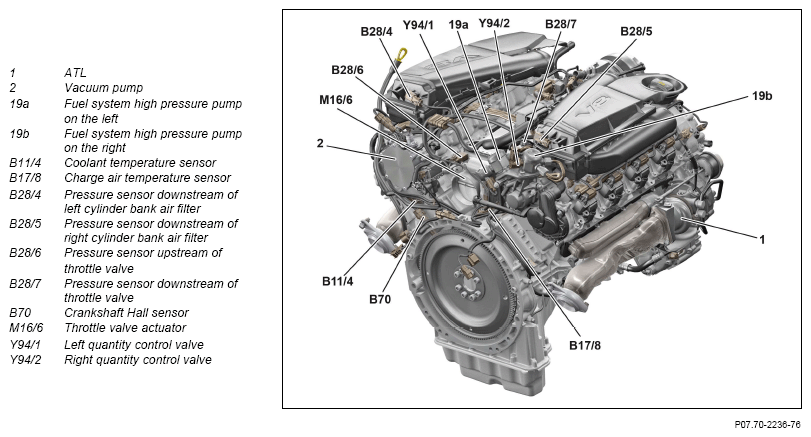

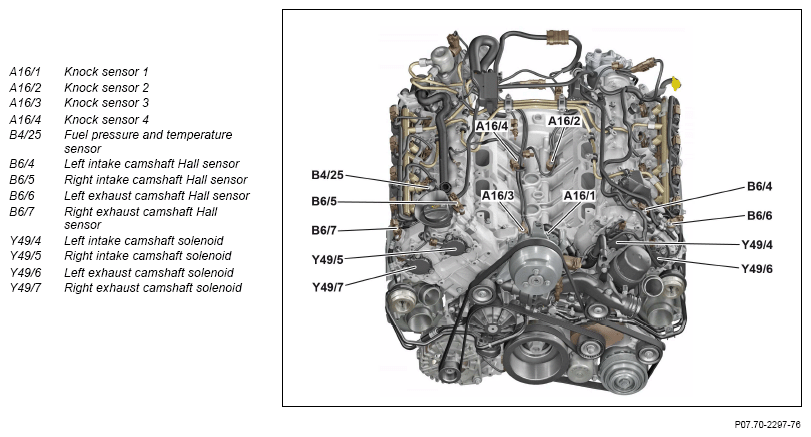

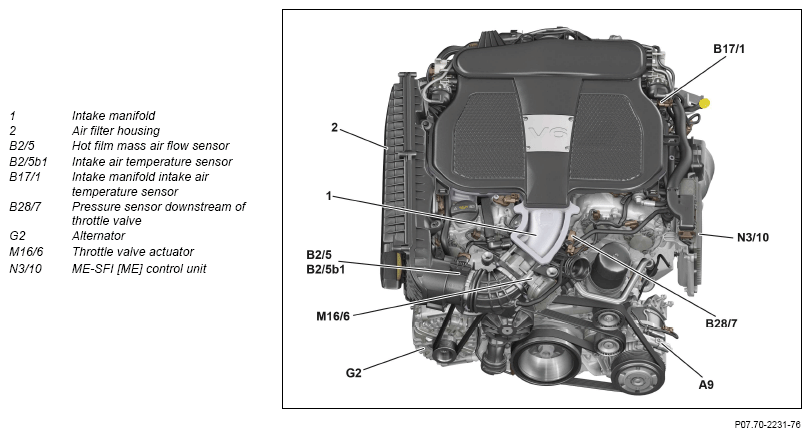

View of Engine 276.9 from top front (except code 920 (Gasoline direct injection with stratified charge) (except code 468 (ACTIVE CURVE SYSTEM))

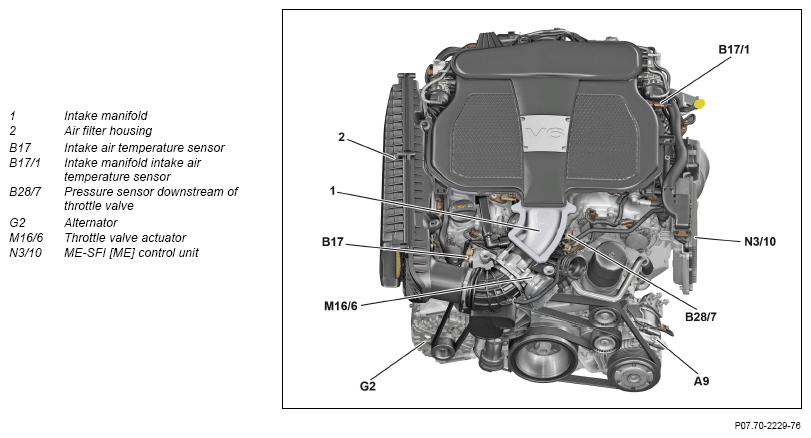

View of Engine 276.9 from top front (for code 920 (Gasoline direct injection with stratified charge) except code 468 (ACTIVE CURVE SYSTEM))

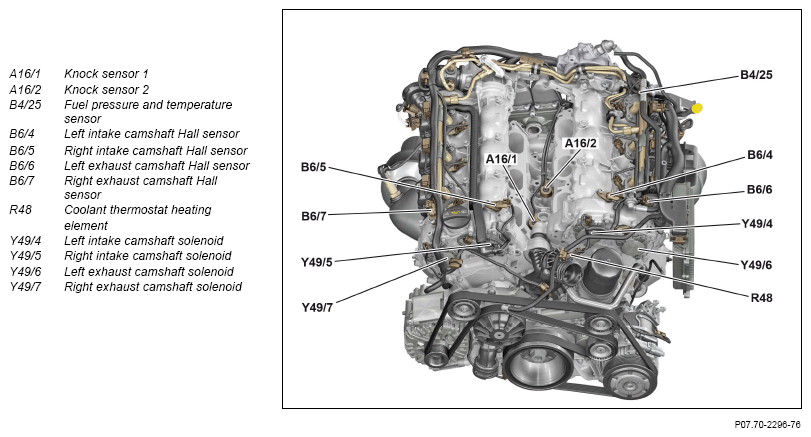

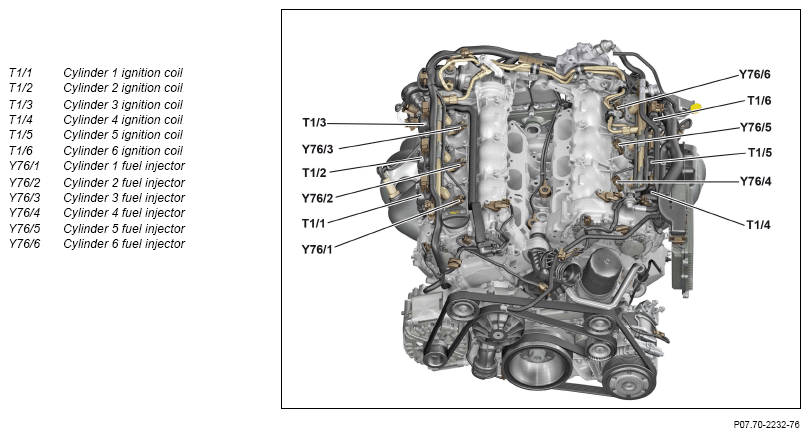

View of Engine 276.9 from top front
View of Engine 276.9 from top front

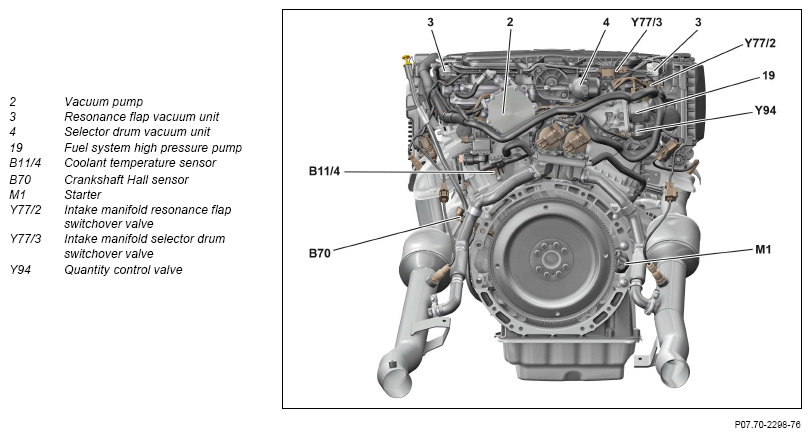

View of Engine 276.9 from rear (for code 920 (Gasoline direct injection with stratified charge))
View of Engine 276.9 from rear (for code 920 (Gasoline direct injection with stratified charge))

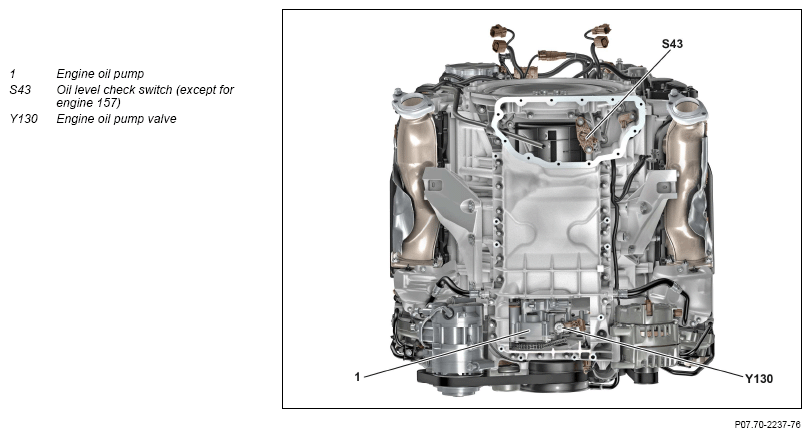

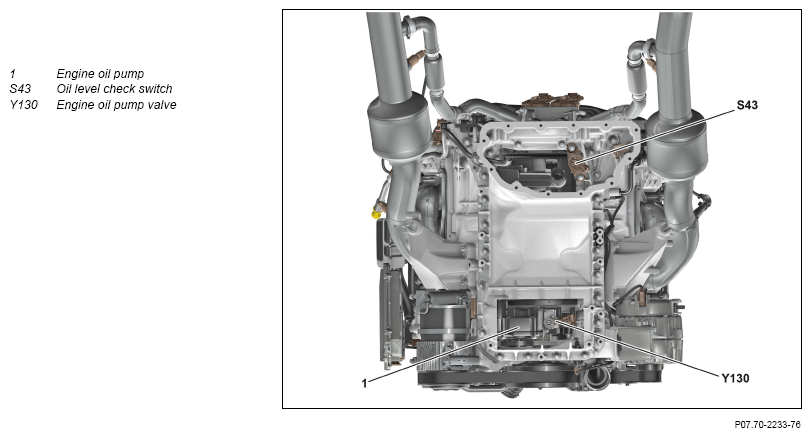

View of Engine 276.9 from below

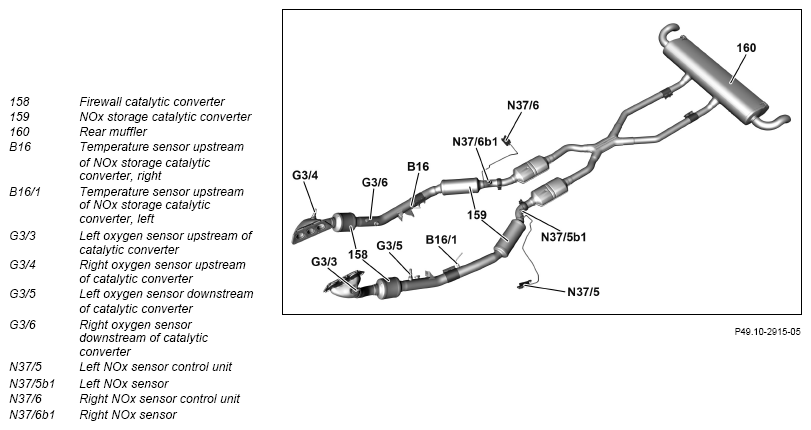

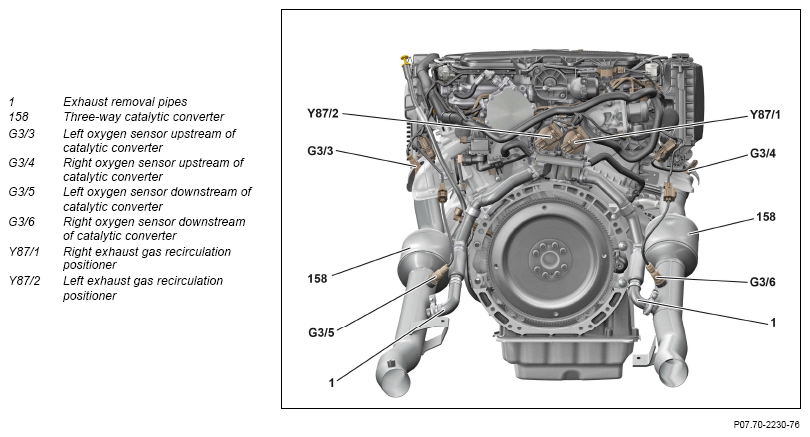

Exhaust system shown on Engine 276.9 (with code 920 (Gasoline direct injection with stratified charge))

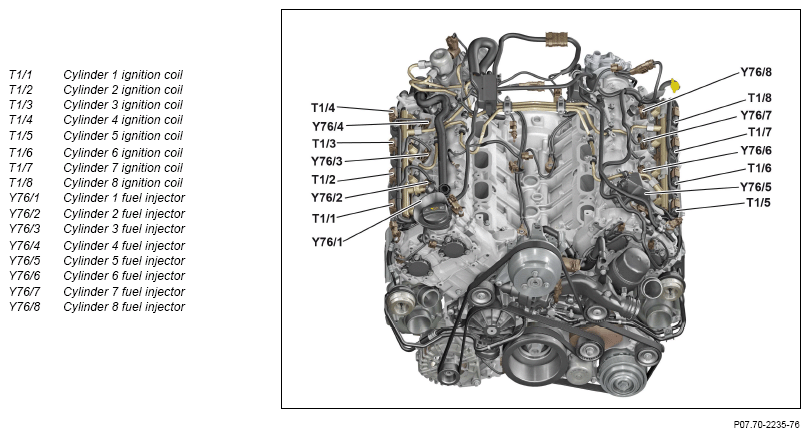

View of Engine 278.9 from top front

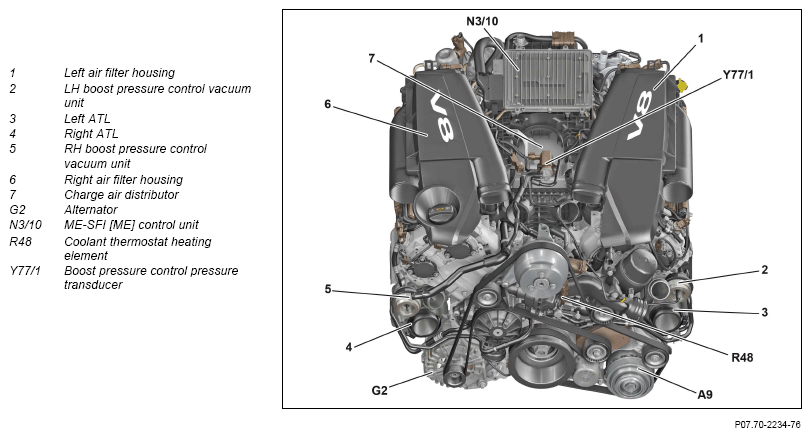

View of Engine 278.9 from top front
View of Engine 278.9 from top front
View of Engine 278.9 from rear right

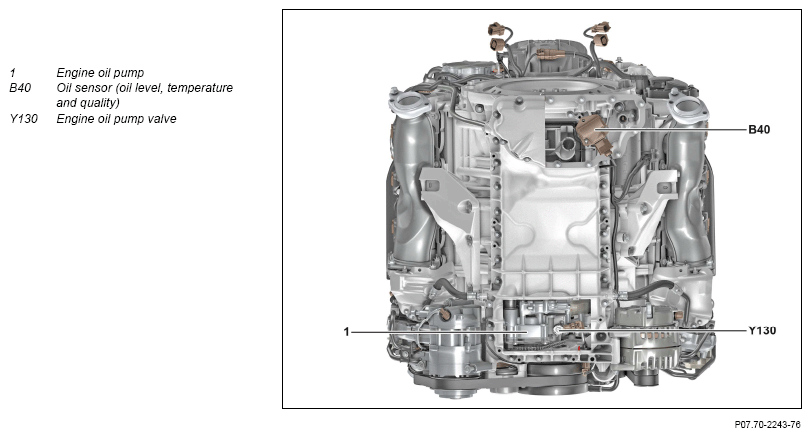

View of Engine 278.9 from below
View of Engine 157.9 from below

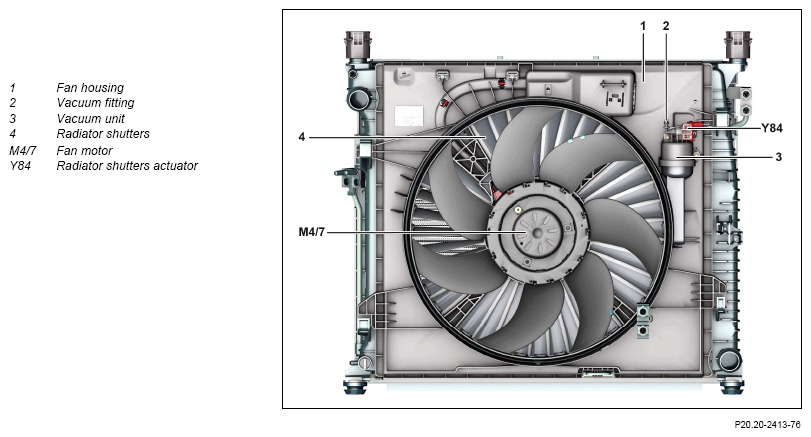

View of cooler from the rear (for Engine 276.9 with radiator shutters)

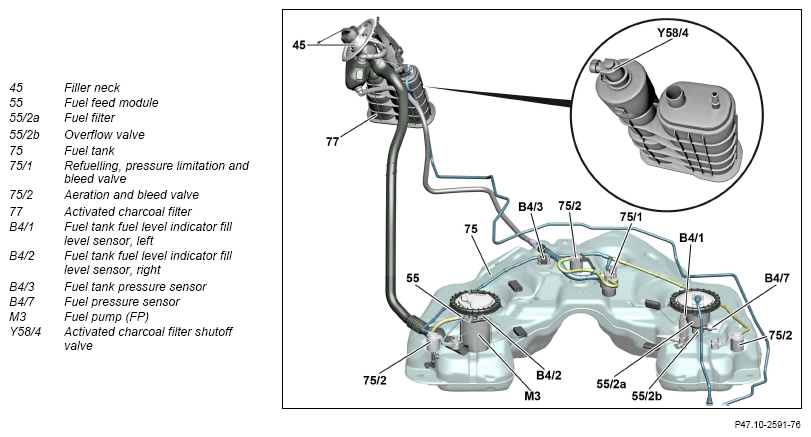

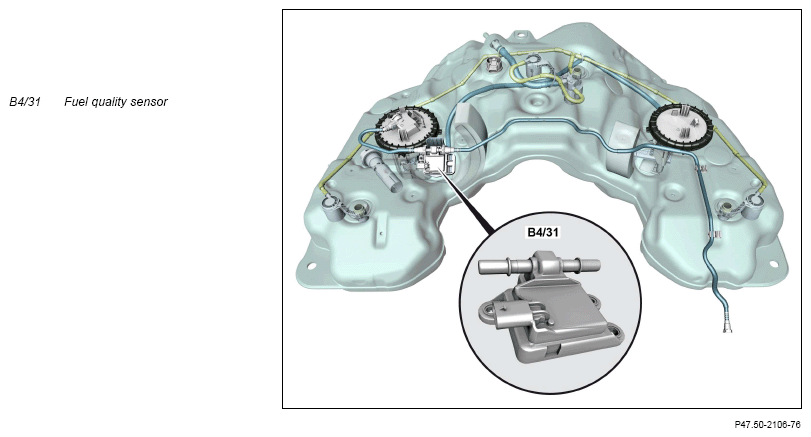

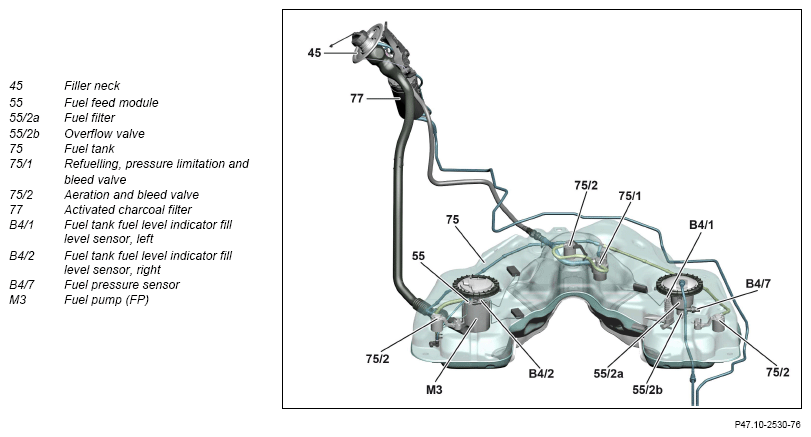

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with CODE 494 (USA version))
Phantom view of fuel tank (for code 494 (USA version)) (for code 929 (Engine for ethanol fuel))

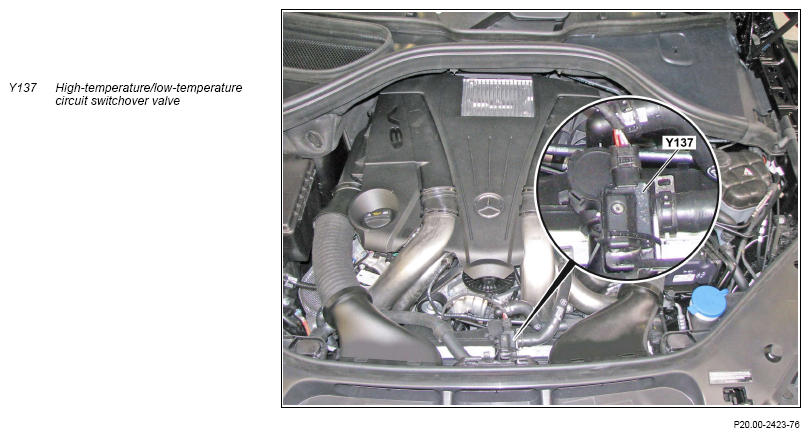

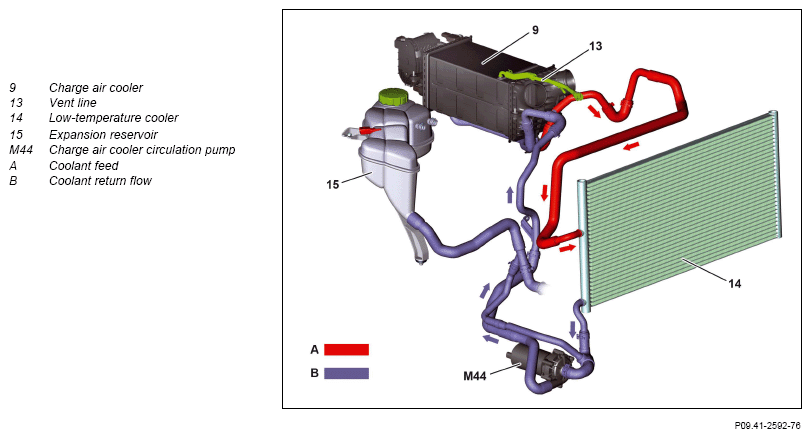

Shown on low-temperature circuit (with Engine 157.9, 278.9)

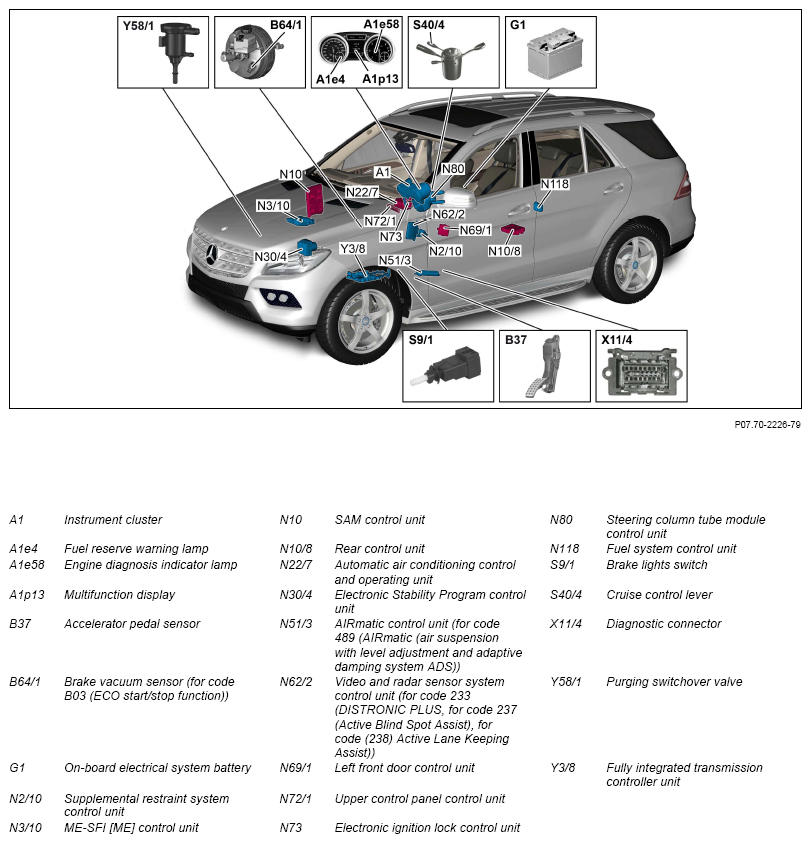

Shown on Engine compartment with Engine 278.9

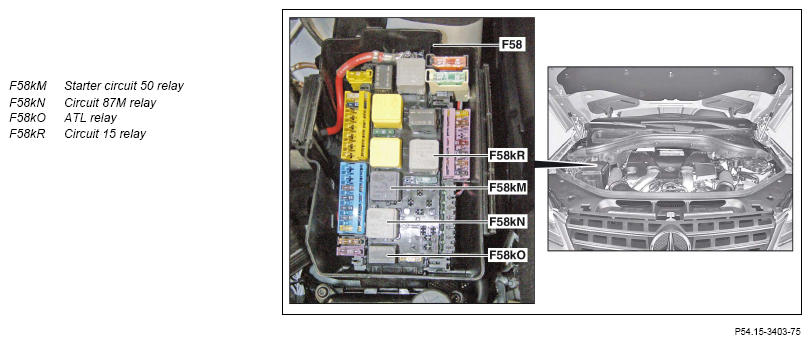

Shown: Engine compartment fuse and relay module (F58)
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for ME-SFI (ME) control unit | Engine 276.9 in MODEL 166 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | |
| Component description for ME-SFI (ME) control unit | Engine 157.9, 278.9 in MODEL 166 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for NOx sensor control unit | Engine 276.9 in MODEL 166 up to model year 2016 with CODE 920 (Direct gasoline injection with stratified charging) N37/5, N37/6 |
GF14.40-P-3024MMG | |
| AIRmatic control unit, component description | MODEL 166 with Engine 157.9, 276.9, 278.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Component description for video and radar sensor system control unit | MODEL 166 with Engine 157.9, 276.9, 278.9 up to model year 2016 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |

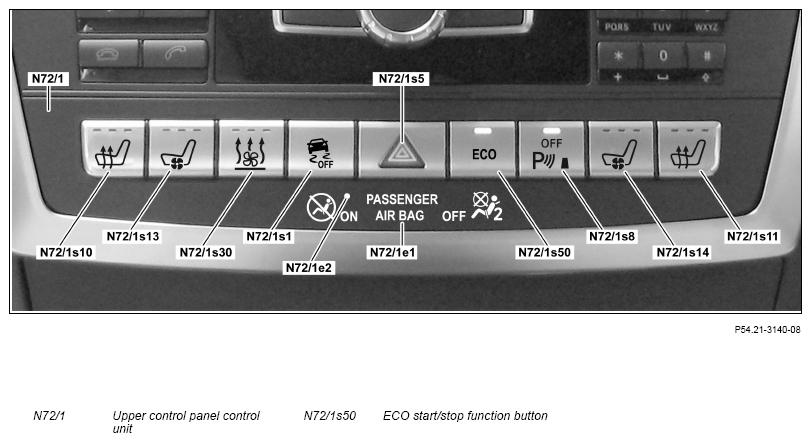

| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for fuel pump control unit | Engine 276.9, 278.9 in MODEL 166 up to model year 2016 N118 |
GF47.40-P-2001MMG | |
| Component description for fuel pump control unit | Engine 157.9 in MODEL 166 up to model year 2016 N118 |
GF47.40-P-2001MMR | |
| Component description for fully integrated transmission control unit | Engine 157.9 in MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Engine 276.9 in MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Engine 278.9 in MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y38n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | Engine 276.9 in MODEL 166 up to model year 2016 |
GF07.70-P-0998MMG | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | Engine 157.9, 278.9 in MODEL 166 up to model year 2016 |
GF07.70-P-0998MMR |
