Remove/Install Injection System Control Unit - AR07.08-P-7008GQC
ENGINE 276.8 in model 166, 251, 292
| Remove/install | |||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system | When replacing ME-SFI [ME] control unit (N3/10) | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition | ||
| 3 | Remove partition wall between wheel wells | ENGINE 276.8 in model 251 | AR62.30-P-2400RT |
| 4 | Remove upper ENGINE cover | ||

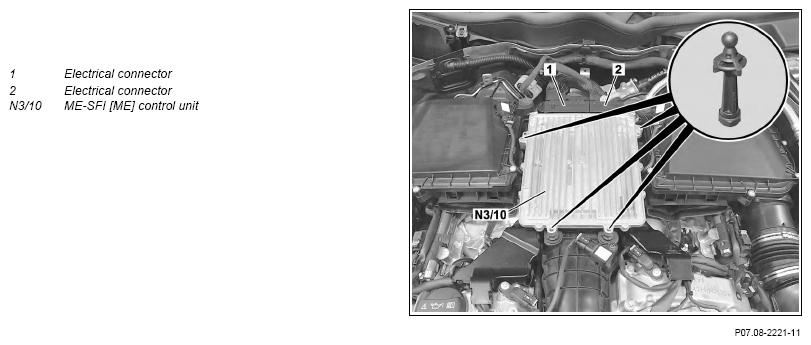

| 5 | Unclip ME-SFI [ME] control unit (N3/10) upwards and take it off | ||
| 6 | Disconnect electrical connections (1, 2) on ME-SFI [ME] control unit (N3/10) | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when ENGINE running. Risk of injury (bruises and burns) resulting from working on the ENGINE while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an ENGINE test run |
