Remove/Install Pressure Transducer For Boost Pressure Control - AR07.17-P-7002MLJ
ENGINE 157, 278 in model 166
ENGINE 157, 278 in model 292
Shown on ENGINE 157

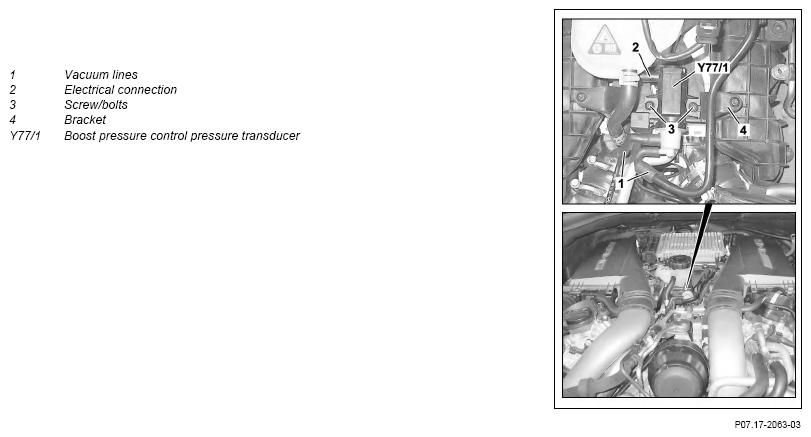

Fig 1: Pressure Transducer For Boost Pressure Control Components Location - Engine 157, 278 In Model 166 (Shown On Engine 157)
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove center section of upper ENGINE cover | ||
| 2 | Detach vacuum lines (1) from boost pressure control pressure transducer (Y77/1) | ||
| 3 | Detach electrical connection (2) from boost pressure control pressure transducer (Y77/1) and set aside | ||
| 4 | Remove screw/bolts (3) and remove boost pressure control pressure transducer (Y77/1) from bracket (4) on intake manifold | *BA09.41-P-1009-01O | |
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Read out fault memory using the diagnostic system and delete | If necessary | |
| AD00.00-P-2000-04A |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA09.41-P-1009-01O | Bolt, pressure transducer to bracket | Nm | 7 | 7 |
