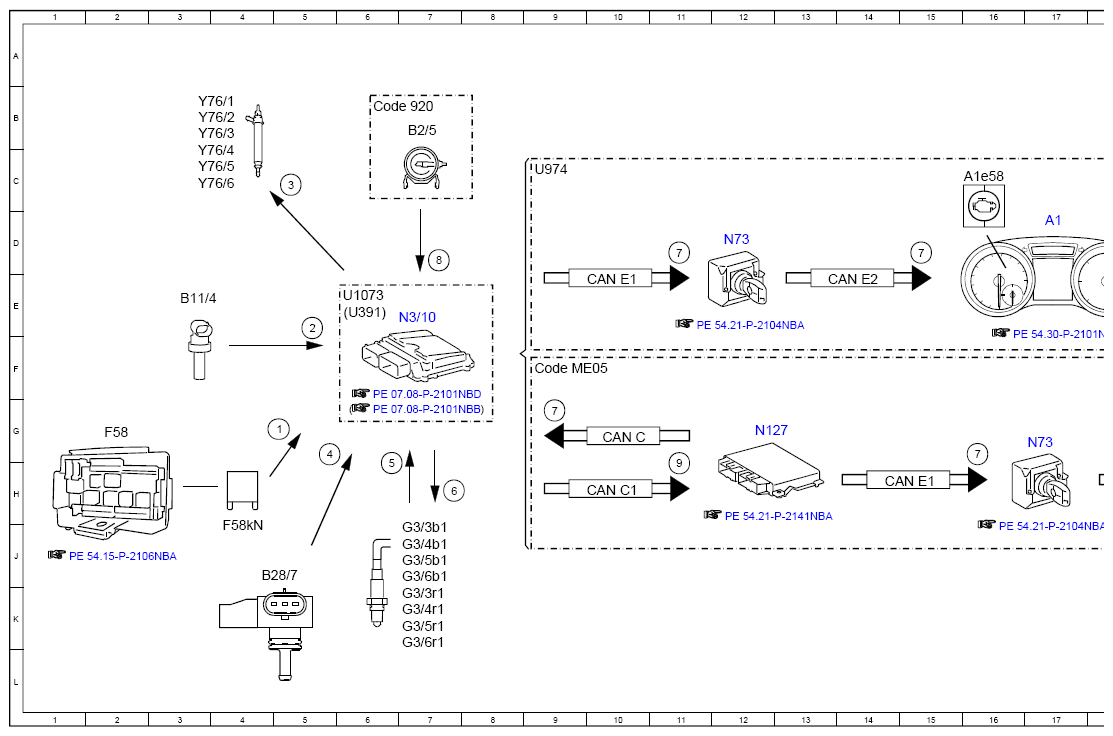

Electrical Function Schematic For Lambda Control - PE07.10-P-2710-97NBG
ENGINE 276 in MODEL 166 as of model year 2016
ENGINE 276.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 5G |
| 2 | Coolant temperature sensor, signal | 5E |
| 3 | Fuel injectors, actuation | 5C |
| 4 | Engine load, signal | 5G |
| 5 | Oxygen sensor sensor element, signal | 6H |
| 6 | Oxygen sensor heater, actuation | 7H |
| 7 | Engine diagnosis indicator lamp, actuation | 9G |
| 7 | Engine diagnosis indicator lamp, actuation | 16G |
| 7 | Engine diagnosis indicator lamp, actuation | 11D |
| 7 | Engine diagnosis indicator lamp, actuation | 15D |
| 7 | Engine diagnosis indicator lamp, actuation | 20G |
| 8 | Hot film mass air flow sensor, signal | 7D |
| 9 | Engine running, signal | 11H |
| A1 | Instrument cluster | 22G |
| A1 | Instrument cluster | 17D |
| A1e58 | Engine diagnosis indicator lamp | 21F |
| A1e58 | Engine diagnosis indicator lamp | 16C |
| B11/4 | Coolant temperature sensor | 3E |
| B2/5 | Hot film mass air flow sensor | 7B |
| B28/7 | Pressure sensor downstream of throttle valve | 4J |
| CAN C | Drive train CAN | 10G |
| CAN C1 | Engine CAN | 10H |
| CAN E1 | Chassis CAN 1 | 10E |
| CAN E1 | Chassis CAN 1 | 14H |
| CAN E2 | Chassis CAN 2 | 14E |
| CAN E2 | Chassis CAN 2 | 19H |
| Code 920 | Gasoline direct injection with stratified charge | 6B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9F |
| F58 | Engine compartment fuse and relay module | 2G |
| F58kN | Circuit 87M relay | 4J |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 7J |
| G3/3r1 | Left oxygen sensor heater upstream of catalytic converter | 7K |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 7J |
| G3/4r1 | Right oxygen sensor heater upstream of catalytic converter | 7K |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 7J |
| G3/5r1 | Left oxygen sensor heater downstream of catalytic converter | 7K |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 7J |
| G3/6r1 | Right oxygen sensor heater downstream of catalytic converter | 7K |
| N127 | Drivetrain control unit | 12G |
| N3/10 | ME-SFI [ME] control unit | 7E |
| N73 | Electronic ignition switch control unit | 12D |
| N73 | Electronic ignition switch control unit | 17G |
| U1073 | Valid for gasoline engine 276.9 | 6E |
| U391 | Valid for gasoline engine 276.8 | 6E |
| U974 | Not valid for hybrid drive | 9C |
| Y76/1 | Cylinder 1 fuel injector | 3B |
| Y76/2 | Cylinder 2 fuel injector | 3B |
| Y76/3 | Cylinder 3 fuel injector | 3B |
| Y76/4 | Cylinder 4 fuel injector | 3C |
| Y76/5 | Cylinder 5 fuel injector | 3C |
| Y76/6 | Cylinder 6 fuel injector | 3C |
