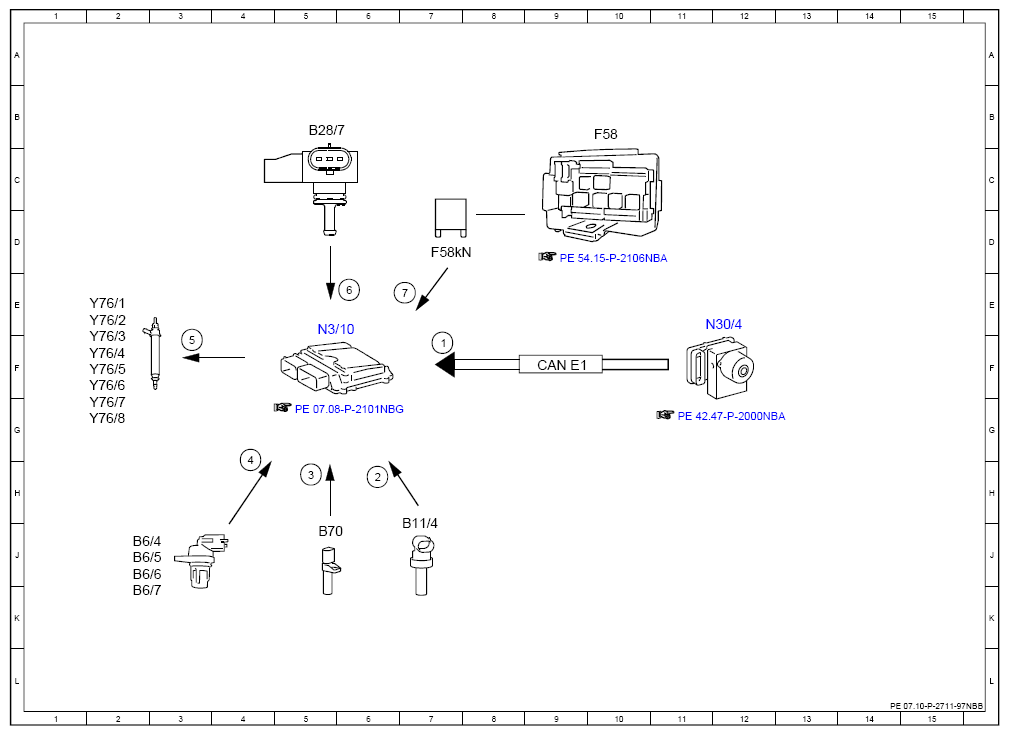

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97NBB
ENGINE 157, 278 in MODEL 166 as of model year 2016
ENGINE 157, 278 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 7F |
| 2 | Coolant temperature sensor, signal | 6H |
| 3 | Engine speed, signal | 5H |
| 4 | Camshaft Hall sensor, signal | 4H |
| 5 | Fuel injectors, actuation | 3F |
| 6 | Engine load, signal | 6E |
| 7 | Circuit 87, status | 7E |
| B11/4 | Coolant temperature sensor | 7J |
| B28/7 | Pressure sensor downstream of throttle valve | 5B |
| B6/4 | Left intake camshaft Hall sensor | 2J |
| B6/5 | Right intake camshaft Hall sensor | 2J |
| B6/6 | Left exhaust camshaft Hall sensor | 2J |
| B6/7 | Right exhaust camshaft Hall sensor | 2K |
| B70 | Crankshaft Hall sensor | 5J |
| CAN E1 | Chassis CAN 1 | 9F |
| F58 | Engine compartment fuse and relay module | 10B |
| F58kN | Circuit 87M relay | 7D |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 12E |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
| Y76/7 | Cylinder 7 fuel injector | 2G |
| Y76/8 | Cylinder 8 fuel injector | 2G |
