Quantity Control Valve, Basic Function - GF07.05-P-2000A
Engine All (4xWD)
Engine All (CAR)

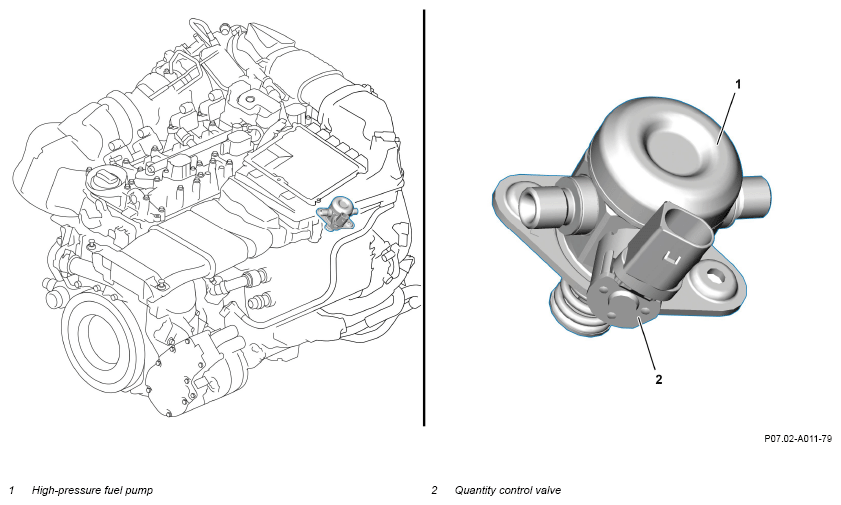

Example illustration
Overview
This document contains information on:
- General
- Function
General
The quantity control valve (2) has the following tasks:
- Regulation of fuel inflow to pump elements of high-pressure fuel pump (1)
- Interruption of fuel supply to pump elements of high-pressure fuel pump (1) when engine is switched off
- Closed-loop control of the fuel pressure in combination with the pressure regulating valve, fuel pressure sensor and combustion engine control unit
The quantity control valve (2) is installed in the high-pressure fuel pump (1).
Function
The fuel delivered by the fuel pump enters the high-pressure fuel pump flange. The fuel is forwarded to the quantity control valve (2) and to the fuel overpressure valve.
In line with the signal from the combustion engine control unit, the quantity control valve (2) regulates the fuel quantity that is supplied to the pump elements via an annular passage.
The quantity control valve (2) is actuated by the combustion engine control unit with a pulse width modulated signal. In the de-energized status, the quantity control valve (2) is open.
| Component description | |||
| Component description for the quantity control valve | Engine 176, 177, 256, 279, 656 in model 223 | GF07.05-P-6010A | |
| Engine 139, 254, 654 in model 206 | GF07.05-P-6010C | ||
| Engine 139, 177 in model 232 | GF07.05-P-6010F | ||
| Engine 139, 254, 654, 656 in model 254 | GF07.05-P-6010H | ||
| Engine 654, 656 in model 214 | GF07.05-P-6010K | ||
| Engine 260, 282, 608, 654 in model 118, 177, 247 as of model year 2023 | GF07.05-P-6010L | ||
| Engine 176, 177, 254, 256, 274, 654, 656 in model 167 as of model year 2023 |
GF07.05-P-6010M | ||
| Engine 139, 177 in model 192 | GF07.05-P-6010R | ||
| Engine 177, 254, 256, 654 in model 236 | GF07.05-P-6010S |
