Smooth Running Control, Function - GF07.10-P-1011MNB
Engine 178.9 In Model 190
Function requirements, general
- Engine runs
The ME-SFI [ME] control unit (N3/10) detects the engine running via the evaluation of the crankshaft Hall sensor signals (B70). The ME-SFI [ME] control unit directly reads in the signals of the crankshaft Hall sensor.
Smooth running control, general points
Smooth running control ensures that the engine is also smooth in fuel saving lean-burn operation in partial-load range and turns evenly. In this way the tangible rough running should be avoided for the driver. Also the CATs are protected from thermal overloading if there are combustion misfires.
The ME-SFI control unit evaluates the following variables to implement the function:
- Intake camshaft positions
The intake camshaft positions are detected by the left intake camshaft Hall sensor (B6/4) and right intake camshaft Hall sensor (B6/5). The ME-SFI [ME] control unit directly reads in the signals of the belt extended Hall sensors.
- Exhaust camshaft positions
Exhaust camshaft positions are detected by the left exhaust camshaft Hall sensor (B6/6) and right exhaust camshaft Hall sensor (B6/7). The ME-SFI [ME] control unit directly reads in the signals of the exhaust camshaft sensors Hall sensors.
- Coolant temperature
The coolant temperature is recorded by the coolant temperature sensor (B11/4). The ME-SFI [ME] control unit reads in the signals of the coolant temperature sensor directly.
- Engine load
The engine load is detected by the pressure sensor downstream of left throttle valve (B28/22) and by the pressure sensor downstream of right throttle valve (B28/23). The ME-SFI [ME] control unit directly reads in the signals from the pressure sensors downstream of throttle valve.
- Engine speed
The engine speed is recorded by the crankshaft Hall sensor. The ME-SFI [ME] control unit directly reads in the signals of the crankshaft Hall sensor.
- Wheel speeds
The Electronic Stability Program control unit (N30/4) transmits the wheel speed signals via the chassis CAN 1 (CAN E1), powertrain control unit (N127) and drive train CAN (CAN C1) to the ME-SFI [ME] control unit.
The ME-SFI [ME] control unit evaluates the input signals and actuates the following components:
- Fuel system
- Cylinder 1 fuel injector (Y76/1)
- Cylinder 2 fuel injector (Y76/2)
- Cylinder 3 fuel injector (Y76/3)
- Cylinder 4 fuel injector (Y76/4)
- Cylinder 5 fuel injector (Y76/5)
- Cylinder 6 fuel injector (Y76/6)
- Cylinder 7 fuel injector (Y76/7)
- Cylinder 8 fuel injector (Y76/8)
- Ignition system
- Cylinder 1+2 ignition coil (T4)
- Ignition coil, cylinders 3+4 (T4/1)
- Ignition coil, cylinders 5+6 (T4/2)
- Ignition coil, cylinders 7+8 (T4/3)
The following factors affect smooth running control:
- Engine speed and engine load
- Coolant temperature
- Vibration transmitted via the drivetrain
- Synchronization of injection and firing order
- Sensor adaptation
- Combustion misfirings
Engine speed and engine load
Using the engine speed and engine load, the ME-SFI [ME] control unit calculates a reference value for the time between two combustions.
Coolant temperature
For a cold engine more combustion misfires are permissible than for an engine at operating temperature.
Vibration transmitted via the drivetrain
Vibrations transmitted through the drivetrain may have a negative effect on evaluation of the engine running at certain engine speeds and load conditions. Therefore, the tolerance range for smooth running control is increased on poor road surfaces. The wheel speed is drawn on here for the detection of smooth wheel running.
Synchronization of injection and firing order
Cylinder detection is required for fault storage and evaluation using the signals from the crankshaft Hall sensor and the intake camshaft Hall sensors or the exhaust camshaft Hall sensors.
Sensor adaptation
The tolerance range for smooth running control is reduced after successful adaptation of the crankshaft Hall sensor.
In this way, the smooth running control can be adapted to the specific smooth running characteristics of the engine.
The ME-SFI [ME] control unit saves the smooth operation characteristics of the engine during a deceleration mode (accelerator pedal not operated) when uniform smooth operation is present. These are required as a comparison parameter for misfire detection.
Combustion misfirings
For the smooth running control, the signal from the crankshaft Hall sensor is evaluated using a comprehensive mathematical procedure, to check for precise uniformity of timing between individual combustions. Each individual combustion must generate a characteristic acceleration at the sensor rotor.
If there are combustion misfires, the sensor rotor turns up to the next ignition somewhat slower (torque fluctuation).
If the smooth running control detects a combustion failure, the injection of the relevant cylinder is disabled after a certain number of misfires.
However, no more than three cylinders are disabled simultaneously.
The total number of combustion misfires detected is stored in the fault memory and subdivided into:
- Cylinder-specific
- Emission limit
- Catalytic converter damaging
What is detected is combustion misfiring caused by:
- Ignition system
- Fuel injection system
- Mechanical engine components (for example, valve seats, valve springs, unmetered air)
- Fuel deficiency

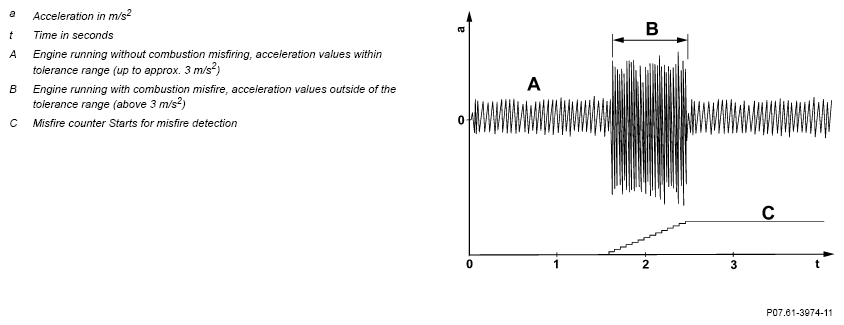

Smooth running signal
Active engine and transmission mount (with code 466 (Active engine mount))
The following component parts are installed for enhancing comfort and vehicle dynamics:
- Left active engine mount (Y123)
- Right active engine mount (Y123/1)
- Left active transmission mount (Y124)
- Right active transmission mount (Y124/1)
A metalized fluid on the inside of the active engine and transmission mounts reacts with a change in viscosity on the magnetic field generated by the following component parts:
- Left active engine mount coil (Y123l1)
- Right active engine mount coil (Y123/1l1)
- Left active transmission mount coil (Y124l1)
- Right active transmission mount coil (Y124/1l1)
This in turn influences the rigidity of the active engine and transmission mounts. When the engine is idling with soft engine and transmission mounts, this provides greater comfort by reducing the transmission of vibrations from the drivetrain to the body. When the vehicle is being driven, stiffening of the active transmission mounts results in more precise steering and increased vehicle dynamics.
The computation of the specified status of the active engine and transmission mounts takes place by the AMG suspension control unit (N3/43). The AMG suspension control unit evaluates the following variables to implement the function:
- Engine running, engine RPM and accelerator pedal position
The " Engine running" signal is sent by the ME-SFI [ME] control unit, the engine RPM and the accelerator pedal position via the drive train CAN to the AMG suspension control unit.
- Targeted gear, torque of the driving off clutch and output speed of the transmission
The DKG control unit (N15/13) transmits the signals targeted gear, torque of the driving off clutch and output speed of the transmission via the drive train CAN to the AMG suspension control unit.
- Status of the brake pedal and ESP® mode
The Electronic Stability Program control unit sends the status of brake pedal and the ESP® mode to the AMG suspension control unit via chassis CAN 1.
- Wheel speeds
The Electronic Stability Program control unit transmits the wheel speeds via the chassis CAN 1 to the AMG suspension control unit.
- Steering wheel angle and steering wheel velocity
The steering column tube module control unit (N80) sends information on the steering wheel angle and the steering wheel velocity via suspension CAN 1 (up to 30.11.2018) or via AMG FlexRay (Flex AMG) (as of 01.12.2018) to the AMG suspension control unit.
- Active damping control mode
The AMG Gateway control unit (N93/9) transmits the status of the AMG suspension button (S193/2) via the drive train CAN to the AMG suspension control unit.
- Circuit status
The electronic ignition lock control unit (N73) sends the circuit status of circuit 15 and circuit 50 via the interior CAN (CAN B) to the AMG suspension control unit.
- Status of engine mount
The active engine mount control unit (N3/42) directly reads in the status of the coils of the active engine mount and transmits this via the AMG CAN (CAN AMG) to the AMG suspension control unit.
- Status of transmission mount
The active transmission mount control unit (N3/44) reads in the status of the active transmission mount coils directly and sends it via the AMG CAN to the AMG suspension control unit.
- Pressure conditions of the active engine mount
Over pressure sensor on the active engine mount on the left (Y123b1) and the pressure sensor on the active engine mount on the right (Y123/1b1), the pressure conditions of the active engine mount are recorded.
The active engine mount control unit reads in the signals of the pressure sensors of the active engine mount and transmits via the AMG CAN to the AMG suspension control unit.
- Pressure conditions of the active transmission mount
Over the pressure sensor on the active transmission mount on the left (Y124b1) and the pressure sensor on the active transmission mount on the right (Y124/1b1), the pressure conditions of the active transmission mounts are recorded.
The active transmission mount control unit reads in the signals of the pressure sensors of the active transmission mount and transmits this via the AMG CAN to the AMG suspension control unit.
- Status of the active engine mount control
The active engine mount control unit transmit the status of the active engine mount control via AMG CAN to the AMG suspension control unit.
- Status of the active engine mount control unit
The active transmission mount control unit transmit the status of the active engine transmission control via AMG CAN to the AMG suspension control unit.
The AMG suspension control unit transmits the following signals of the pressure sensors and requirements via the AMG CAN (CAN AMG) to the active engine mount control unit to implement the function:
- Circuit status of circuit 15 and circuit 50
- Engine running status
- Active engine mount, request
- Mode, request
The active engine mount control unit actuates the coils of the active engine mount.
The AMG suspension control unit transmits the following signals and requirements via the AMG CAN to the active transmission mount control unit to implement the function:
- Circuit status of circuit 15 and circuit 50
- Engine running status
- Active transmission mount, request
- Mode, request
The active transmission mount control unit actuates the coils of the active transmission mount.
