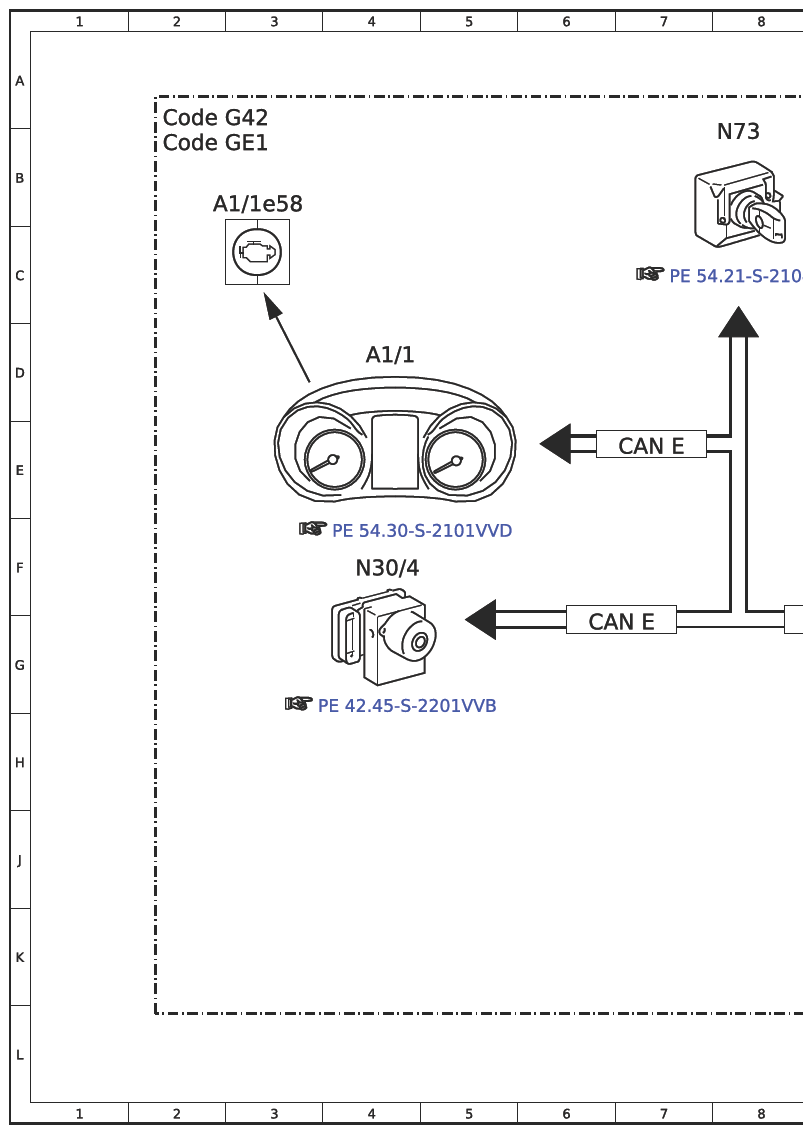

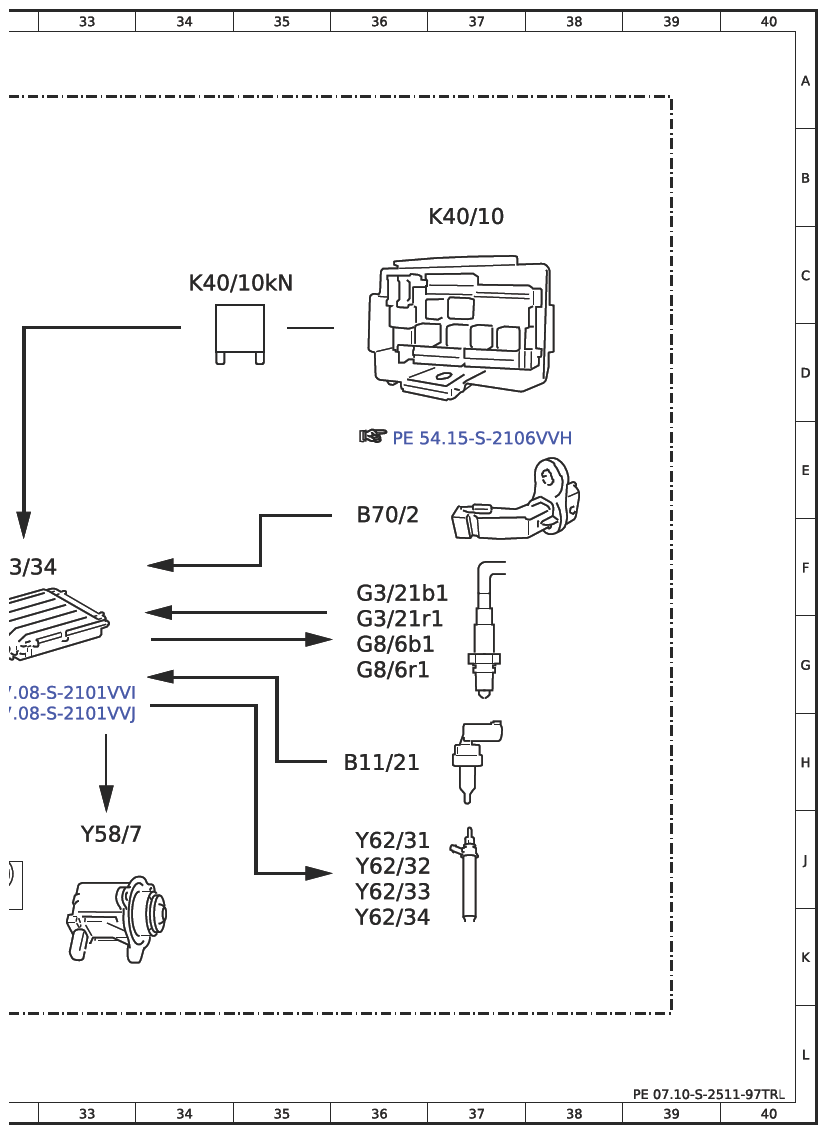

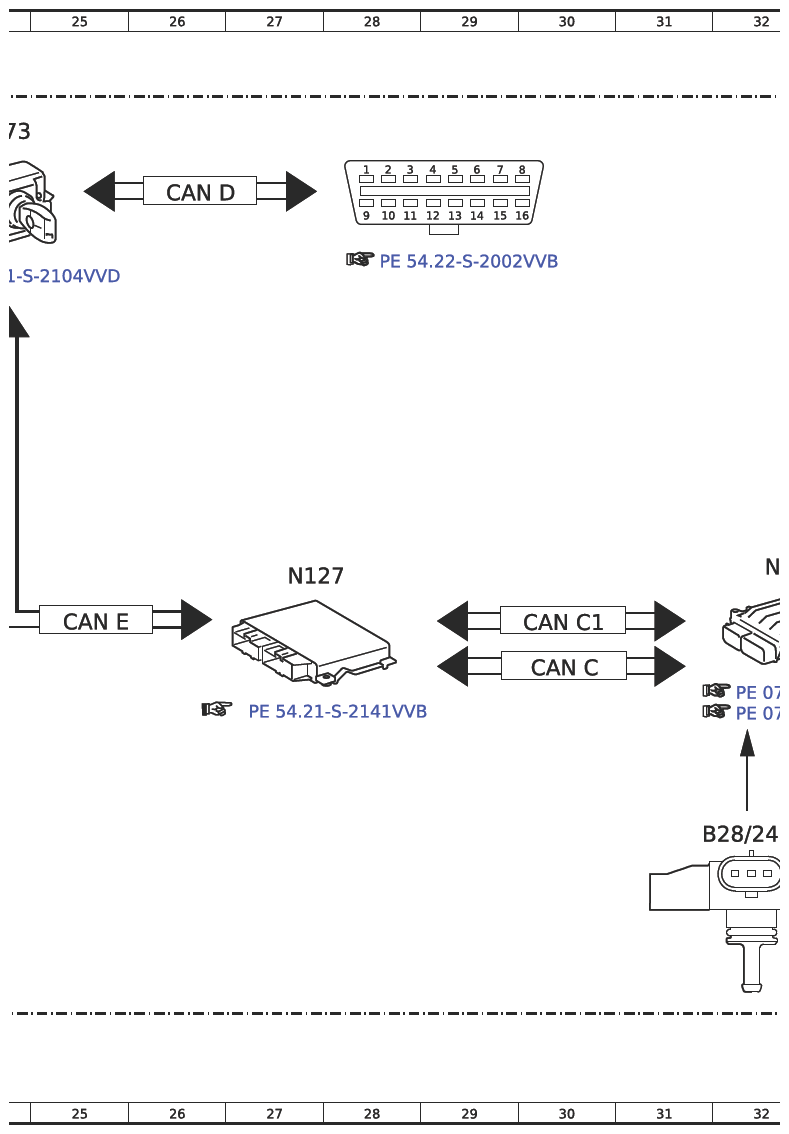

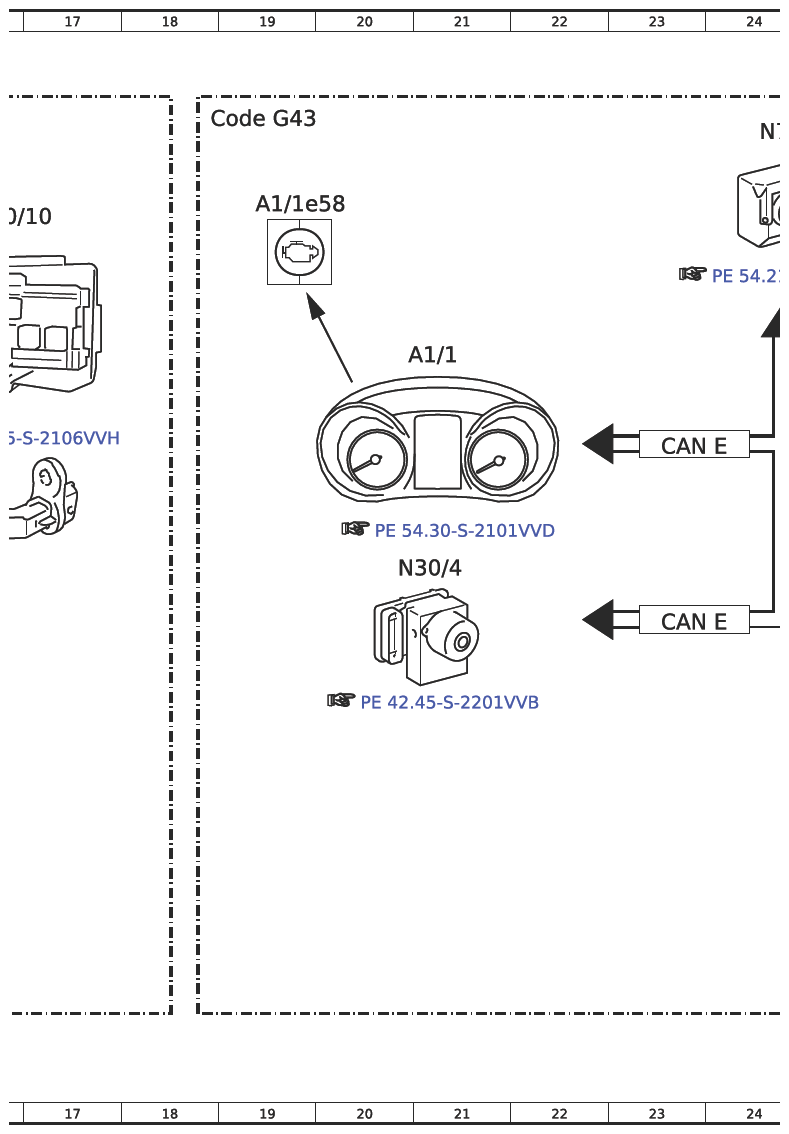

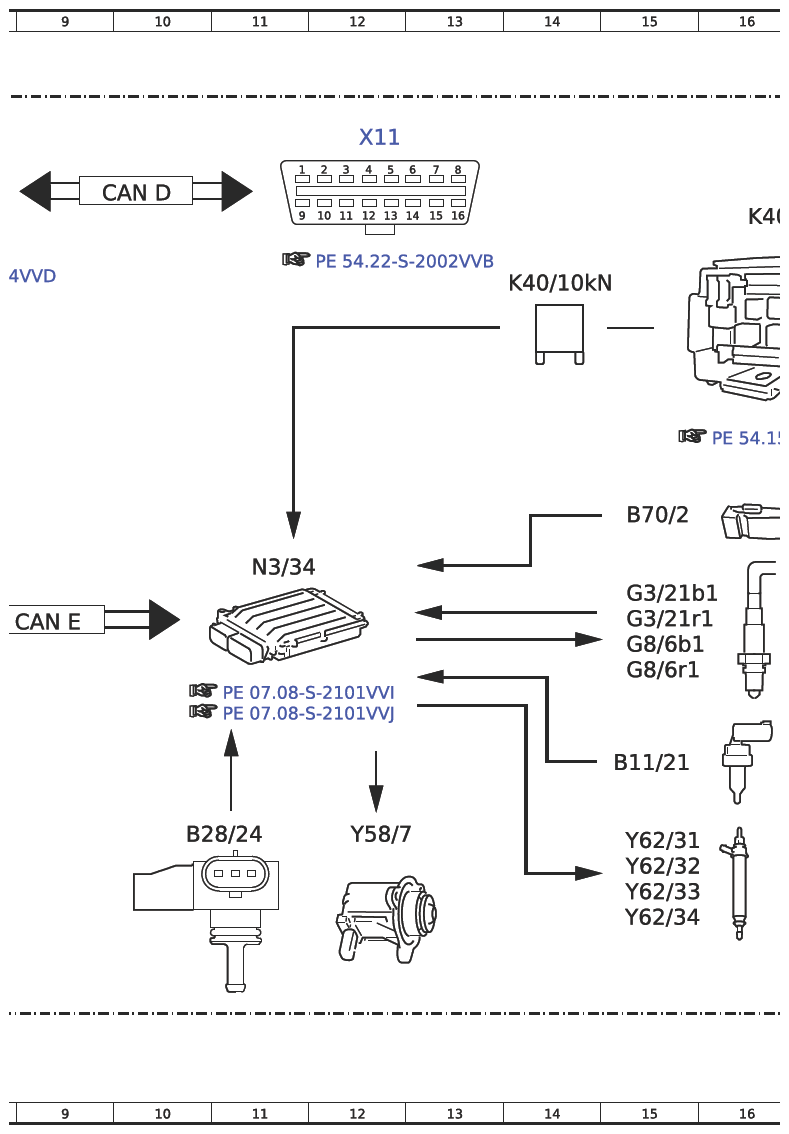

Function Schematic For Lambda Control - PE07.10-S-2511-97TRL
Engine 274 in model 447.6/7
with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 4D |
| A1/1 | Instrument cluster (KI) control unit | 21D |
| A1/1e58 | Engine diagnosis indicator lamp | 3B |
| A1/1e58 | Engine diagnosis indicator lamp | 19B |
| B11/21 | Coolant temperature sensor | 15H |
| B11/21 | Coolant temperature sensor | 36H |
| B28/24 | Intake manifold pressure sensor | 10J |
| B28/24 | Intake manifold pressure sensor | 32J |
| B70/2 | Crankshaft Hall sensor | 15F |
| B70/2 | Crankshaft Hall sensor | 36F |
| CAN C | Drive train CAN | 30G |
| CAN C1 | Engine CAN | 30G |
| CAN D | Diagnostic CAN | 10B |
| CAN D | Diagnostic CAN | 26B |
| CAN E | Chassis CAN | 9G |
| CAN E | Chassis CAN | 6G |
| CAN E | Chassis CAN | 7E |
| CAN E | Chassis CAN | 25G |
| CAN E | Chassis CAN | 23G |
| CAN E | Chassis CAN | 23E |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G43 | 9G-TRONIC | 18A |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 15F |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 36F |
| G3/21r1 | Heater of oxygen sensor heater downstream of catalytic converter | 15G |
| G3/21r1 | Heater of oxygen sensor heater downstream of catalytic converter | 36G |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 15G |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 36G |
| G8/6r1 | Heater of oxygen sensor upstream of catalytic converter | 15G |
| G8/6r1 | Heater of oxygen sensor upstream of catalytic converter | 36G |
| K40/10 | Engine compartment fuse and relay module | 16B |
| K40/10 | Engine compartment fuse and relay module | 37B |
| K40/10kN | Circuit 87M relay | 14C |
| K40/10kN | Circuit 87M relay | 34C |
| N127 | Drivetrain control unit | 27F |
| N3/34 | ME-SFI [ME] control unit | 11F |
| N3/34 | ME-SFI [ME] control unit | 32F |
| N30/4 | Electronic Stability Program (ESP) control unit | 4F |
| N30/4 | Electronic Stability Program (ESP) control unit | 21F |
| N73 | Electronic ignition lock (EZS) control unit | 8B |
| N73 | Electronic ignition lock (EZS) control unit | 24B |
| X11 | Diagnostic connector | 12B |
| Y58/7 | Purge control valve | 12J |
| Y58/7 | Purge control valve | 33J |
| Y62/31 | Cylinder 1 fuel injector | 15J |
| Y62/31 | Cylinder 1 fuel injector | 36J |
| Y62/32 | Cylinder 2 fuel injector | 15J |
| Y62/32 | Cylinder 2 fuel injector | 36J |
| Y62/33 | Cylinder 3 fuel injector | 15J |
| Y62/33 | Cylinder 3 fuel injector | 36J |
| Y62/34 | Cylinder 4 fuel injector | 15K |
| Y62/34 | Cylinder 4 fuel injector | 36K |
