Remove/Install Alternator - AR15.40-P-5032MMV

Engine 276.8 in model 205

Engine 276.8 in model 253

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Detach ground line from battery		AR54.10-P-0003LW
3	Detach boost pressure control pressure transducer and place with attached lines to one side	Engine 276.8 in model 205	AR07.17-P-7002MMV
4	Remove fan unit	Engine 276.8 in model 205	AR20.40-P-5050LWB
		Engine 276.8 in model 253	AR20.40-P-5050RF
5	Mount guard plate cooler		WF58.50-P-0110-01A
6	Remove right charge air pipe	Engine 276.8 in model 205	AR09.41-P-1326MMV
7	Remove poly-V belt from alternator (G2)		AR13.22-P-1202MMV
8	Detach wiring harness on alternator (G2)		AR15.40-P-5032-01MMV
		Nut, circuit B+ to alternator	*BA15.40-P-1002-01F

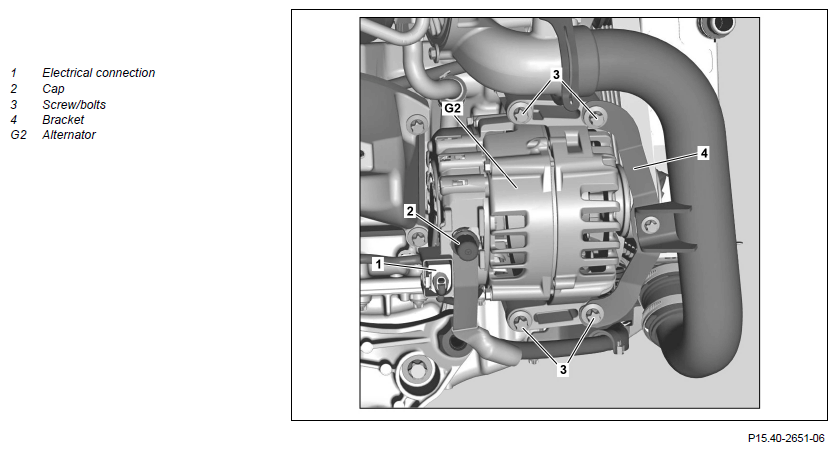

9	Remove screw/bolts (3), remove bracket (4) and place alternator (G2) to the side	Bolt, alternator to timing case	*BA15.40-P-1001-01F
10	Take alternator (G2) upwards and out
11	Install in the reverse order
