Remove/Install Crankshaft Position Sensor - AR15.12-P-2133GZB

ENGINE 642 in MODEL 164

ENGINE 642 in MODEL 166, 292

ENGINE 642 in MODEL 251

Shown on model 164

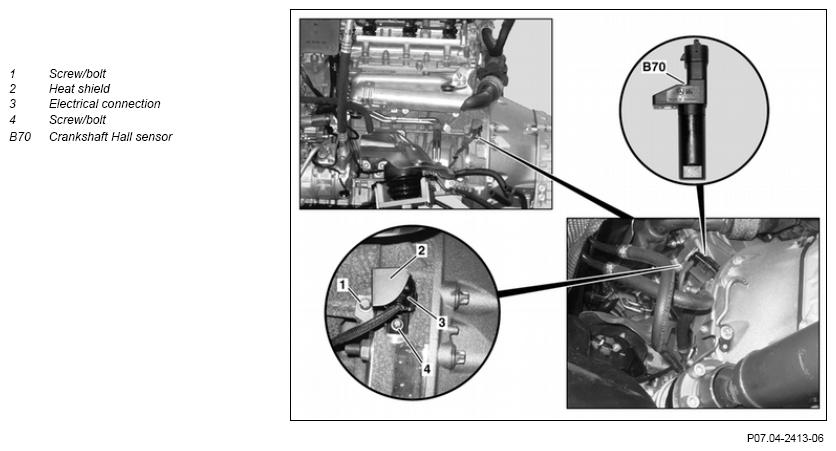

Fig 1: Crankshaft Position Sensor Component Location - Engine 642

G11972897

TORQUE SPECIFICATION

REFER TO SELF-DIAGNOSTIC SYSTEMS

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove corresponding underfloor paneling	Model 166, 292 with engine 642	AR61.30-P-1001GQ
2	Remove screw/bolt (1)
3	Remove heat shield (2) downwards
4	Disconnect electrical connection (3) on crankshaft Hall sensor (B70)
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
5	Remove screw/bolt (4)	Crankshaft position sensor to engine block	*BA15.10-P-1001-03G
6	Remove crankshaft Hall sensor (B70)
7	Install in the reverse order
8	Attach diagnostic system, read out fault memory, clear	AD00.00-P-2000-04A
	Attach diagnostic system, read out fault memory, clear	AD00.00-P-2000-04A

HALL SENSOR

Number	Designation		Engine 642
BA15.10-P-1001-03G	Crankshaft position sensor to engine block	Nm	9
