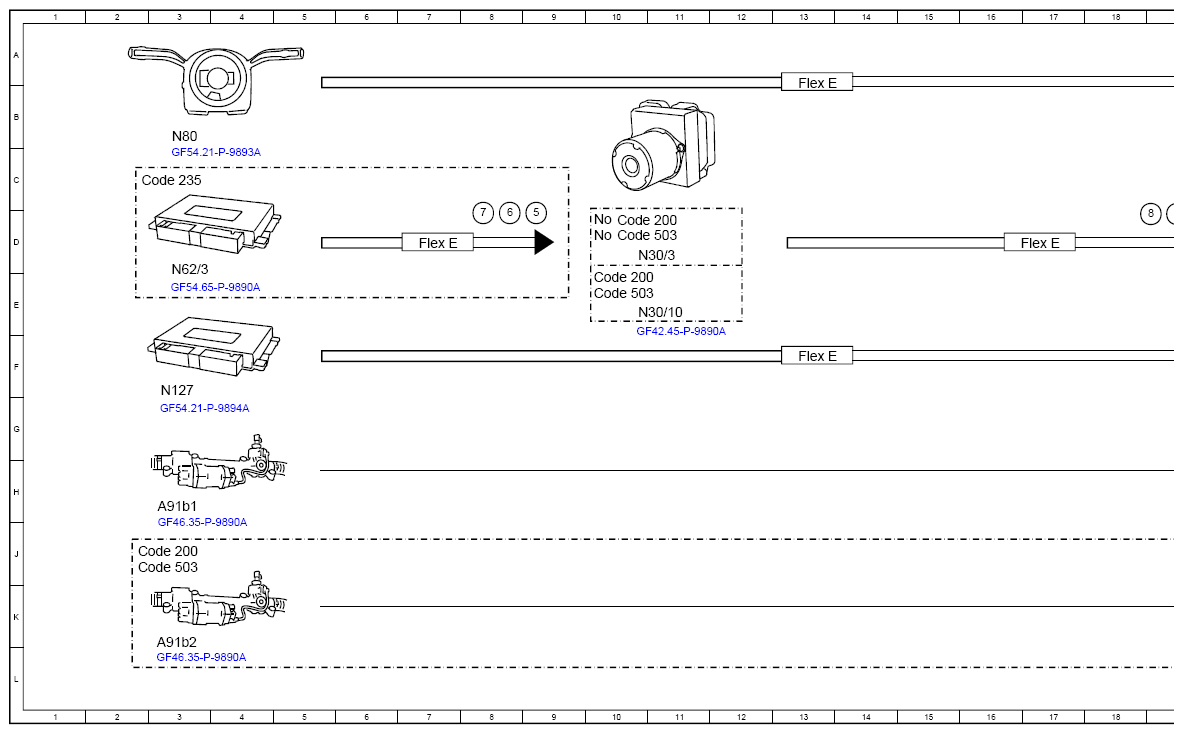

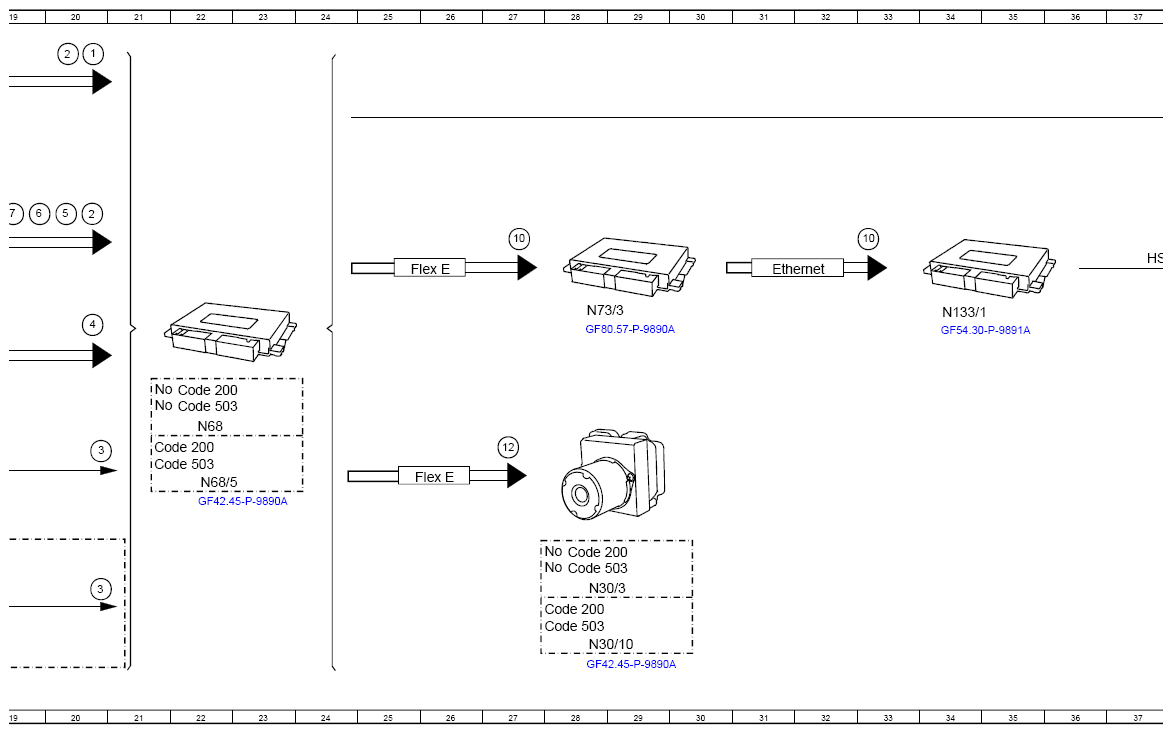

(Function Schematic For Electric Power Steering - PE46.35-P-2500-97B)
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel angle, signal | 20A |
| 10 | Instrument cluster message, request | 27D |
| 10 | Instrument cluster message, request | 33D |
| 11 | Image data, signal | 39D |
| 12 | Steer Assist, status | 27G |
| 2 | Steering wheel velocity, signal | 20A |
| 2 | Steering wheel velocity, signal | 20D |
| 3 | Electric power steering torque sensor, signal | 20J |
| 3 | Electric power steering torque sensor, signal | 20G |
| 4 | Engine management, communication | 20F |
| 5 | Parking system control unit, status | 9D |
| 5 | Parking system control unit, status | 20D |
| 6 | Vehicle stop, signal | 8D |
| 6 | Vehicle stop, signal | 19D |
| 7 | Electric power steering, request | 8D |
| 7 | Electric power steering, request | 19D |
| 8 | Steering assistance, request | 19D |
| 9 | Power steering, actuation | 39B |
| A40/18 | Instrument cluster display | 40E |
| A91b1 | Electric power steering torque sensor | 3H |
| A91b2 | Electric power steering torque sensor 2 | 3L |
| A91m1 | Electric power steering actuator motor | 39C |
| Code 200 | Conditionally automated driving | 27K |
| Code 200 | Conditionally automated driving | 28J |
| Code 200 | Conditionally automated driving | 10E |
| Code 200 | Conditionally automated driving | 10D |
| Code 200 | Conditionally automated driving | 21G |
| Code 200 | Conditionally automated driving | 22F |
| Code 200 | Conditionally automated driving | 2J |
| Code 235 | Active Park Assist | 2C |
| Code 503 | Remote-controlled parking | 28J |
| Code 503 | Remote-controlled parking | 27K |
| Code 503 | Remote-controlled parking | 10D |
| Code 503 | Remote-controlled parking | 10E |
| Code 503 | Remote-controlled parking | 22G |
| Code 503 | Remote-controlled parking | 21H |
| Code 503 | Remote-controlled parking | 2J |
| Ethernet | Ethernet | 31E |
| Flex E | Chassis FlexRay | 25E |
| Flex E | Chassis FlexRay | 17D |
| Flex E | Chassis FlexRay | 13F |
| Flex E | Chassis FlexRay | 26H |
| Flex E | Chassis FlexRay | 13B |
| Flex E | Chassis FlexRay | 7D |
| HSVL | High-speed video link | 37D |
| N127 | Drivetrain control unit | 3F |
| N133/1 | Instrument cluster control unit | 34E |
| N30/10 | Electronic Stability Program control unit | 28L |
| N30/10 | Electronic Stability Program control unit | 11E |
| N30/3 | Electronic Stability Program control unit | 28K |
| N30/3 | Electronic Stability Program control unit | 11D |
| N62/3 | Parking system control unit | 3E |
| N68 | Power steering control unit | 22G |
| N68/5 | Power steering control unit | 22H |
| N73/3 | Electronic ignition switch control unit | 28E |
| N80 | Steering column module control unit | 3B |
