Remove/Install Triangular Window - AR67.30-P-2560ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

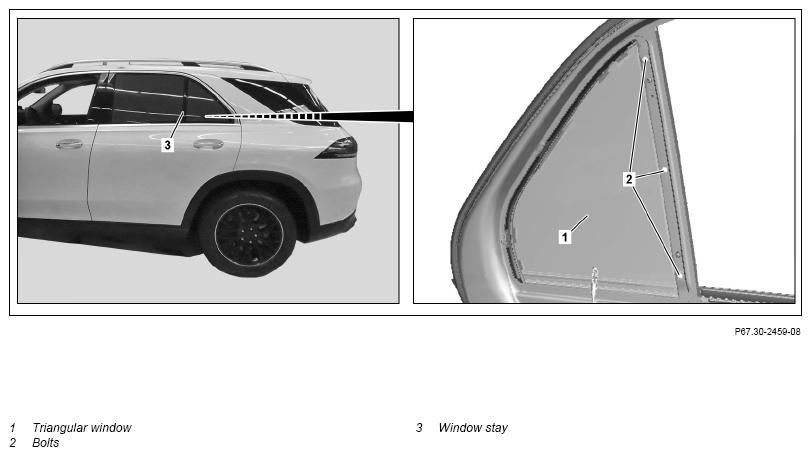

1	Remove corresponding side window seal from the rear door.		AR72.12-P-0001ME
2	Remove screws (2) from the window divider (3).
3	Remove window divider (3).
4	Remove triangular window (1).	When inserting the triangular window (1), ensure that the seal is not damaged. Otherwise noises from water entry can occur. Wet the triangular window (1) in the assembly area of the window frame with lubricant.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
5	Install in the reverse order.

REPAIR MATERIAL

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
