Remove/Install Fuel Pump Control Unit - AR47.20-P-5717LW

Model 205 with engine 177, 274.9, 276.8, 651, 654

Model 205.0/1/2 with engine 264

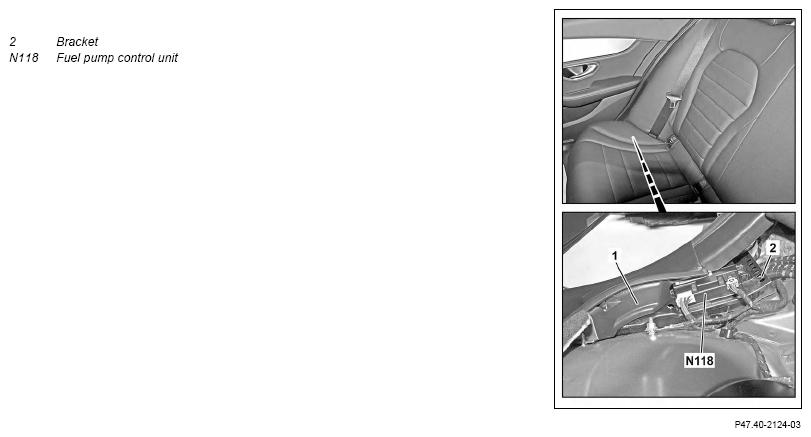

Fig 1: Fuel Pump Control Unit Components Location - Model 205.0 With Engine 264

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Commission fuel system control unit (N118).	When replacing the FSCU (N118).
		Transfer stored data onto the new fuel system control unit (N118).	AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3.1	Remove rear passenger compartment side trim.	Model 205.0/1/2/3 Model 205.0/1/2	AR68.30-P-4780LW
		Model 205.3	AR68.30-P-4780CLW
3.2	Remove lower trim at side in rear.	Model 205.4	AR68.30-P-4784LWR
4	Remove fuel system control unit (N118) from bracket (2).	Ensure correct seating of the FSCU (N118).
5	Release and disconnect electrical connectors at fuel system control unit (N118).
6	Install in the reverse order.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Perform engine test run.
