Remove/Install Fuel Pump Control Unit - AR47.20-P-5717MRL
Model 205.3/4 with engine 264

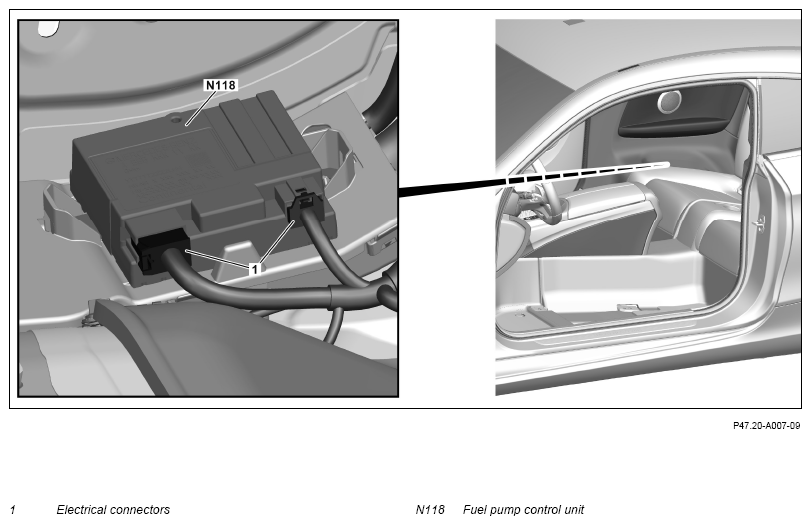

Shown on model 205.3 with removed door and removed driver's seat

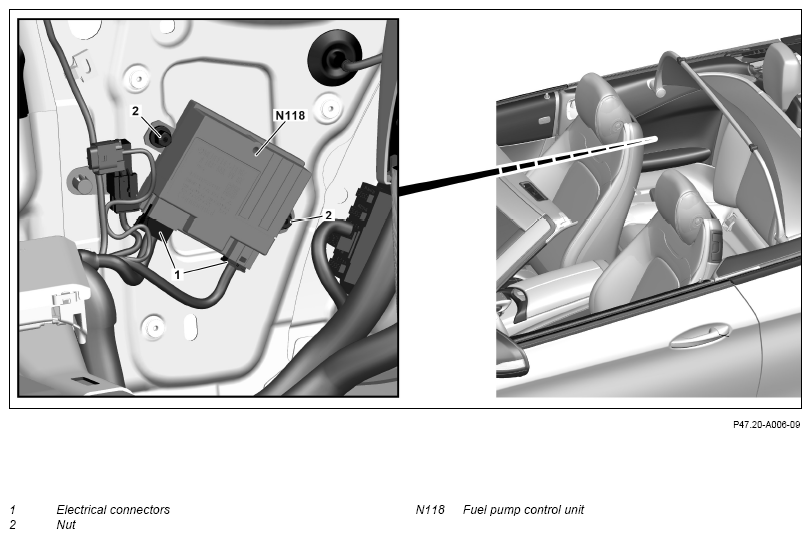

Shown on model 205.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission fuel system control unit (N118). | When replacing the FSCU (N118). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3.1 | Remove rear passenger compartment side trim. | Model 205.3 with engine 264 | AR68.30-P-4780CLW |
| 3.2 | Remove lower trim at side in rear. | Model 205.4 with engine 264 | AR68.30-P-4784LWR |
| 4 | Release and disconnect electrical connectors (1) on fuel system control unit (N118). | ||
| 5.1 | Unclip and remove fuel system control unit (N118). | Model 205.3 with engine 264 |
|
| 5.2 | Unscrew nuts (2) and remove fuel system control unit (N118). | Model 205.4 with engine 264 | |
| 6 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. |
