Gasoline Injection And Ignition System With Direct Injection, Function - GF07.70-P-0002MRT
Engine 256.9 in model 213, 238, 257, 290
up to model year 2021
Engine 256.9 in model 222
Networking via direct lines

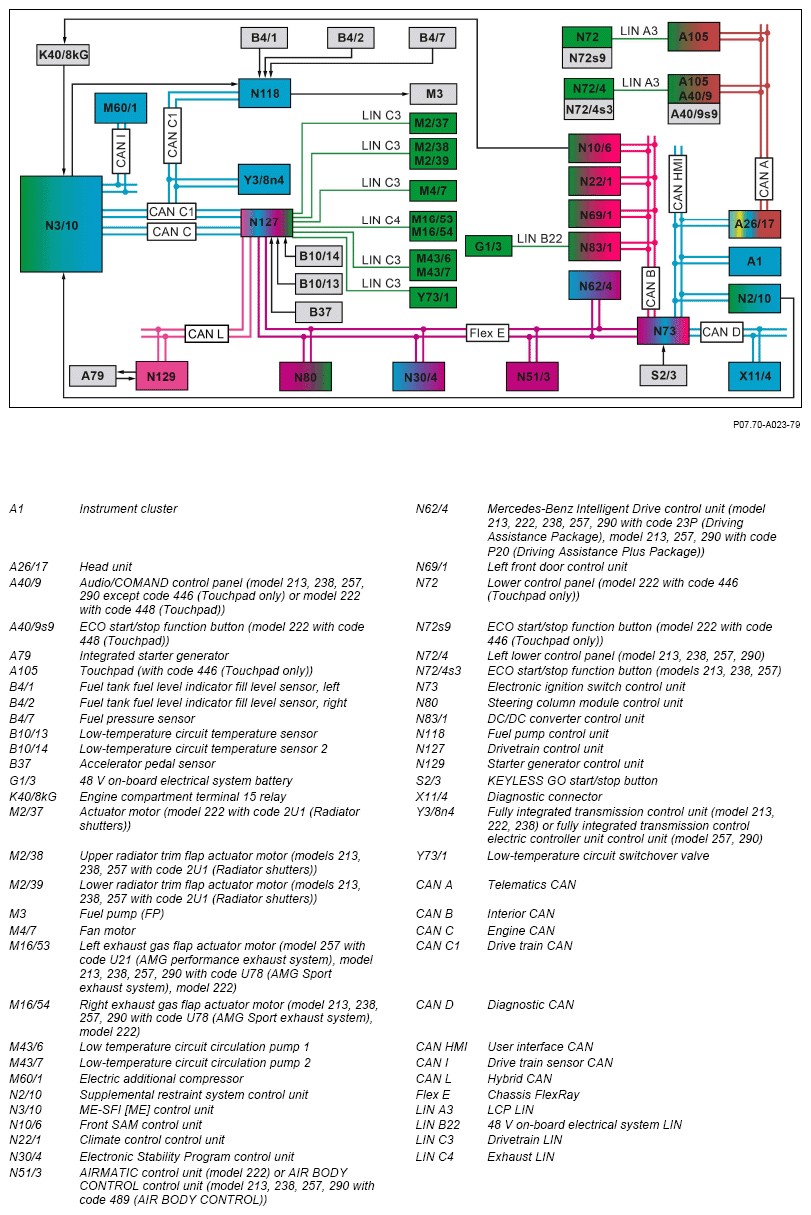

CAN cross-linking
The DC/DC converter control unit, the starter-alternator control unit as well as the 48 V on-board electrical system battery and the integrated starter alternator component parts are additionally installed for the 48 V on-board electrical system. The DC/DC converter control unit connects the 12 V on-board electrical system to the 48 V on-board electrical system, and enables energy exchange in both directions.
Gasoline injection and ignition system with DI, general

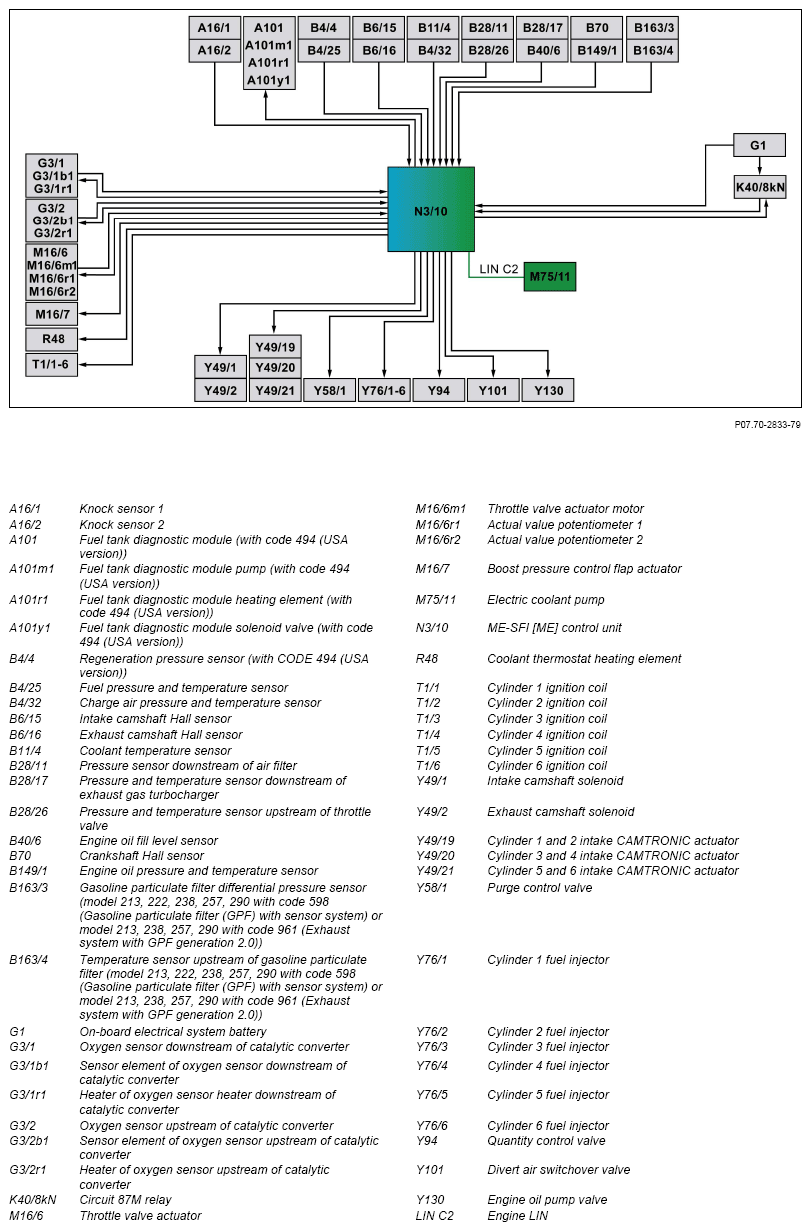

In the electrical network with the sensors and actuators of engine 256 DI (Direct Injection), the gasoline injection and ignition system with direct injection forms the engine management system "MRG1".
The whole engine management is contained in the ME-SFI control unit. Sensor data are read in directly by the engine management and indirectly via the CAN network and the respective actuators are actuated. Here the individual functions and systems of the engine management are controlled and coordinated by the ME-SFI control unit.
The engine management is subdivided into the following systems:
- Basic functions
- Engine system
- Fuel injection system
- Ignition system
- Exhaust system
Basic functions
- Control unit diagnosis
- Fault memory
- European On-Board Diagnosis
- Diagnosis via CAN
- CAN network
- Control module programming
- Transport mode
- Variant coding
- DAS stage 4 (FBS 4)
- Torque coordination
- Heat management
- Maximum vehicle speed limit
Diagnosis:
For diagnostic purposes, the fault codes of the engine management system can be read out and deleted and individual diagnostic functions can be specifically actuated.
CAN network:
The ME-SFI [ME] control unit exchanges data with other control units that are integrated in the CAN network via the connected drive train CAN and engine CAN. The ME-SFI [ME] control unit also acts as an interface (Gateway) between the two CAN bus systems.
Control unit programming:
The engine management in the ME-SFI [ME] control unit is programmable, i.e. the software of the control unit can be exchanged (replaced). The software required for control unit programming can be found on the diagnosis system software DVD.
Transport mode:
In transport mode various functions of the engine management are limited. If the kilometer reading of the vehicle is more than 250 km, the "Transport mode" system status is deactivated automatically and cannot be reactivated again.
Variant coding:
The vehicle model, national version, exhaust gas variant, transmission version can, for example, be coded with the variant coding.
Engine system
- Throttle valve control
- Safety fuel shutoff
- Transmission overload protection
- Support for ESP®
- Fully integrated transmission control support
- Driving on torque limitation
- Fan operation
- Throttle valve calibration
- Boost pressure control (over wastegate)
- Regulated adjustment of the intake and exhaust camshaft
- CAMTRONIC valve lift adjustment
- Regulation of ECO start/stop function
Fuel injection system
- Cylinder-selective DI
- Gasoline high pressure regulation
- Start, post-start phase and acceleration enrichment
- Warm-up control
- Idle speed control
- Limp-home function
- Rpm increase for an activated A/C
- Inertia fuel shutoff
- Fuel pump controlling (low fuel pressure)
- Altitude adaptation (integral pressure sensor in ME-SFI control unit)
- Load change function
- Rpm limitation
Ignition system
- Multi-spark ignition
- Ignition map
- Rpm limitation
- Knock sensor system
- Synchronization of camshaft and crankshaft position
Exhaust system
- Catalytic converter heating
- Oxygen sensor heater controlling
- Straight-line lambda control
Exhaust flap
In order to optimize the exhaust noise behavior of the exhaust system electrically actuated exhaust flaps are installed in the middle element and on the exhaust tailpipes of the rear muffler.
These are actuated in a load-dependent manner by the exhaust gas flap actuator motors. The powertrain control unit actuates the exhaust gas flap actuator motors in a continuously variable manner.
| Ignition, function | GF07.10-P-1023MRT | ||
| Starting, function | GF07.10-P-1001MRT | ||
| Fuel supply, function | GF07.10-P-1003MRT | ||
| Injection regulation, function | GF07.10-P-1004MRT | ||
| Ignition system function | GF07.10-P-1005MRT | ||
| Synchronize fuel injection and firing order function | GF07.10-P-1006MRT | ||
| Start, post-start phase and warm-up enrichment, function | GF07.10-P-1007MRT | ||
| Rpm control, function | GF07.10-P-1008MRT | ||
| Lambda control, function | GF07.10-P-1010MRT | ||
| Smooth running control, function | GF07.10-P-1011MRT | ||
| Thermal management, function | GF07.10-P-1012MRT | ||
| Torque coordination, function | GF07.10-P-1013MRT | ||
| Overrun mode fuel shutoff, function | GF07.10-P-1014MRT | ||
| Knock control, function | GF07.10-P-1015MRT | ||
| Camshaft adjustment, function | GF07.10-P-1016MRT | ||
| Engine limp-home mode, function | GF07.10-P-1019MRT | ||
| European OBD, function | GF07.10-P-1021MRT | ||
| ECO start/stop function engine management, function | GF07.10-P-1042MRT | ||
| Charging, function | GF09.00-P-2000MRT | ||
| Exhaust treatment function | GF14.00-P-3000MRT | ||
| Electronic accelerator function | GF30.20-P-3015MRT | ||
| On-board refueling vapor recovery function | Engine 256.9 in model 213, 238, 257, 290 up to model year 2021 with code 494 (US version) Engine 256.9 in model 222 with code 494 (US version) |
GF47.10-P-3004MRT | |
| Purging function | GF47.30-P-3015MRT | ||
| Purge system with leak test, function | Engine 256.9 in model 213, 238, 257, 290 up to model year 2021 with code 494 (US version) Engine 256.9 in model 222 with code 494 (US version) |
GF47.30-P-3017MRT | |
| Overview of system components for gasoline injection and ignition system with direct injection | GF07.70-P-9998MRT |
