Overview Of System Components, Automatically Controlled All-Wheel Drive (4Matic) - GF28.00-P-9998AVL
Model 213 with transmission 725.096
up to model year 2021

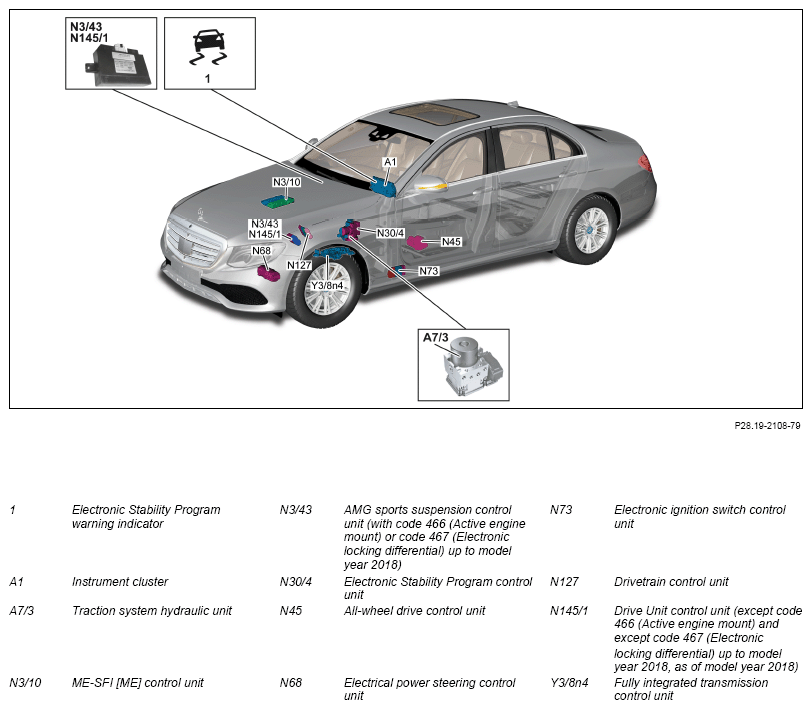

Shown on model 213.0
Shown on model 213.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNA | |
| AMG sports suspension control unit, component description | Model 213 with transmission 725.096 up to model year 2018 with code 466 (Active engine mount) with code 467 (Electronic locking differential) N3/43 | GF54.21-P-1002FG | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FG | |
| All-wheel drive control unit, component description | N45 | GF28.19-P-3211AVL | |
| Electrical power steering control unit(ES), component description | N68 | GF46.35-P-7010FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNA | |
| Drive unit control unit component description | Model 213 with transmission 725.096 as of model year 2018 up to model year 2021 Model 213 with transmission 725.096 up to model year 2018 except code 466 (Active engine mount) except code 467 (Electronic locking differential) N145/1 | GF27.60-P-5168FG | |
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.096 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVL |
