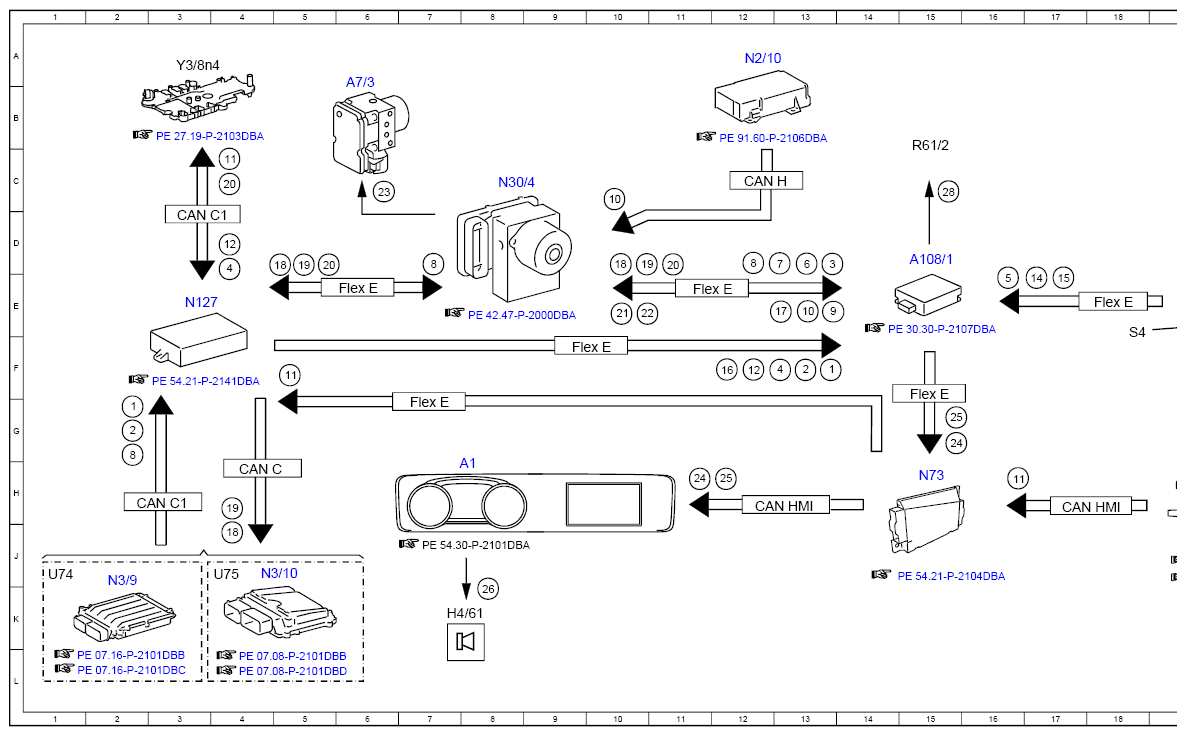

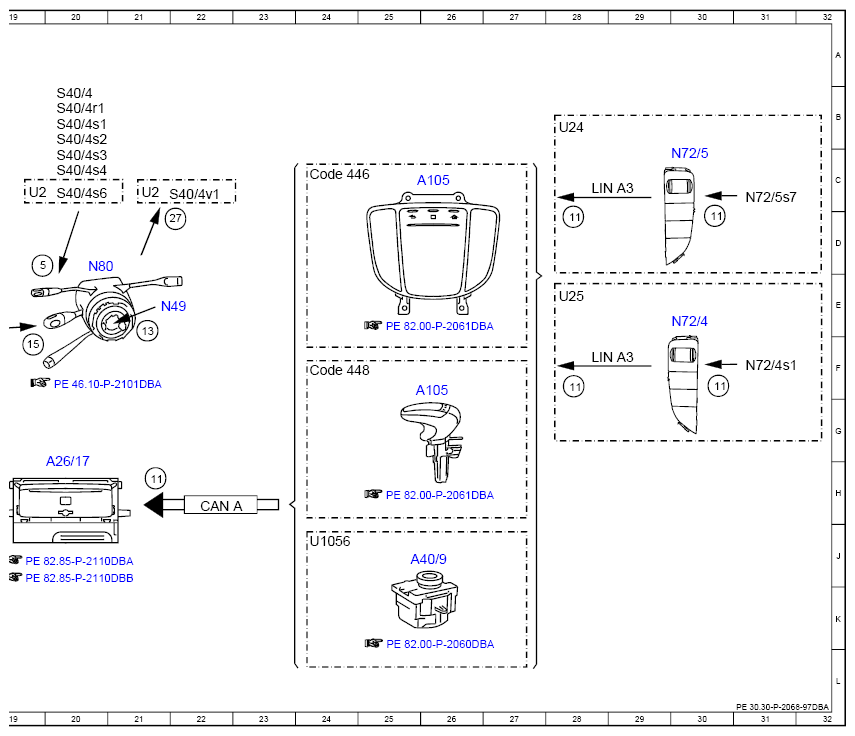

Electrical Function Schematic For Distronic Distance-Pilot - PE30.30-P-2068-97DBA
Model 213 up to model year 2021 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) except code 23P (Drive package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 13F |
| 1 | Engine running, signal | 2G |
| 10 | Speed, turn rate and lateral acceleration, signal | 10C |
| 10 | Speed, turn rate and lateral acceleration, signal | 13E |
| 11 | DYNAMIC SELECT switch, status | 4C |
| 11 | DYNAMIC SELECT switch, status | 5G |
| 11 | DYNAMIC SELECT switch, status | 16H |
| 11 | DYNAMIC SELECT switch, status | 21H |
| 11 | DYNAMIC SELECT switch, status | 28C |
| 11 | DYNAMIC SELECT switch, status | 28F |
| 11 | DYNAMIC SELECT switch, status | 30C |
| 11 | DYNAMIC SELECT switch, status | 30F |
| 12 | Transmission mode, signal | 12F |
| 12 | Transmission mode, signal | 4D |
| 13 | Steering wheel angle sensor, signal | 21E |
| 14 | Steering wheel angle, signal | 17E |
| 15 | Combination switch, status | 19F |
| 15 | Combination switch, status | 17E |
| 16 | Accelerator pedal position, signal | 12F |
| 17 | Brake pedal, status | 13E |
| 18 | Engine torque, increase request | 10D |
| 18 | Engine torque, increase request | 5D |
| 18 | Engine torque, increase request | 4J |
| 19 | Engine torque, reduce request | 5D |
| 19 | Engine torque, reduce request | 4H |
| 19 | Engine torque, reduce request | 10D |
| 2 | Drivetrain operational, signal | 13F |
| 2 | Drivetrain operational, signal | 2G |
| 20 | Engage targeted gear, request | 4C |
| 20 | Engage targeted gear, request | 5D |
| 20 | Engage targeted gear, request | 11E |
| 21 | Braking torque increase, request | 10E |
| 22 | Braking torque reduction, request | 11E |
| 23 | Traction system hydraulic unit, actuation | 6C |
| 24 | Warning and system messages, request | 15G |
| 24 | Warning and system messages, request | 11H |
| 25 | Warning tone, request | 15G |
| 25 | Warning tone, request | 12H |
| 26 | Speaker, actuation | 8K |
| 27 | Light-emitting diode actuation | 22D |
| 28 | Heater, actuation | 15C |
| 3 | Parking brake, status | 13D |
| 4 | Gear range, status | 13F |
| 4 | Gear range, status | 4D |
| 5 | CRUISE CONTROL lever, signal | 16E |
| 5 | CRUISE CONTROL lever, signal | 19D |
| 6 | Wheel speed, signal | 13D |
| 7 | ESP®, status | 13D |
| 8 | Available torque, signal | 2G |
| 8 | Available torque, signal | 7D |
| 8 | Available torque, signal | 12D |
| 9 | Braking torque, signal | 13E |
| A1 | Instrument cluster | 8H |
| A105 | Touchpad | 26F |
| A105 | Touchpad | 26C |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 15D |
| A26/17 | Head unit | 20H |
| A40/9 | Audio/COMAND control panel | 25J |
| A7/3 | Traction system hydraulic unit | 6B |
| CAN A | Telematics CAN | 22H |
| CAN C | Engine CAN | 4H |
| CAN C1 | Drive train CAN | 3H |
| CAN C1 | Drive train CAN | 3D |
| CAN H | Vehicle dynamics CAN | 12C |
| CAN HMI | User interface CAN | 12H |
| CAN HMI | User interface CAN | 17H |
| Code 446 | Touchpad only | 24C |
| Code 448 | Touchpad | 24F |
| Flex E | Chassis FlexRay | 6E |
| Flex E | Chassis FlexRay | 11E |
| Flex E | Chassis FlexRay | 9F |
| Flex E | Chassis FlexRay | 15G |
| Flex E | Chassis FlexRay | 18E |
| Flex E | Chassis FlexRay | 7G |
| H4/61 | Instrument cluster speaker | 7K |
| LIN A3 | LCP LIN | 28F |
| LIN A3 | LCP LIN | 28C |
| N127 | Drivetrain control unit | 3E |
| N2/10 | Supplemental restraint system control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 4J |
| N3/9 | CDI control unit | 2J |
| N30/4 | Electronic Stability Program control unit | 8C |
| N49 | Steering wheel angle sensor | 21E |
| N72/4 | Left lower control panel | 30E |
| N72/4s1 | DYNAMIC SELECT switch | 31F |
| N72/5 | Right lower control panel | 30C |
| N72/5s7 | DYNAMIC SELECT switch | 31C |
| N73 | Electronic ignition switch control unit | 15H |
| N80 | Steering column module control unit | 20D |
| R61/2 | Distance Pilot DISTRONIC controller unit heater | 15C |
| S4 | Combination switch | 18F |
| S40/4 | Cruise control lever | 20B |
| S40/4M | DISTRONIC control | 20B |
| S40/4s1 | Resume from memory switch | 20B |
| S40/4s2 | Decelerate and set switch | 20B |
| S40/4s3 | Accelerate and set switch | 20C |
| S40/4s4 | OFF switch | 20C |
| S40/4s6 | Variable speed MM iter switch | 20C |
| S40/4v1 | Variable speed MM iter light-emitting diode | 21C |
| U1056 | Valid except code 446 (Touchpad only) | 24J |
| U2 | Not valid for USA | 19C |
| U2 | Not valid for USA | 21C |
| U24 | Valid for manual transmission | 28B |
| U25 | Valid for automatic transmission | 28E |
| U74 | Valid for diesel engines | 1J |
| U75 | Valid for gasoline engines | 4J |
| Y3/8n4 | Fully integrated transmission control unit | 3A |
