Gasoline Injection And Ignition System With Direct Injection, Function - GF07.70-P-0002MNA
Engine 177.9 in model 205, 253
Engine 177.9 in model 213
up to model year 2021
Input signals

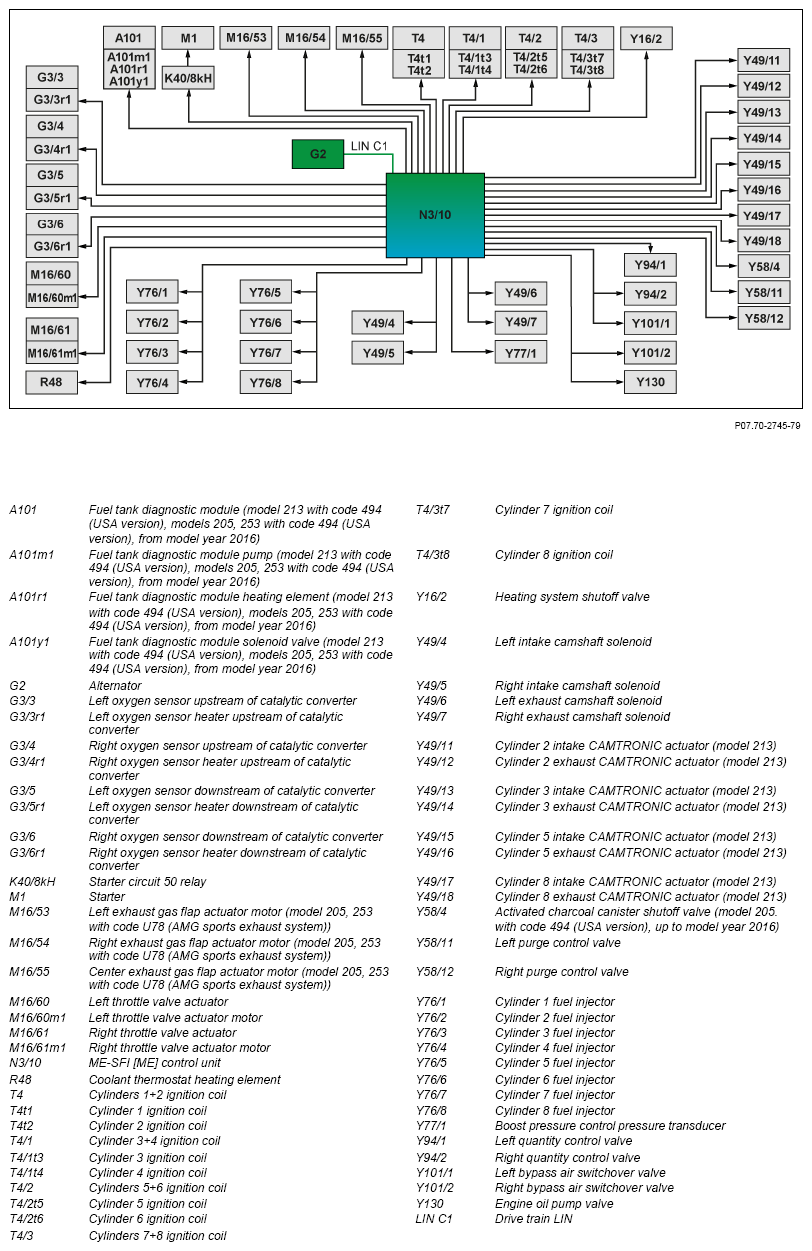

Output signals

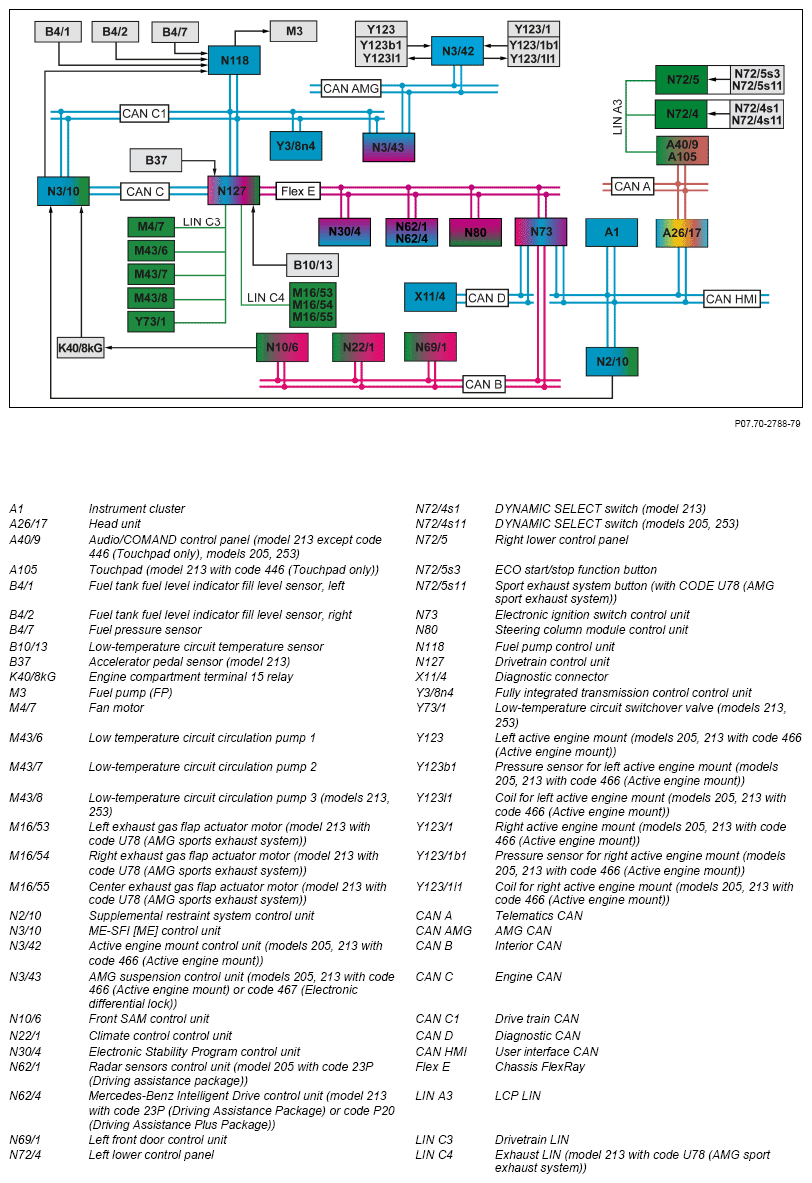

CAN cross-linking
Gasoline injection and ignition system with DI, general
The gasoline injection and ignition system with direct injection in electrical combination with the sensors and actuators of the engine forms the engine management system.
The abbreviated designation "MED 17.7.4" means, for example:
- M = Motronic
- E = Electronic accelerator
- D = Direct injection
- 17.7.4 = Version 17.7.4
The whole engine management is contained in the ME-SFI control unit. The engine management processes the sensor signals and actuates the actuators accordingly. Individual functions of the engine management are controlled and coordinated by the ME-SFI [ME] control unit here.
Variants
- Engine 177 with power stage 1 (LS1) in models 205, 253
- Engine 177 with power stage 2 (LS2) in model 213
Differences between power stage 2 and power stage 1:
- Motor
- CAMTRONIC, cylinder deactivation and four-cylinder operation
- Larger exhaust gas turbocharger with modified exhaust manifolds
- Modified pistons, adapted to a lower compression ratio
- Crankcase, identical design but conversion to chill cast method
- Two-mass flywheel for compensating the vibrations occurring in four-cylinder operation
- Oil pump with increased delivery rate
- Oil separator, adapted to modified installation space
- New design of the engine cover, adapted to the modified overall look and the new engine compartment flow concept
- Fuel injection
- Fuel system high pressure pump with increased delivery rate and modified high-pressure lines (rails)
- Air intake/charging
- Charge-air distributor, adapted to the modified flow pattern
- Air filter, tailored to increased output
- Charge air cooler, rearranged and adapted to increased output
- Cooling circuit
- ME-SFI [ME] control unit, cooled via low-temperature circuit
- Larger volume of coolant expansion reservoir and altered position (on left of cylinder head cover)
The engine management is subdivided into the following systems:
- Basic functions
- Engine management
- Fuel injection system
- Ignition system
- Exhaust system
Basic functions
- Control unit diagnosis
- Fault memory
- European On-Board Diagnosis
- Control module programming
- Transport mode
- Variant coding
- DAS stage 4 (FBS 4)
- Torque coordination
- Heat management
- Alternator interface
- Maximum vehicle speed limit
Control unit programming:
The engine management in the ME-SFI [ME] control unit is programmable, i.e. the software of the control unit can be exchanged (replaced) using a vehicle diagnosis system. The software required for control unit programming can be found on the diagnosis system software DVD.
Transport mode:
In transport mode various functions of the engine management are limited.
If the vehicle's kilometer reading is more than 250 km, the "transport mode" system status is deactivated automatically and cannot be reactivated anymore using the vehicle diagnosis system.
Variant coding:
The vehicle model, national version, exhaust variant and transmission version, for example, can be coded with the variant coding.
Engine management
- Starter relay actuation
- Throttle valve control
- Safety fuel shutoff
- Transmission overload protection
- Support for ESP®
- Support for the A/T control unit
- Driving on torque limitation
- Fan operation
- Boost pressure control (over wastegate)
- Regulated adjustment of the intake and exhaust camsh
- ECO start/stop function
- Cylinder deactivation (model 213)
Fuel injection system
- Cylinder-selective DI
- Fuel high pressure control
- Start, post-start phase and acceleration enrichment
- Warm-up control
- Idle speed control
- Limp-home function
- Inertia fuel shutoff
- Fuel pump controlling (low fuel pressure)
- Altitude adaptation (integral pressure sensor in ME-SFI control unit)
- Load change function
- Rpm limitation
Ignition system
- Multi-spark ignition
- Rpm limitation
- Knock sensor system
- Synchronization of camshaft and crankshaft position
Exhaust system
- Catalytic converter heating
- Oxygen sensor heater controlling
- Straight-line lambda control
- Gasoline particulate filter (model 213 with code 598 (gasoline particulate filter (OPF) with sensor system))
Engine 177.9 in model 205, 253 with code U78 (AMG sports exhaust system)
In order to optimize the exhaust noise behavior of the exhaust system electrically actuated exhaust gas flaps are installed in the middle element and on the exhaust tailpipes of the rear muffler.
These are actuated by the exhaust gas flap actuator motors at the left, right and center in a load-dependent manner and using a characteristics map for each drive program by the ME-SFI [ME] control unit.
The ME control unit has its own software for the exhaust gas flap actuators. It facilitates their stepwise opening.
The exhaust gas flap actuator motors are diagnosable.
If one or more exhaust gas flaps cannot be opened, the engine output is reduced.
| Ignition ON, function | GF07.10-P-1000MNA | ||
| Starting, function | GF07.10-P-1001MNA | ||
| Ignition OFF, function | GF07.10-P-1002MNA | ||
| Fuel supply, function | GF07.10-P-1003MNA | ||
| Injection regulation, function | GF07.10-P-1004MNA | ||
| Ignition system function | GF07.10-P-1005MNA | ||
| Synchronize fuel injection and firing order function | GF07.10-P-1006MNA | ||
| Start, post-start phase and warm-up enrichment, function | GF07.10-P-1007MNA | ||
| Rpm control, function | GF07.10-P-1008MNA | ||
| Alternator interface function | GF07.10-P-1009MNA | ||
| Lambda control, function | GF07.10-P-1010MNA | ||
| Smooth running control, function | GF07.10-P-1011MNA | ||
| Thermal management, function | GF07.10-P-1012MNA | ||
| Torque coordination, function | GF07.10-P-1013MNA | ||
| Overrun mode fuel shutoff, function | GF07.10-P-1014MNA | ||
| Knock control, function | GF07.10-P-1015MNA | ||
| Camshaft adjustment, function | GF07.10-P-1016MNA | ||
| Engine limp-home mode, function | GF07.10-P-1019MNA | ||
| On-board diagnosis, function | GF07.10-P-1020MNA | ||
| ECO start/stop function engine management, function | GF07.10-P-1042MNA | ||
| Cylinder shutoff, function | Engine 177.9 in model 213 up to model year 2021 | GF07.61-P-3033MNE | |
| Charging, function | GF09.00-P-2000MNA | ||
| Exhaust treatment function | GF14.00-P-3000MNA | ||
| Electronic accelerator function | GF30.20-P-3015MNA | ||
| On-board refueling vapor recovery function | Engine 177.9 in model 205, 253 with code 494 (US version) Engine 177.9 in model 213 up to model year 2021 with code 494 (US version) | GF47.10-P-3004MNA | |
| Purging function | GF47.30-P-3015MNA | ||
| Purging system with leak test function | Engine 177.9 in model 205 up to model year 2016 with code 494 (US version) | GF47.30-P-3016A | |
| Engine 177.9 in model 205 as of model year 2016 with code 494 (US version) Engine 177.9 in model 213 up to model year 2021 with code 494 (US version) Engine 177.9 in model 253 with code 494 (US version) | GF47.30-P-3016MNA | ||
| Overview of system components for gasoline injection and ignition system with direct injection | Engine 177.9 in model 205, 253 | GF07.70-P-9998MNA | |
| Engine 177.9 in model 213 up to model year 2021 | GF07.70-P-9998MNE |
