Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MND
Engine 276.8 in model 213, 238
up to model year 2021
Shown on model 213.0

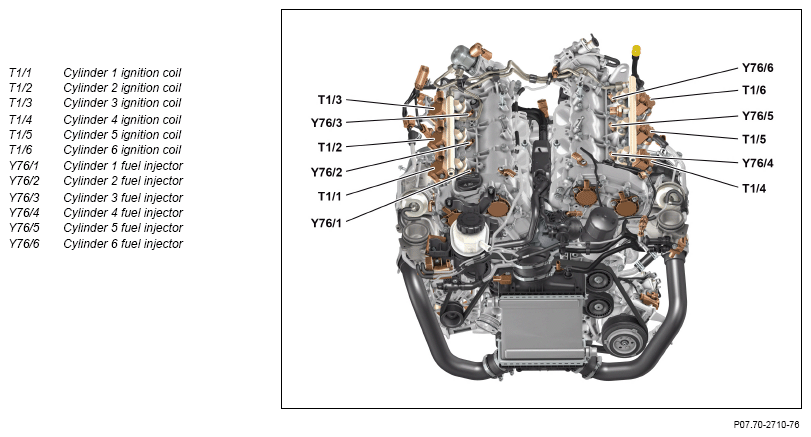

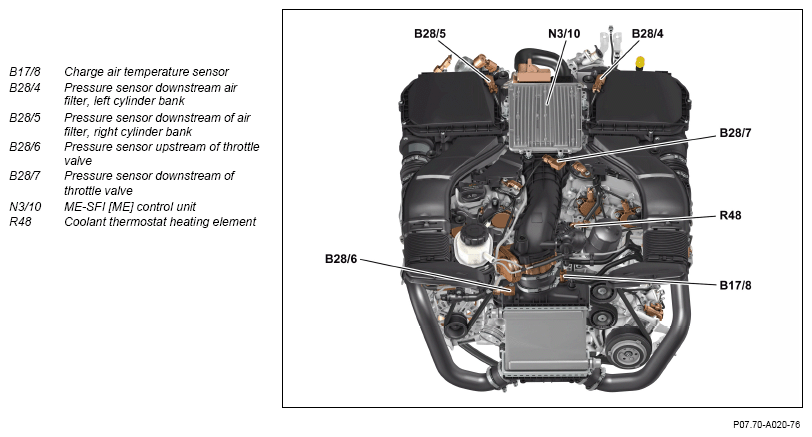

Shown: engine from the top front
Shown: engine from the top front
Shown: engine from the top front

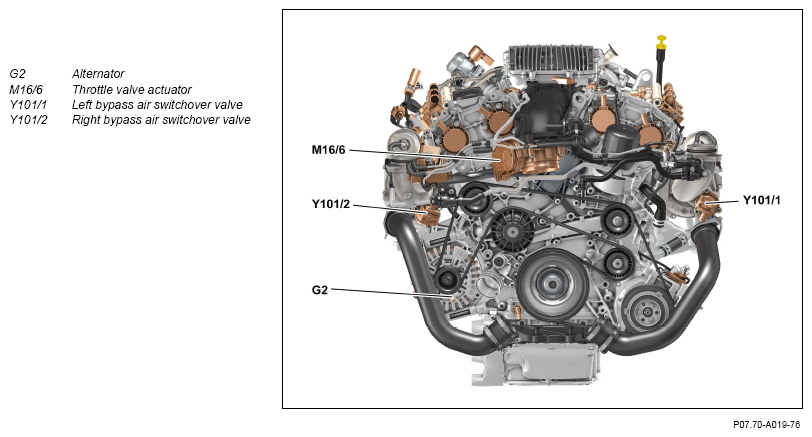

Shown: engine from the front

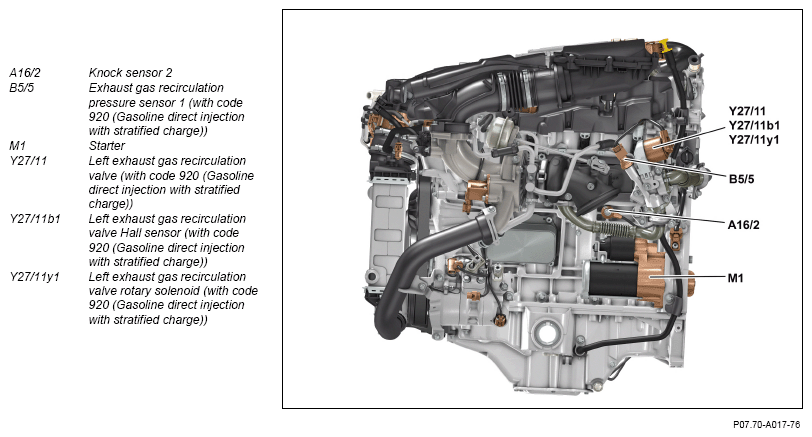

Shown: engine from the left

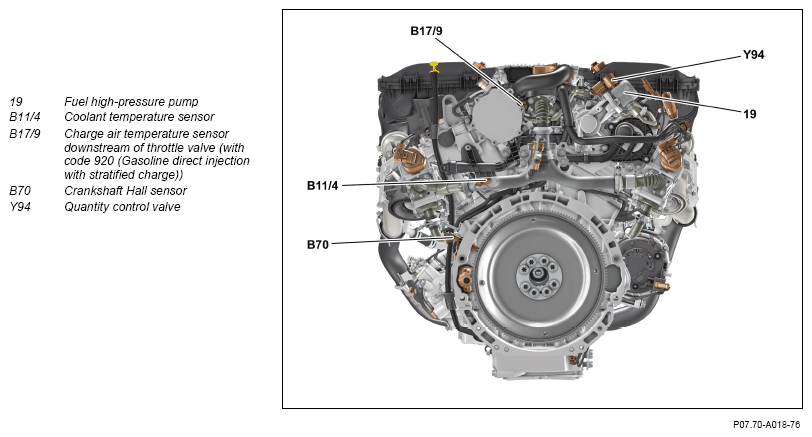

Shown on engine from rear (with code 920 (Gasoline direct injection with stratified charge))

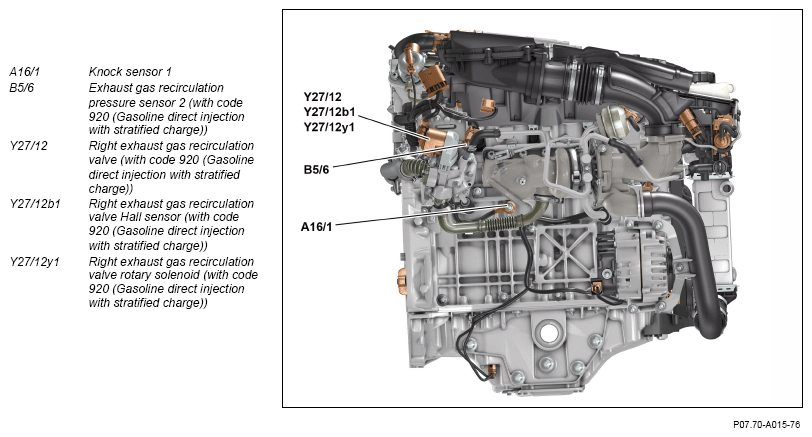

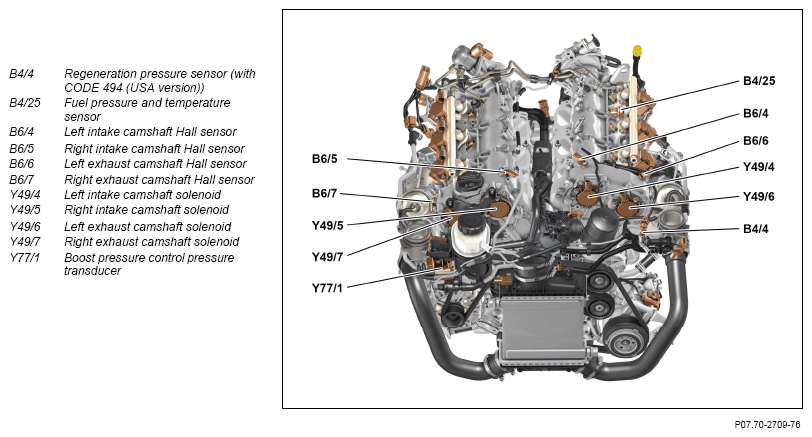

Shown: engine from the right

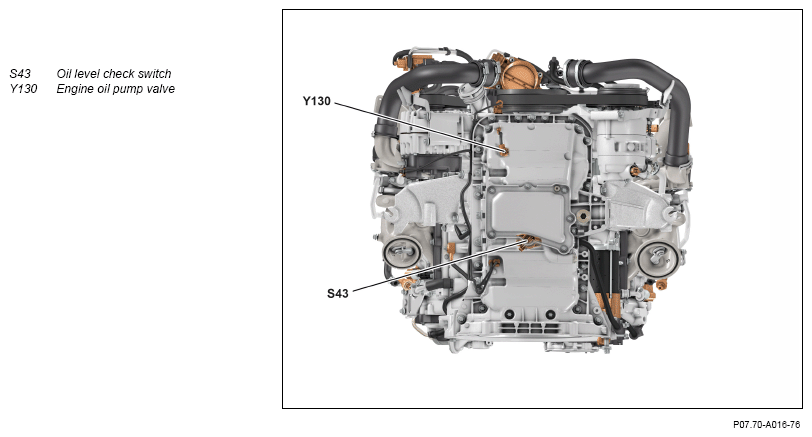

Shown: engine from below

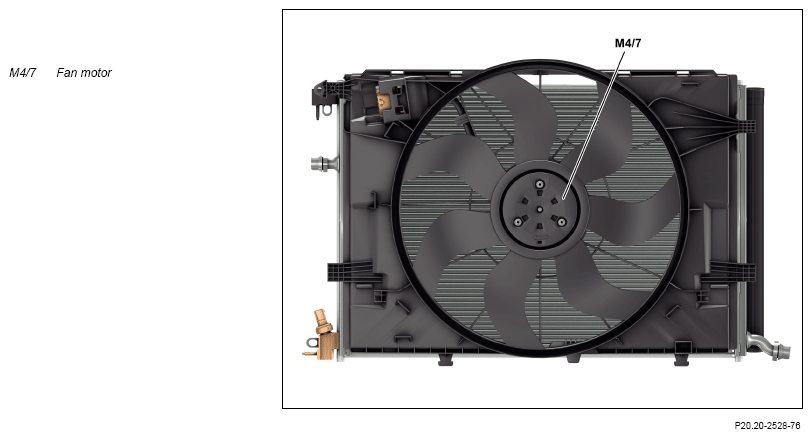

Shown on fan housing from rear

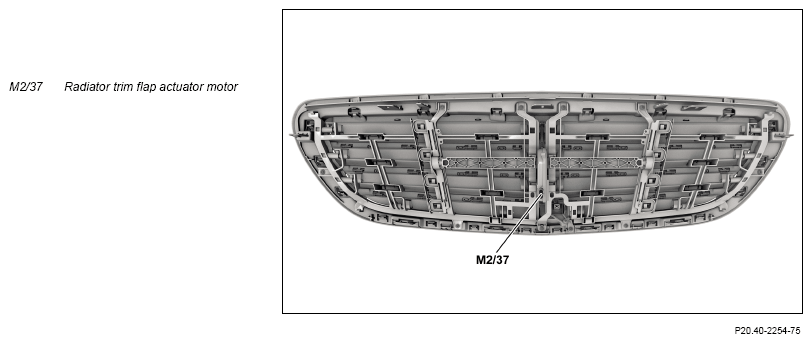

Shown on radiator grille from rear (with code 5U3 (AIRPANEL))

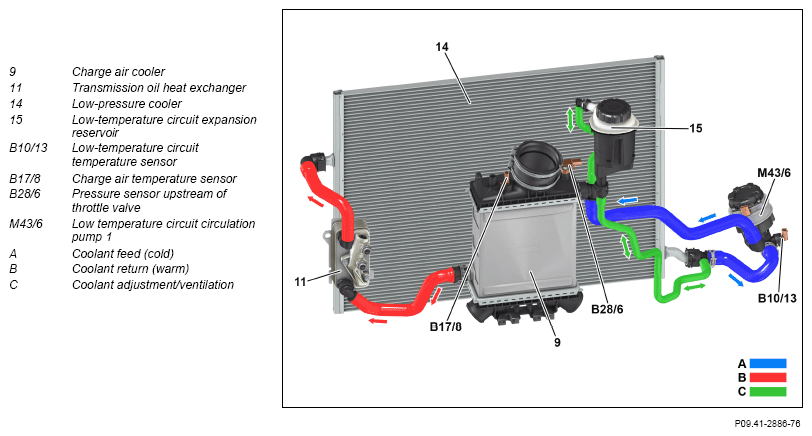

Shown on low-temperature cooler from rear

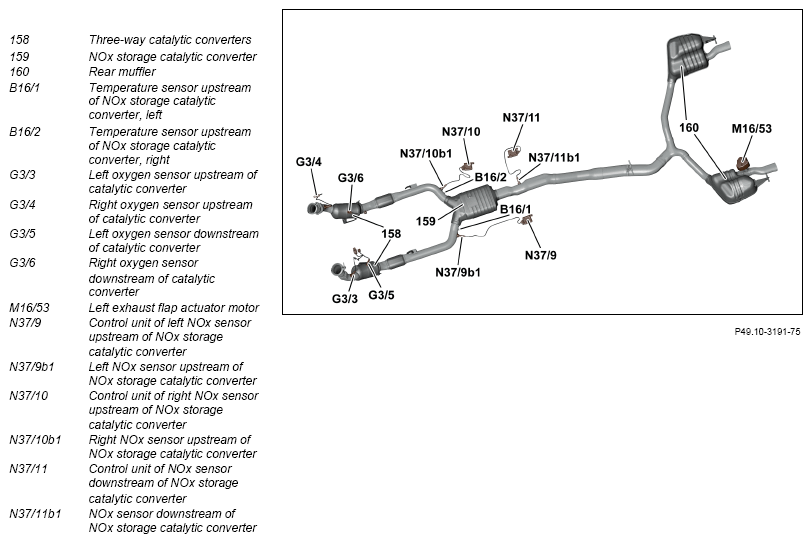

Shown on exhaust system (model 213 with code 920 (Gasoline direct injection with stratified charge) and with code U21 (AMG performance exhaust system))

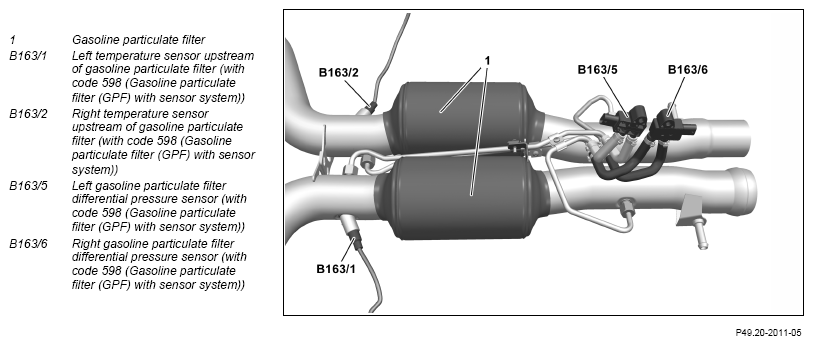

Shown: gasoline particulate filter (with code 598 (gasoline particulate filter (OPF) with sensor system))

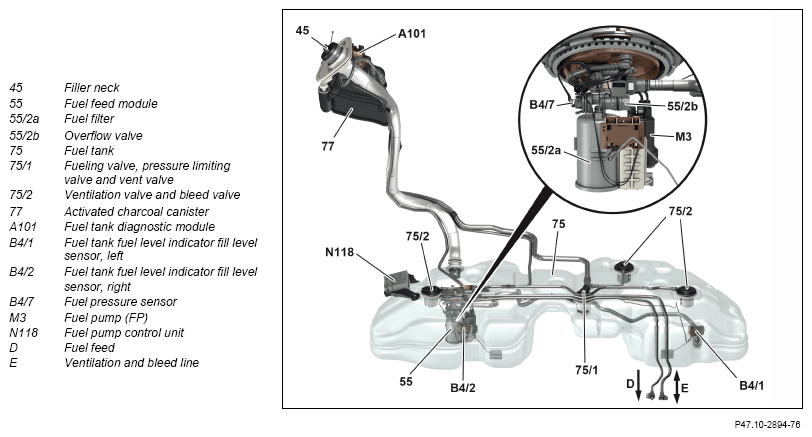

Phantom view of fuel tank (with CODE 494 (USA version))

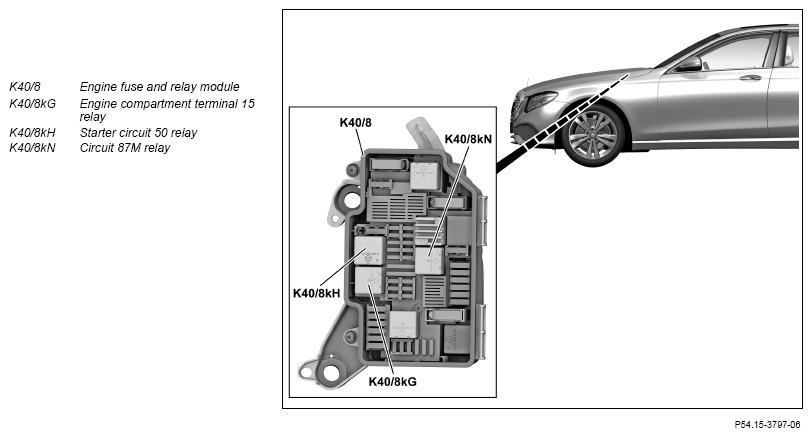

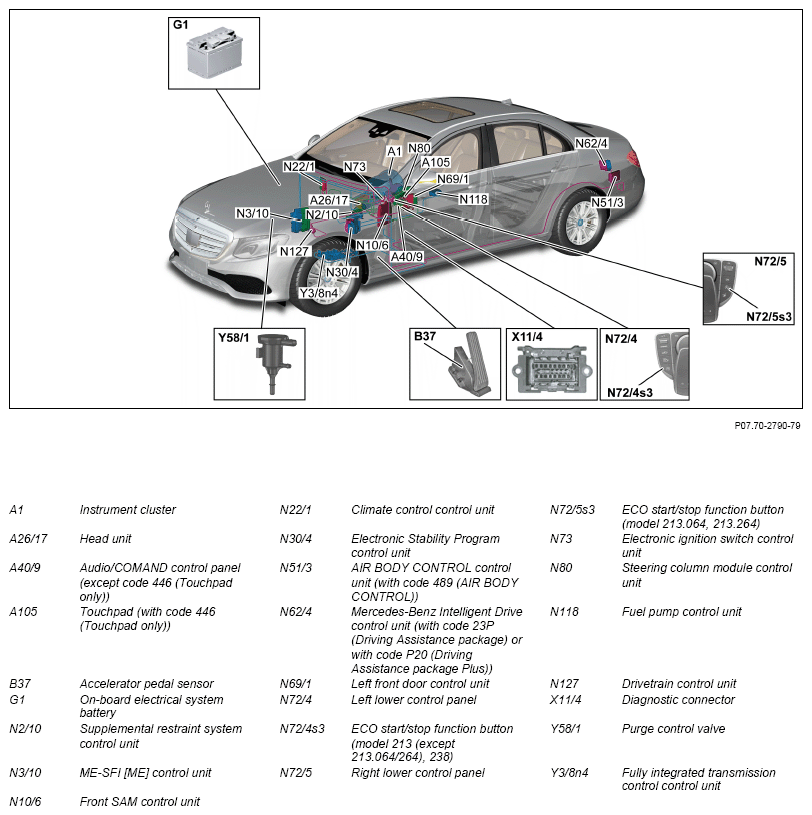

Shown on engine fuse and relay module (K40/8)
