Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRD
Engine 274.9 in model 213 (except 213.050/053/153), 238
up to model year 2021

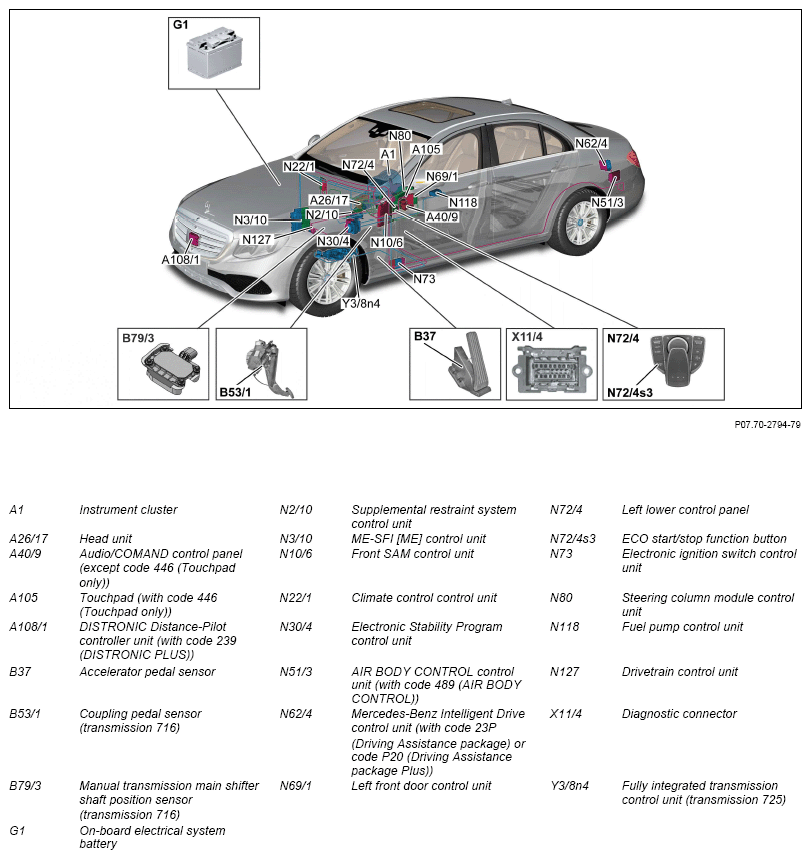

Vehicle view from the front left, shown on model 213.0

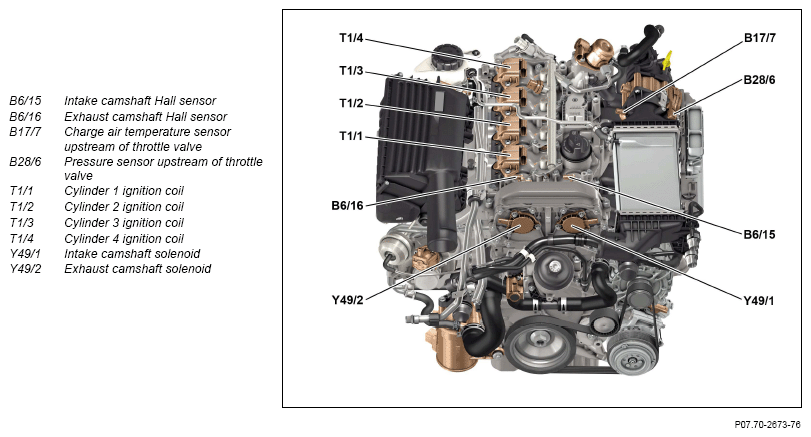

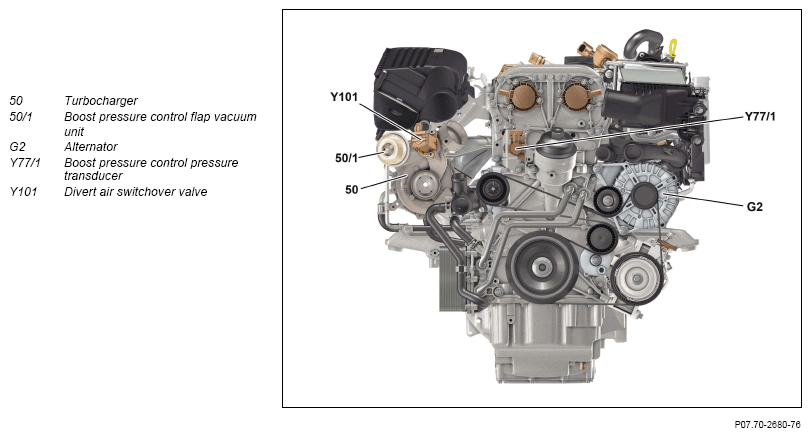

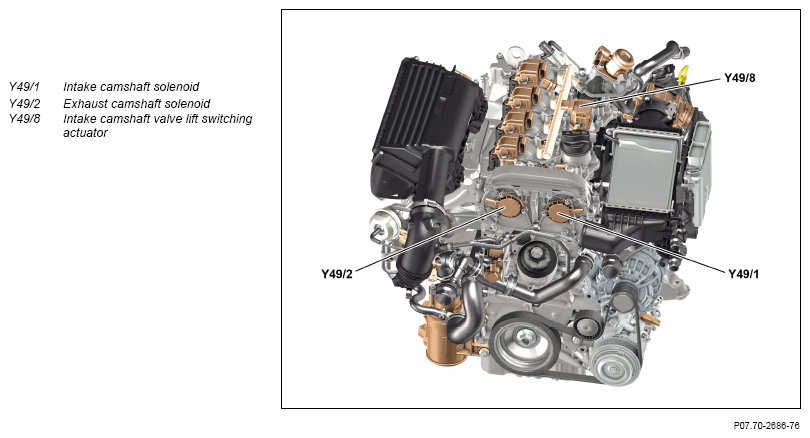

View of engine from the front top, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)

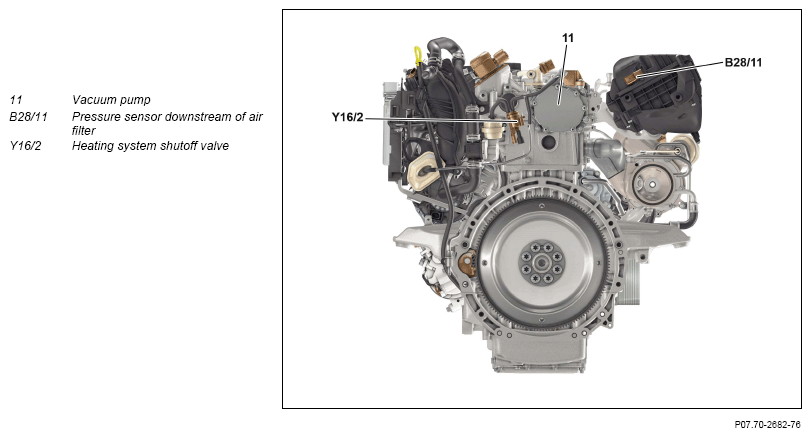

View of engine from the front top, shown on engine 274.910
View of engine from the front top, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)

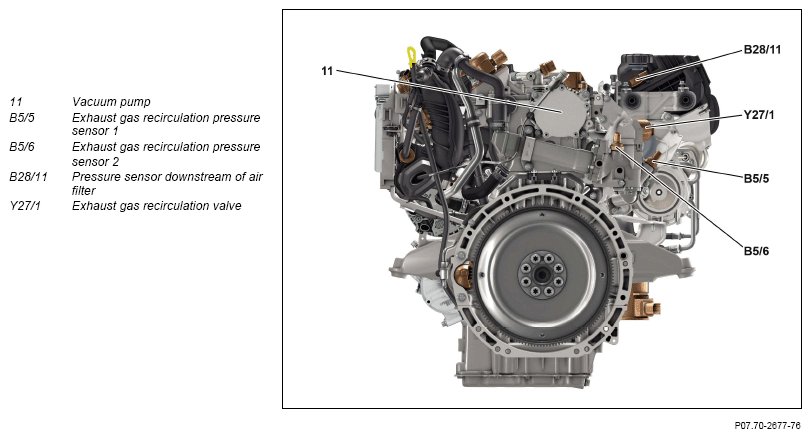

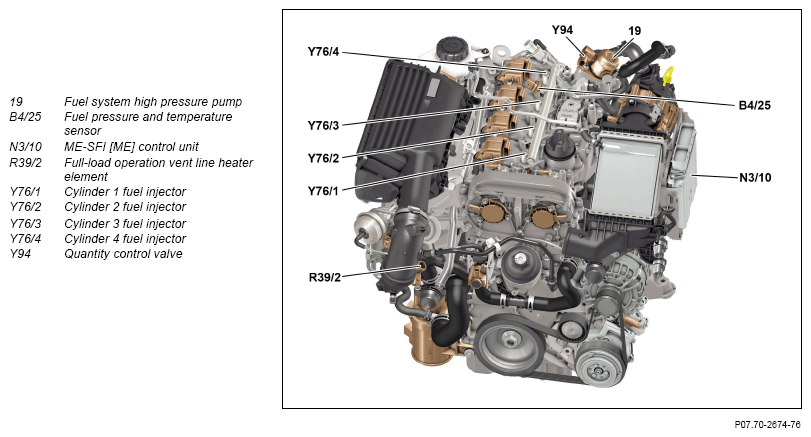

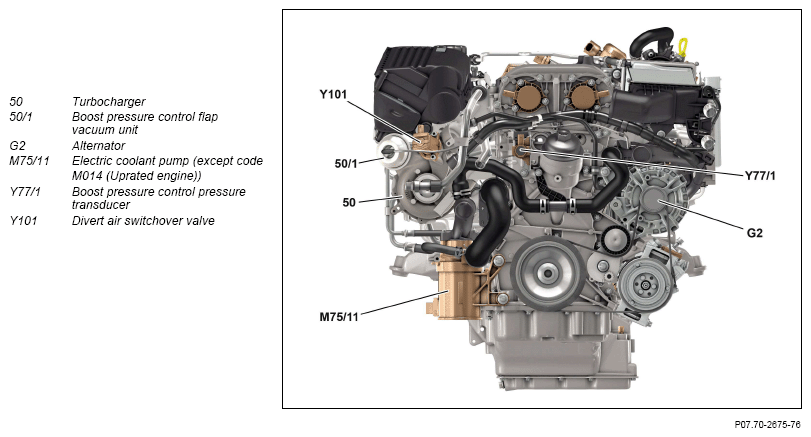

View of engine from the front, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)
View of engine from the front, shown on engine 274.920 with code M014 (Uprated engine) and code 494 (USA version)

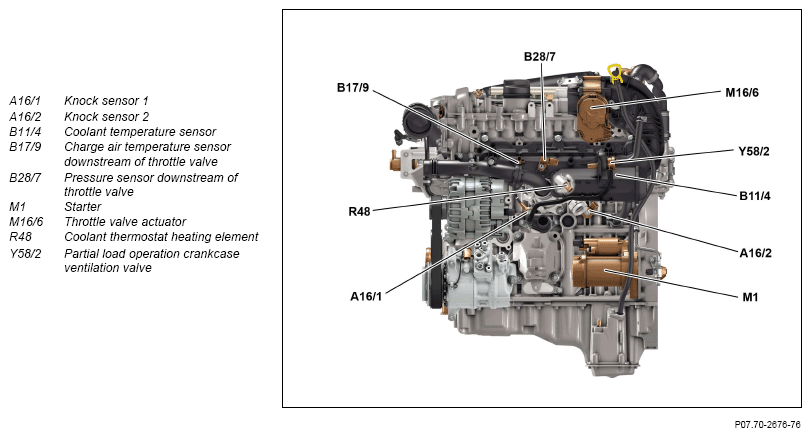

View of engine from the left, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)
View of the engine from the left, shown on engine 274.920 with code M014 (Uprated engine) and code 494 (USA version)

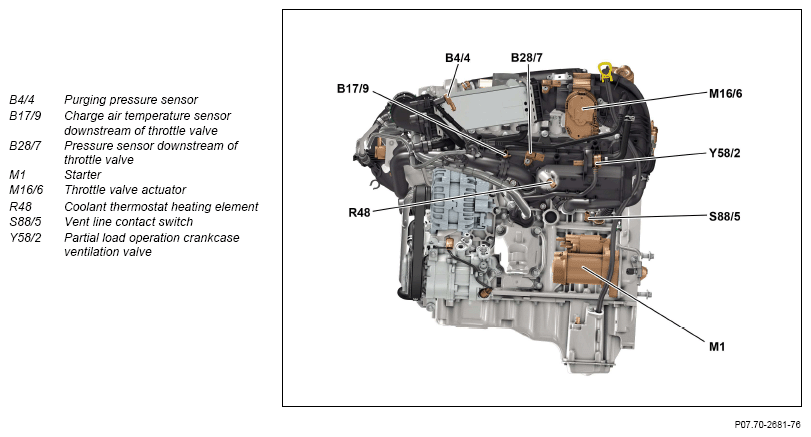

View of engine from the rear, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)
View of the engine from the rear, shown on engine 274.920 with code M014 (Uprated engine) and code 494 (USA version)
View of engine from the right, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)

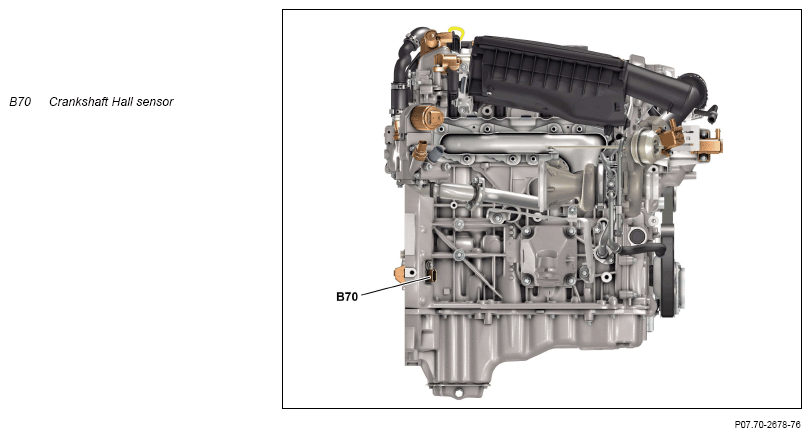

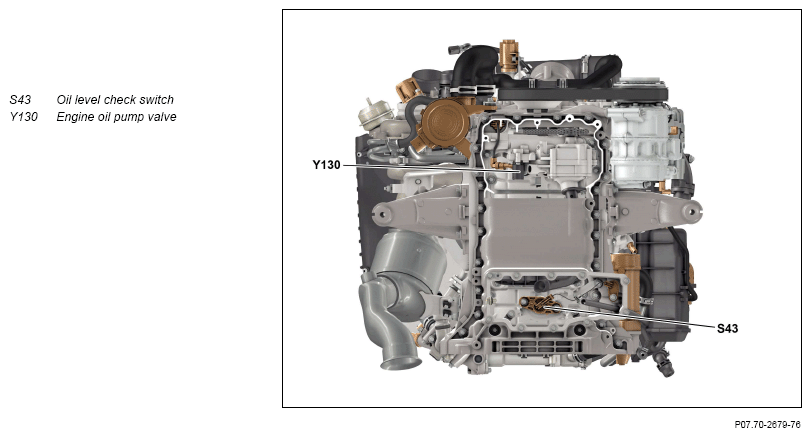

View of engine from below, shown on engine 274.920 with code 920 (Gasoline direct injection with stratified charge)

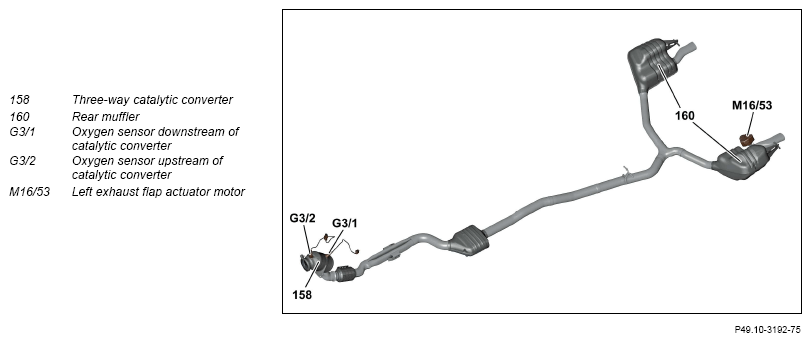

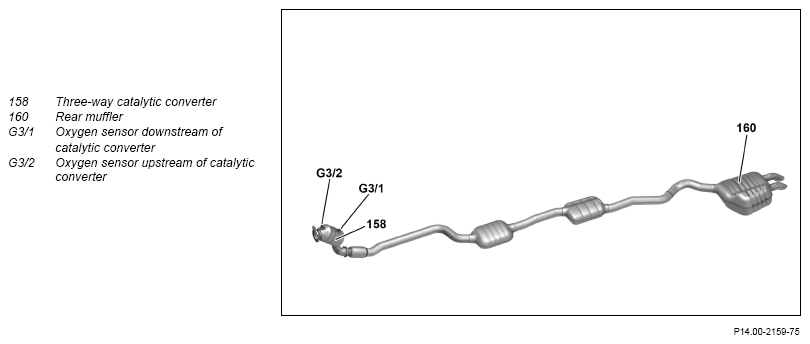

Exhaust system, shown on model 213 except code 920 (Gasoline direct injection with stratified charge)
Exhaust system, shown on model 213 with code U21 (AMG Performance exhaust system)

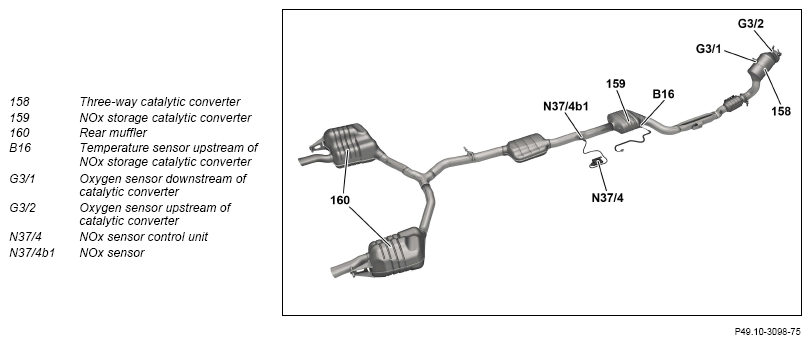

Exhaust system, shown on model 213 with code 920 (Gasoline direct injection with stratified charge)

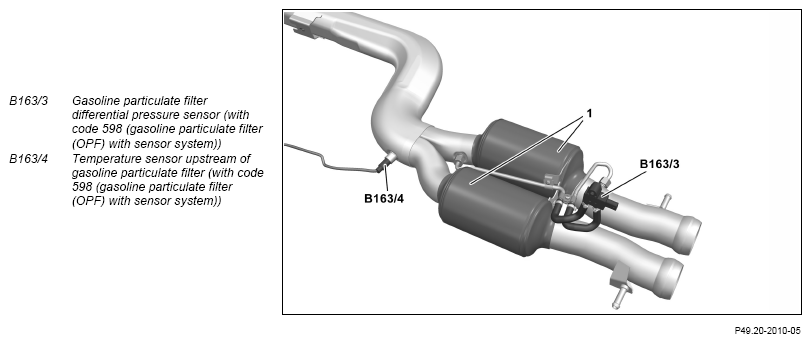

Gasoline particulate filter (1) (with code 598 (Gasoline particulate filter (GPF) with sensor system))

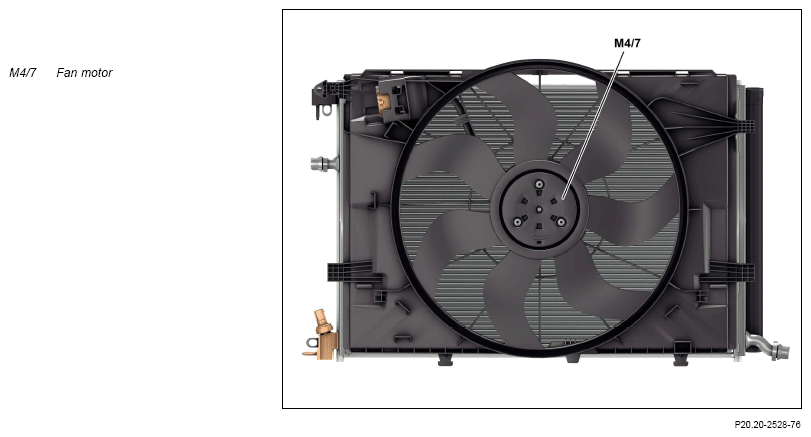

View from fan housing from the rear

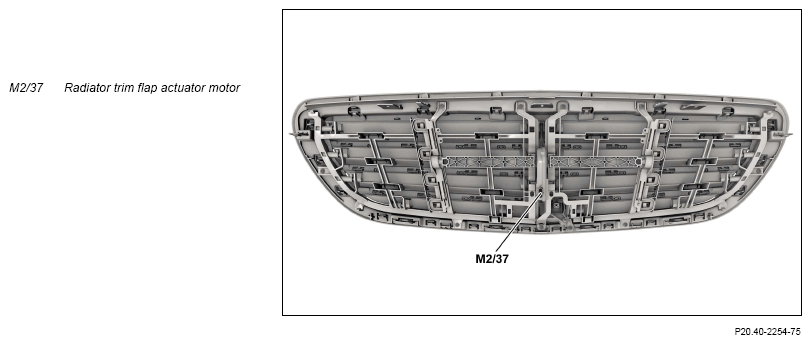

View of radiator grille from the rear (model 213 with code 5U3 (AIRPANEL))

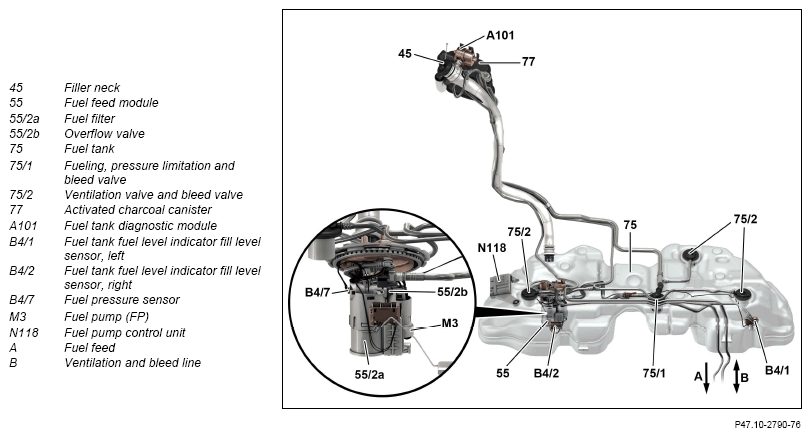

Fuel tank, shown on model 213 with code 916 (Fuel tank 66 l) and except code 494 (USA version)

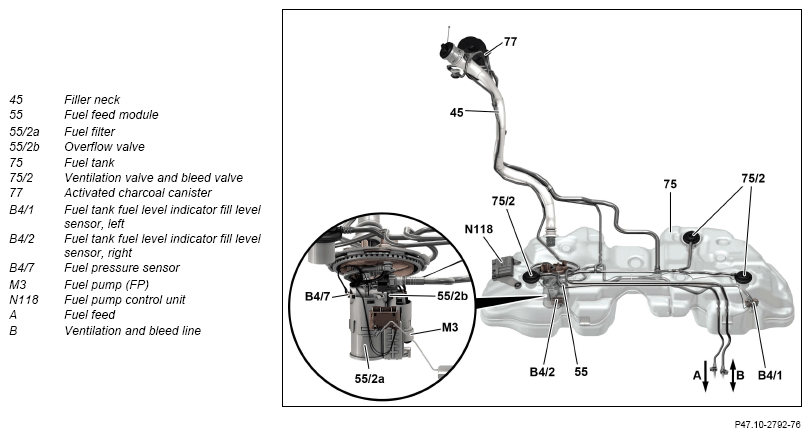

Fuel tank, shown on model 213 with code 494 (USA version)

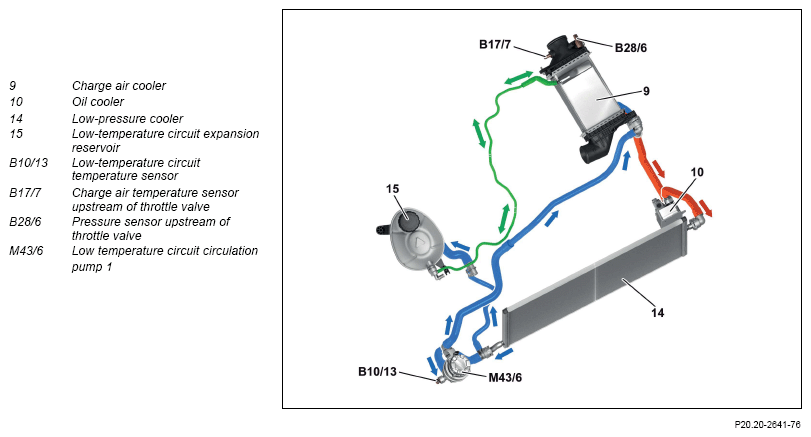

View of low-temperature circuit, shown on model 213

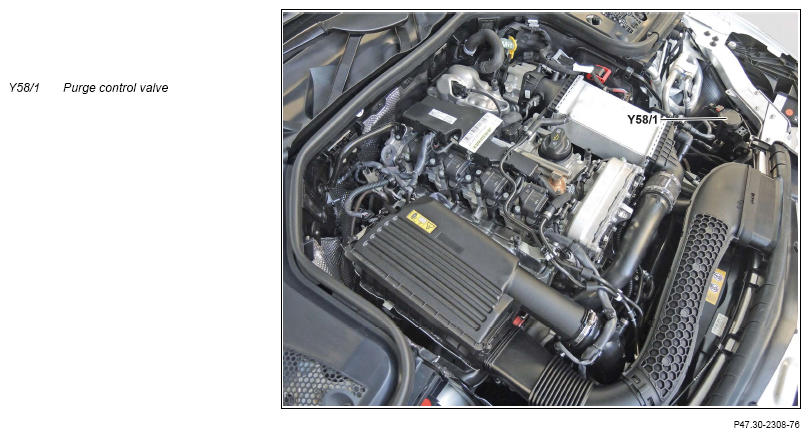

View of engine compartment from above, shown on model 213

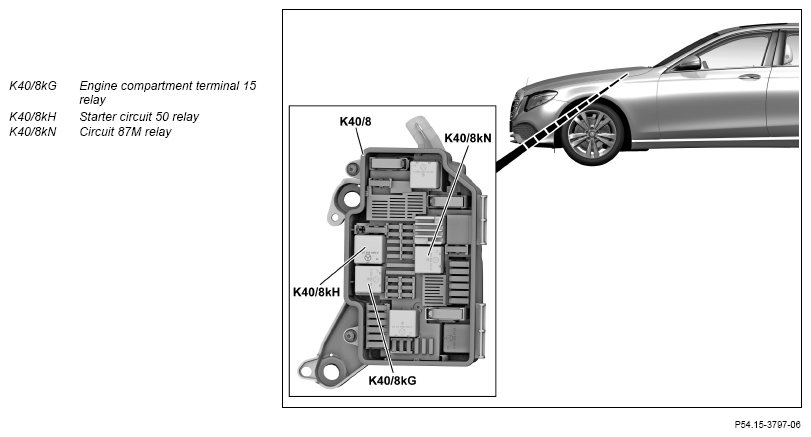

View of engine fuse and relay module (K40/8), shown on model 213
