Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRG
Engine 264.9 in model 213, 238, 257
up to model year 2021
Shown on model 238

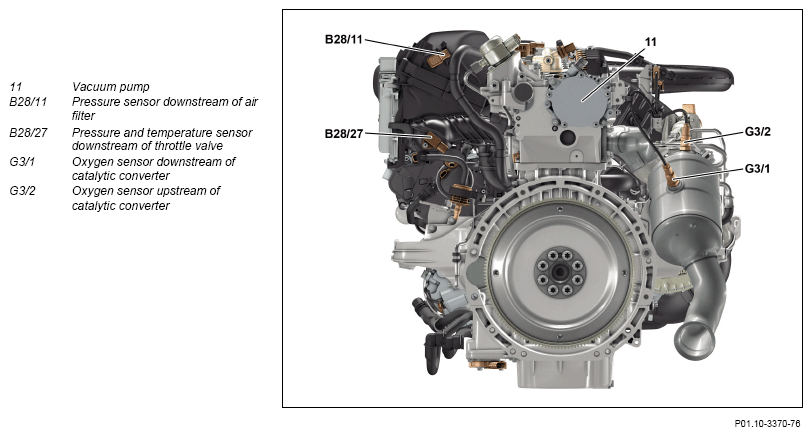

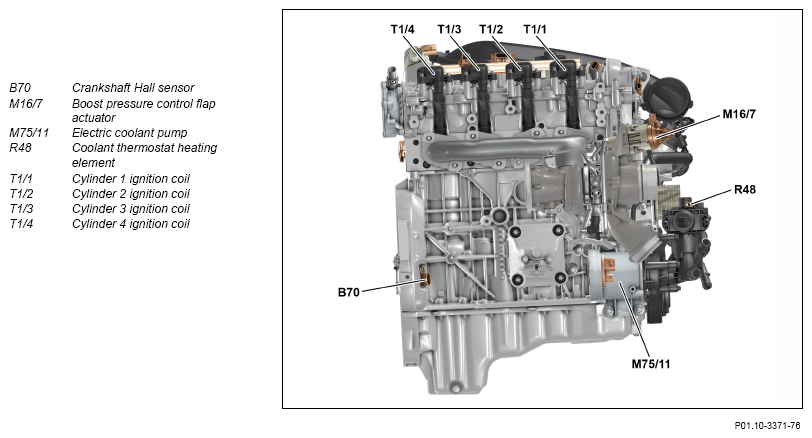

View from front

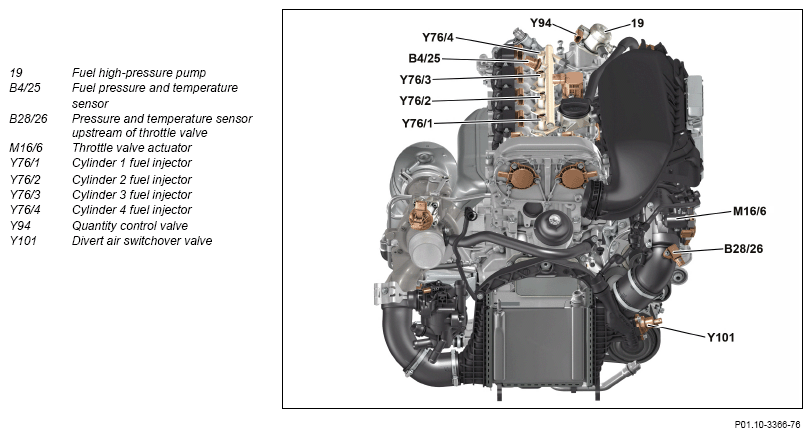

View from front top

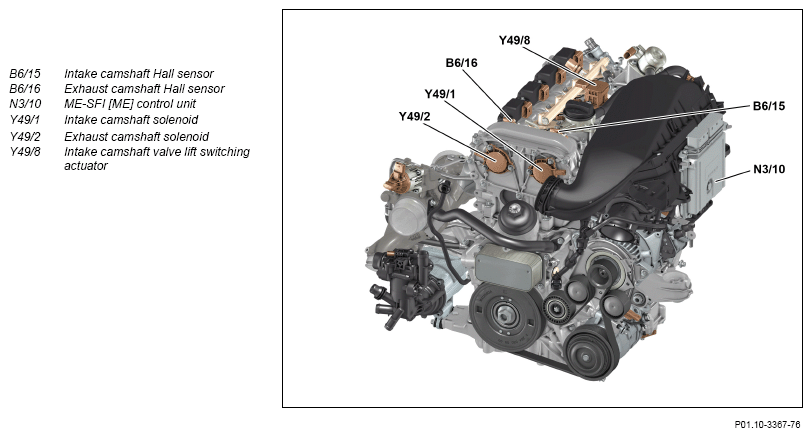

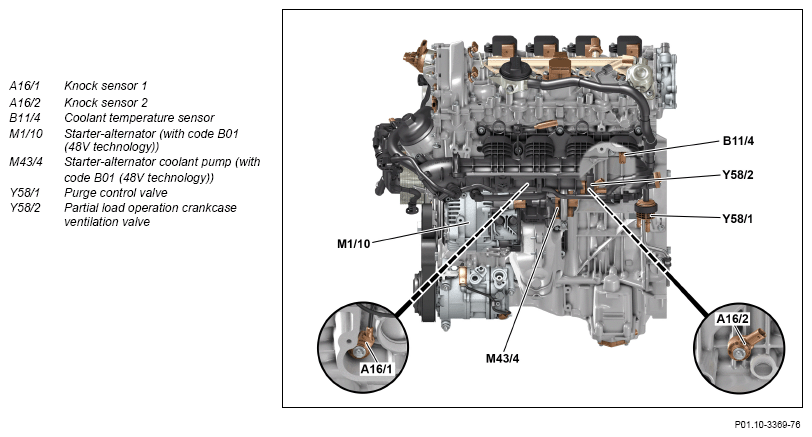

View from left, shown except code M005 (4MATIC)
View from rear, shown except code M005 (4MATIC)
View from right, shown except code M005 (4MATIC)

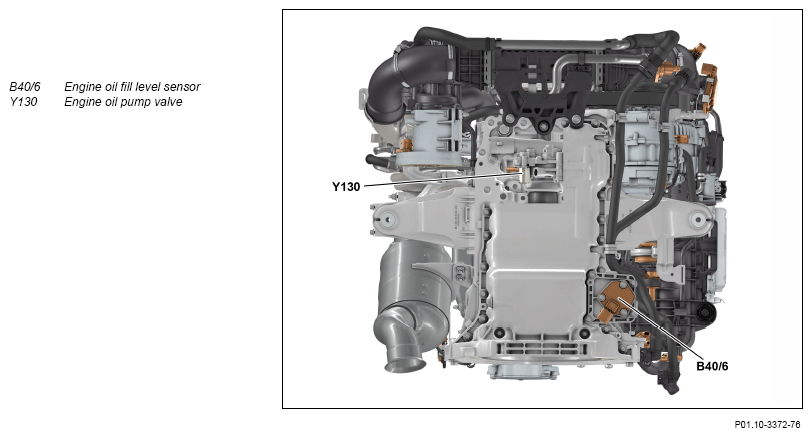

View from below, shown except code M005 (4MATIC)

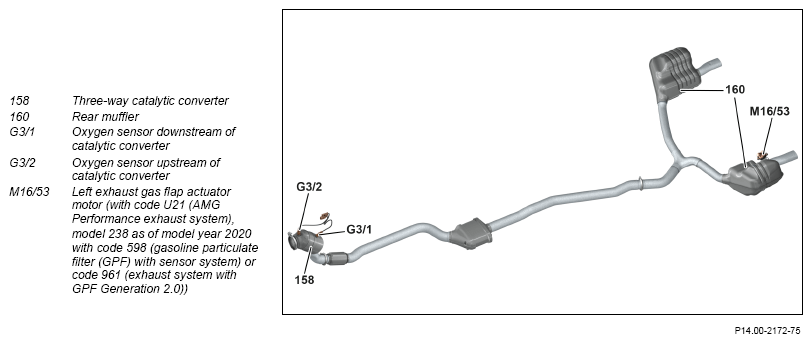

Exhaust system, shown on model 238 with code U21 (AMG performance exhaust system)

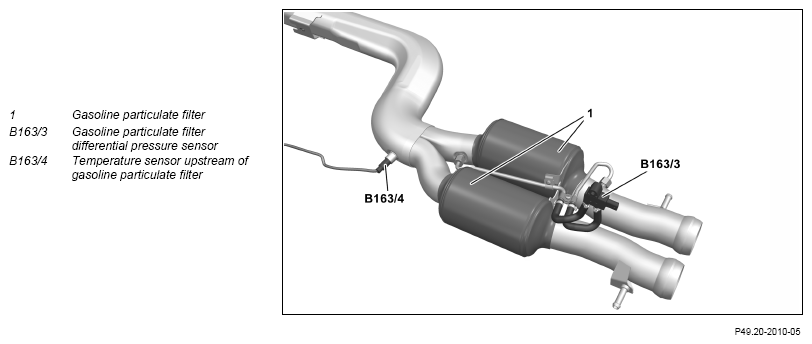

Gasoline particulate filter (with code 598 (Gasoline particulate filter (GPF) with sensor system) or code 961 (Exhaust system with GPF generation 2.0))

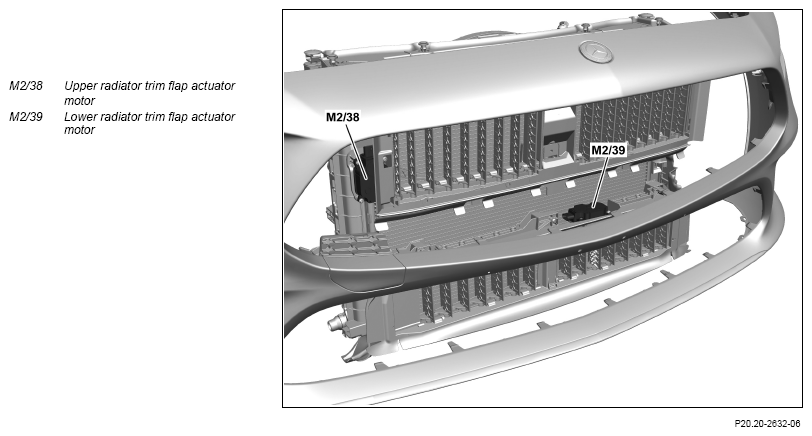

Radiator trim flaps (with code 2U1 (Radiator shutters)), shown on model 257

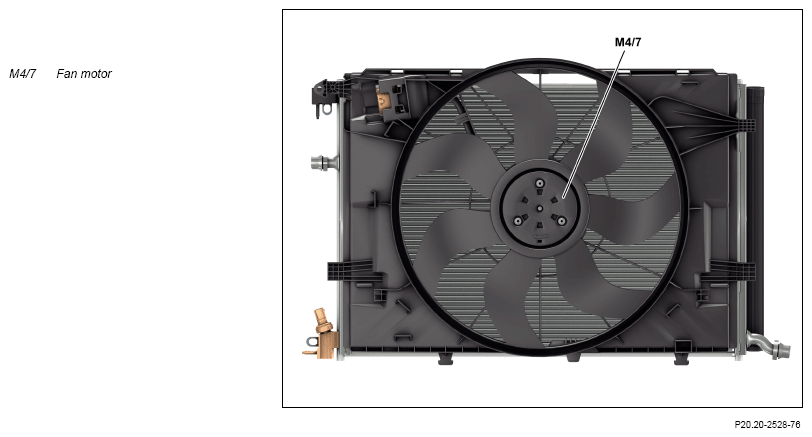

Fan housing, view from rear

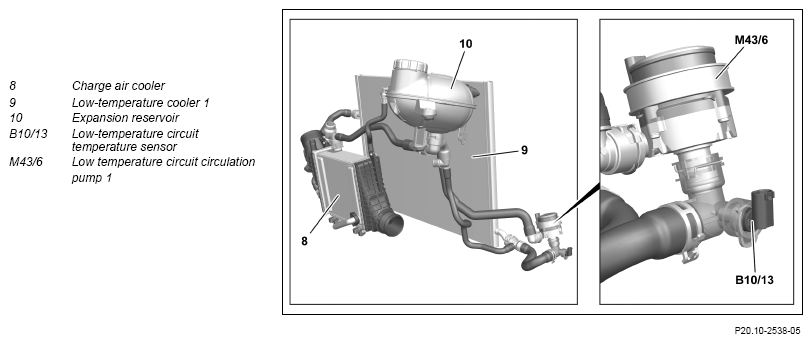

Low-temperature circuit 1, shown on model 238.3 except code B01 (48V technology)

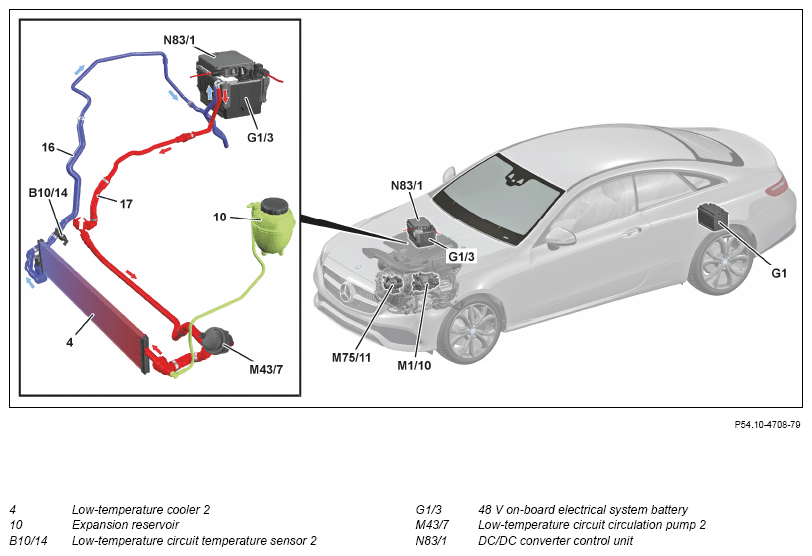

Low-temperature circuit 2 (with code B01 (48V technology)), shown on model 238.3

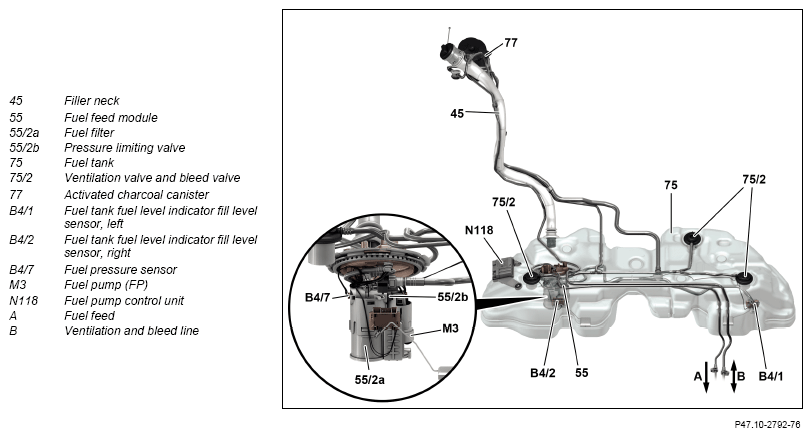

Fuel tank, shown on model 213 with code 916 (Fuel tank 66 l) and except code 494 (USA version)

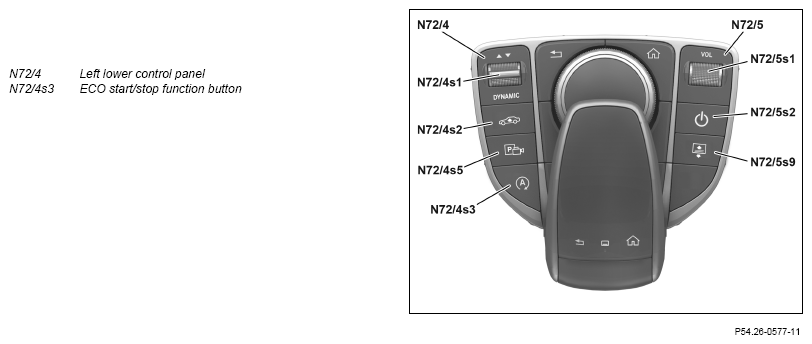

Lower control panels, shown with code 448 (Touchpad)

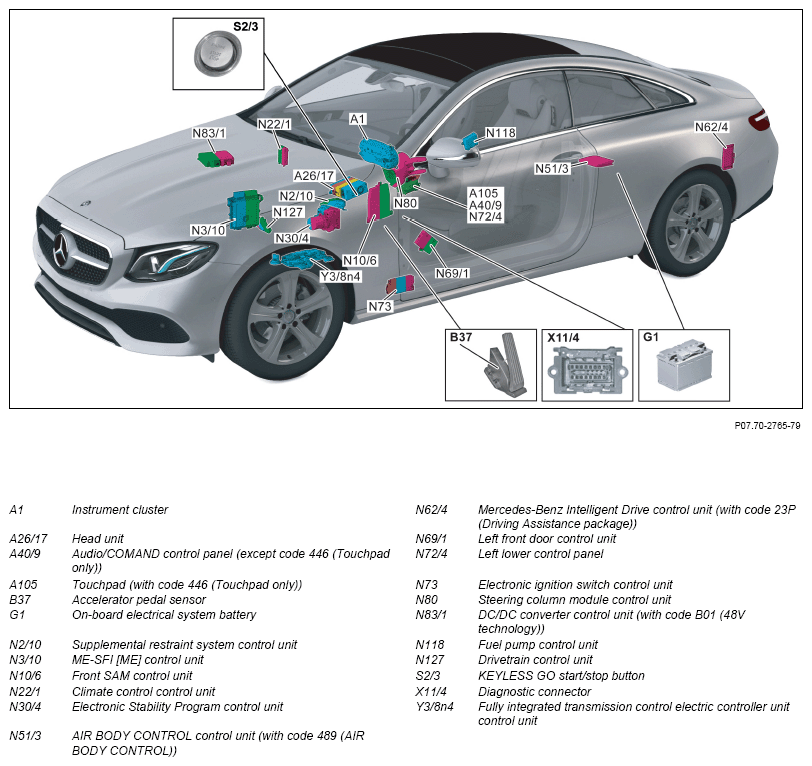

| Component description for instrument cluster | Engine 264.9 in model 213 up to model year 2021 A1 | GF54.30-P-6000FG | |
| Engine 264.9 in model 238 up to model year 2021 A1 | GF54.30-P-6000FH | ||
| Engine 264.9 in model 257 up to model year 2021 A1 | GF54.30-P-6000FR | ||
| Head unit, component description | Engine 264.9 in model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Engine 264.9 in model 213 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGB | |
| Engine 264.9 in model 238 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Engine 264.9 in model 238 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FHC | ||
| Engine 264.9 in model 257 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | ||
| Engine 264.9 in model 257 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND control panel | Engine 264.9 in model 213 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FG | |
| Engine 264.9 in model 238 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | ||
| Engine 264.9 in model 257 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FR | ||
| Touchpad, component description | Engine 264.9 in model 213 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FG | |
| Engine 264.9 in model 238 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FH | ||
| Engine 264.9 in model 257 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FR | ||
| Component description for starter-alternator | Engine 264.9 in model 213 up to model year 2021 with code B01 (48V technology) M1/10 | GF15.40-P-2103FG | |
| Engine 264 in model 238 up to model year 2021 with code B01 (48V technology) M1/10 | GF15.40-P-2103FH | ||
| Engine 264 in model 257 up to model year 2021 with code B01 (48V technology) M1/10 | GF15.40-P-2103FR | ||
| Supplemental restraint system control unit, component description | Engine 264.9 in model 213 up to model year 2021 N2/10 | GF91.60-P-4080FG | |
| Engine 264.9 in model 238 up to model year 2021 N2/10 | GF91.60-P-4080FH | ||
| Engine 264.9 in model 257 up to model year 2021 N2/10 | GF91.60-P-4080FR | ||
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MRG | |
| Component description for front SAM control unit | Engine 264.9 in model 213 up to model year 2021 N10/6 | GF54.21-P-7010FG | |
| Engine 264.9 in model 238 up to model year 2021 N10/6 | GF54.21-P-7010FH | ||
| Engine 264.9 in model 257 up to model year 2021 N10/6 | GF54.21-P-7010FR | ||
| Climate control, control unit, component description | Engine 264.9 in model 213 up to model year 2021 N22/1 | GF83.40-P-2250FG | |
| Engine 264.9 in model 238 up to model year 2021 N22/1 | GF83.40-P-2250FH | ||
| Engine 264.9 in model 257 up to model year 2021 N22/1 | GF83.40-P-2250FR | ||
| Component description for Electronic Stability Program control unit | Engine 264.9 in model 213 up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Engine 264.9 in model 238 up to model year 2021 N30/4 | GF42.45-P-5119FH | ||
| Engine 264.9 in model 257 up to model year 2021 N30/4 | GF42.45-P-5119FR | ||
| AIR BODY CONTROL, control unit, component description | Engine 264.9 in model 213 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FG | |
| Engine 264.9 in model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FH | ||
| Engine 264.9 in model 257 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FR | ||
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 264.9 in model 213 up to model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FG | |
| Engine 264.9 in model 238 up to model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FH | ||
| Engine 264.9 in model 257 up to model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FR | ||
| Component description for left front door control unit | Engine 264.9 in model 213 up to model year 2021 N69/1 | GF72.29-P-6001FG | |
| Engine 264.9 in model 238 up to model year 2021 N69/1 | GF72.29-P-6001FH | ||
| Engine 264.9 in model 257 up to model year 2021 N69/1 | GF72.29-P-6001FR | ||
| Lower control panel, component description | Engine 264.9 in model 213 up to model year 2021 N72/4 | GF54.25-P-4270FG | |
| Engine 264.9 in model 238 up to model year 2021 N72/4 | GF54.25-P-4270FH | ||
| Engine 264.9 in model 257 up to model year 2021 N72/4 | GF54.25-P-4270FR | ||
| Component description for the electronic ignition lock control unit | Engine 264.9 in model 213 up to model year 2021 N73 | GF80.57-P-6001FG | |
| Engine 264.9 in model 238 up to model year 2021 N73 | GF80.57-P-6001FH | ||
| Engine 264.9 in model 257 up to model year 2021 N73 | GF80.57-P-6001FR | ||
| Component description for steering column tube module control unit | Engine 264.9 in model 213 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Engine 264.9 in model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Engine 264.9 in model 238 up to model year 2019 N80 | GF54.21-P-6051FH | ||
| Engine 264.9 in model 238 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FHG | ||
| Engine 264.9 in model 257 up to model year 2021 N80 | GF54.21-P-6051FR | ||
| Component description for DC/DC converter control unit | Engine 264.9 in model 213 up to model year 2021 with code B01 (48V technology) N83/1 | GF54.10-P-3006FG | |
| Engine 264.9 in model 238 up to model year 2021 with code B01 (48V technology) N83/1 | GF54.10-P-3006FH | ||
| Engine 264.9 in model 257 up to model year 2021 with code B01 (48V technology) N83/1 | GF54.10-P-3006FR | ||
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MRD | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MRP | |
| Fully integrated transmission control electric controller unit control unit, component description | Engine 264.9 in model 257 with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Component description for fully integrated transmission control unit | Engine 264.9 in model 213 with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5165ANL | |
| Engine 264.9 in model 238 with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5165FH | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MRG |
