Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRT
Engine 256.9 in model 213, 238, 257, 290
up to model year 2021
Engine 256.9 in model 222
Shown model 222.0

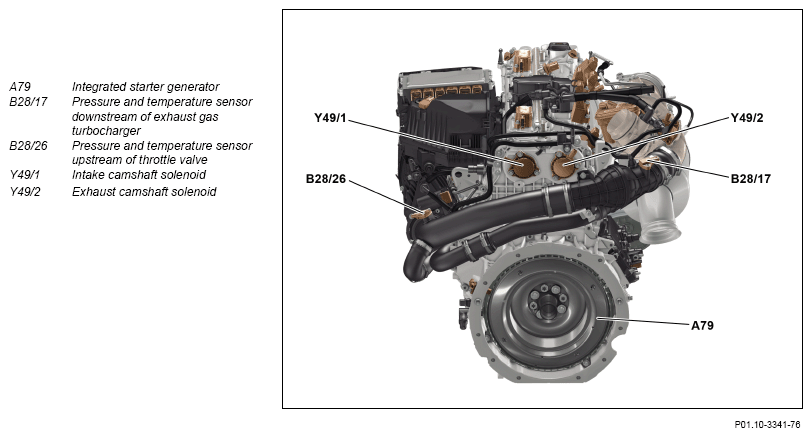

View from front, shown on model 222 except code M005 (4MATIC)

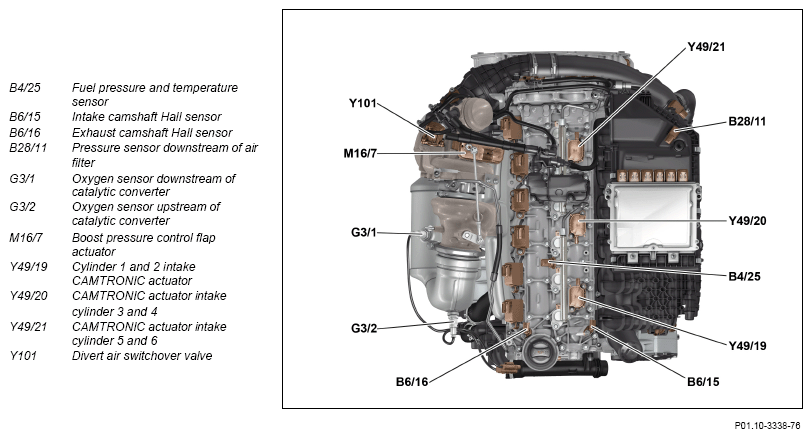

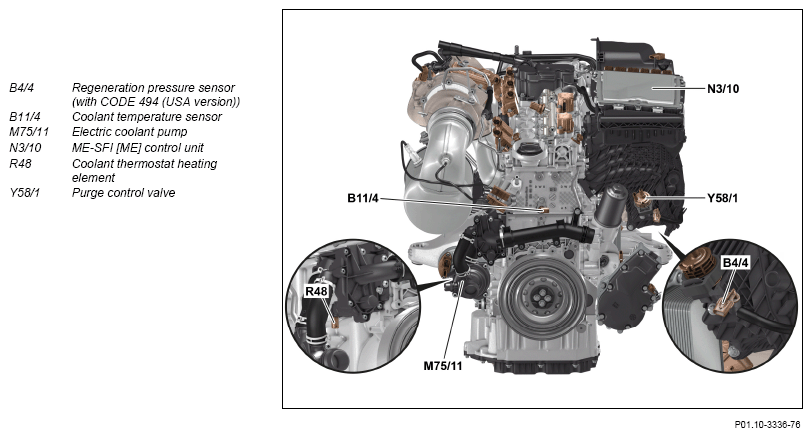

View from above, shown on model 222 except code M005 (4MATIC)

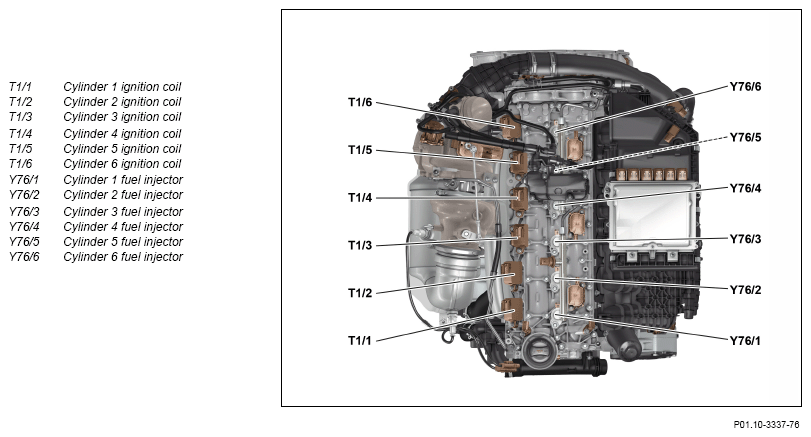

View from above, shown on model 222 except code M005 (4MATIC)

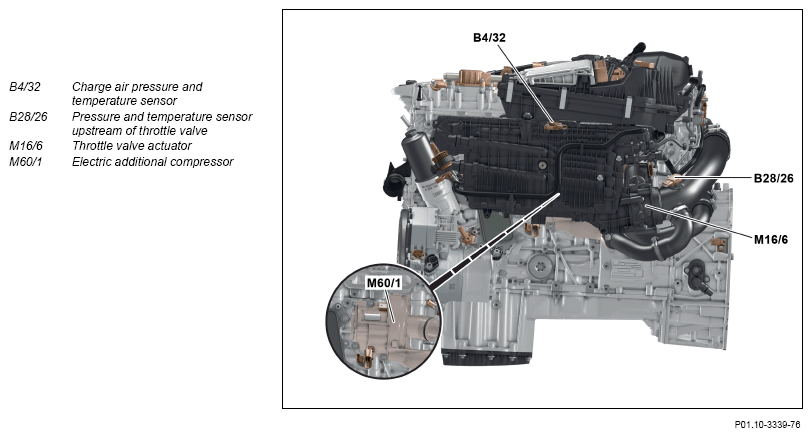

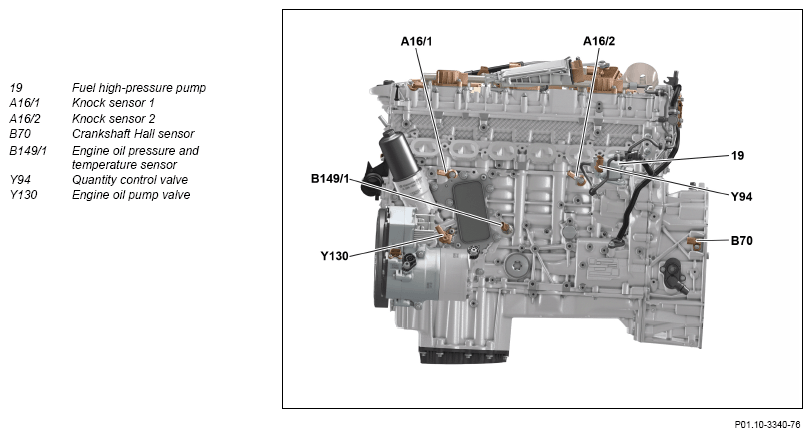

View from left, shown on model 222 except code M005 (4MATIC)
View from left, shown on model 222 except code M005 (4MATIC)
View from rear, shown on model 222 except code M005 (4MATIC)

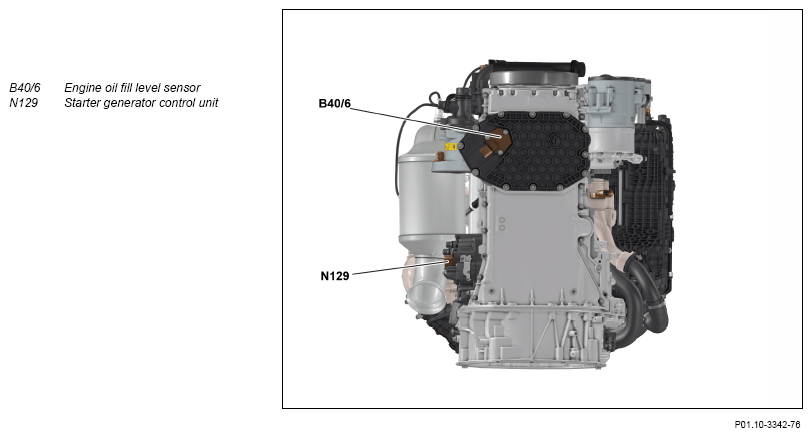

View of oil pan from underneath, shown on model 222 except code M005 (4MATIC)

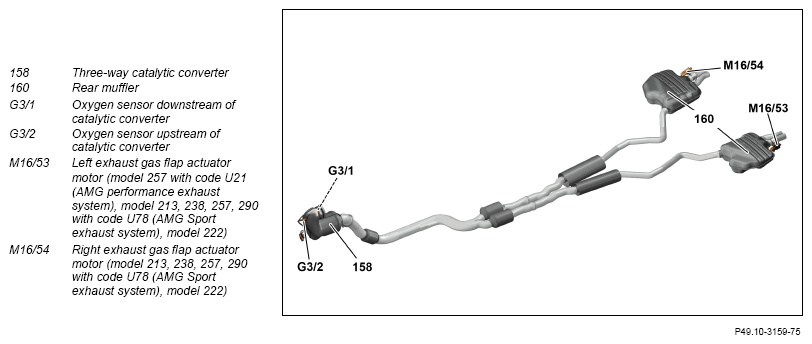

Exhaust system, shown on model 222

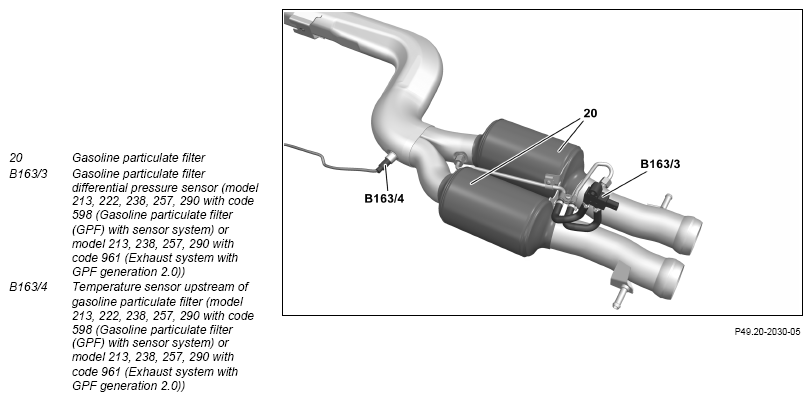

Shown on gasoline particulate filter (20) (model 238 with code 472 (Gasoline particulate filter) and model 213, 222, 238, 257, 290 with code 598 (Gasoline particulate filter (GPF) with sensor system) or model 213, 238, 257, 290 with code 961 (Exhaust system with GPF generation 2.0))

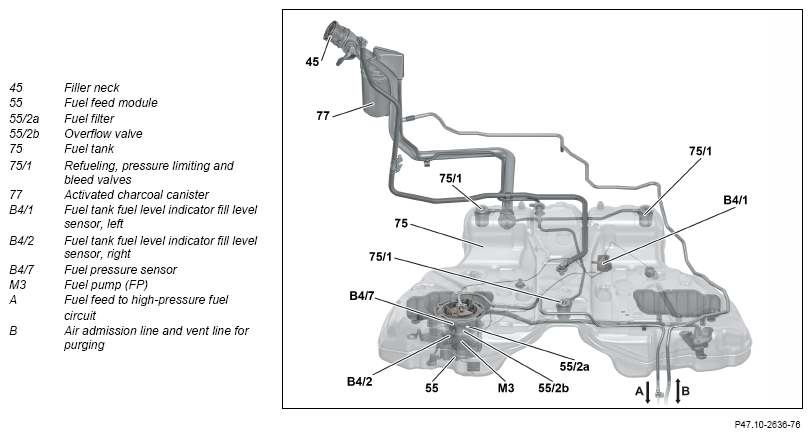

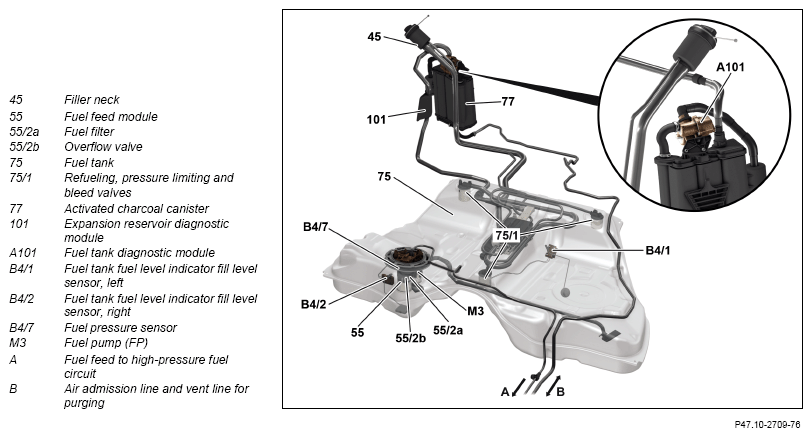

Phantom view of fuel tank (75), shown on model 222 except code 494 (USA version)
Phantom view of fuel tank (75), shown on model 222 (except 222.163) with code 494 (USA version)

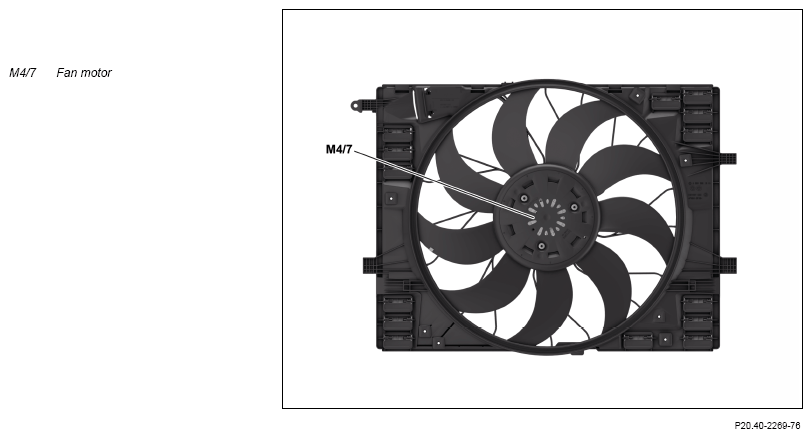

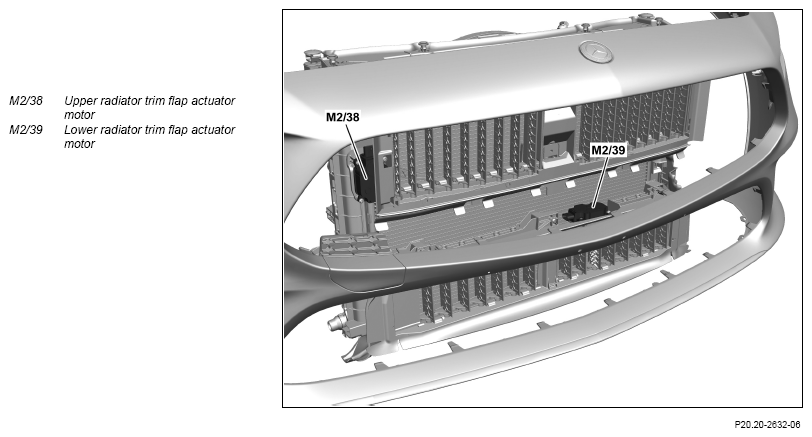

View of the radiator from the rear
Radiator trim flaps (model 222 with code 2U1 (Radiator shutters))
Radiator trim flaps (model 213, 238, 257 with code 2U1 (Radiator shutters)), shown on model 257

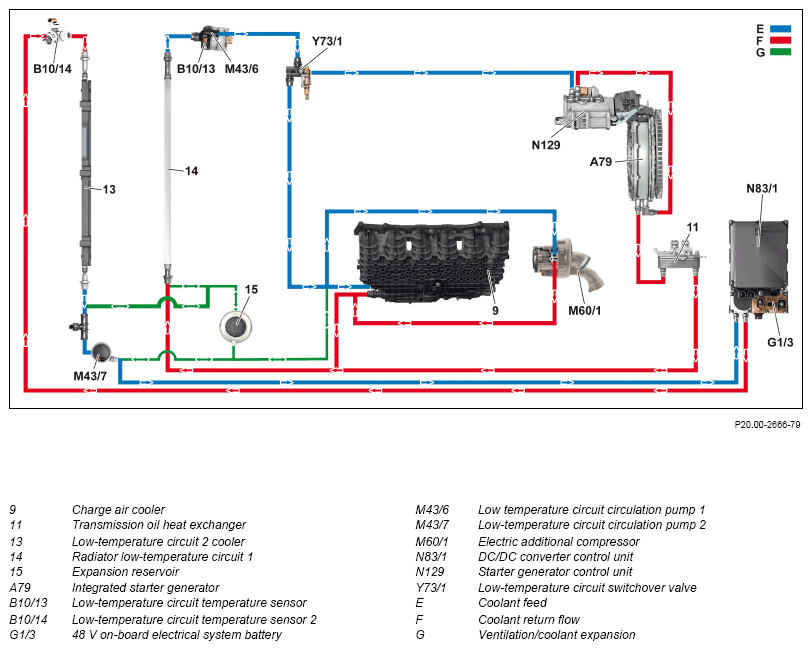

Shown on low-temperature circuits 1 and 2

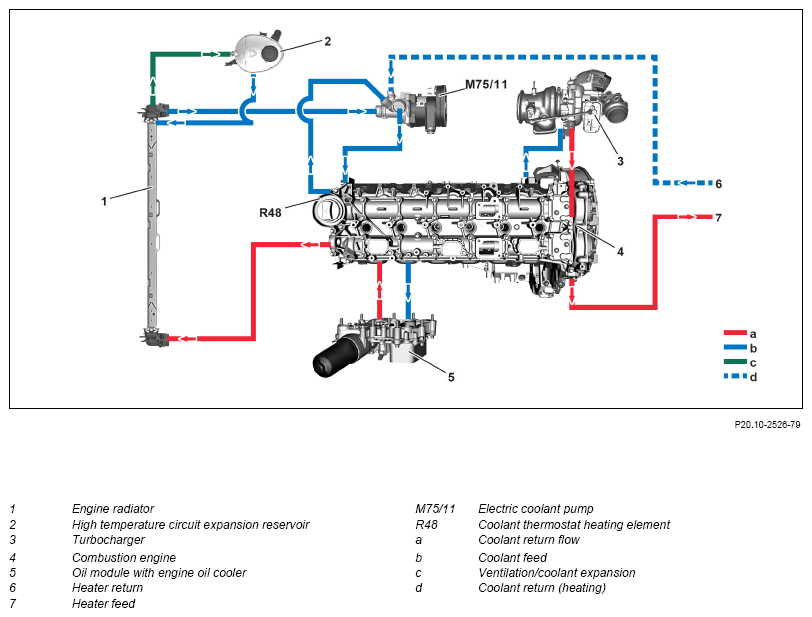

Shown on high temperature circuit

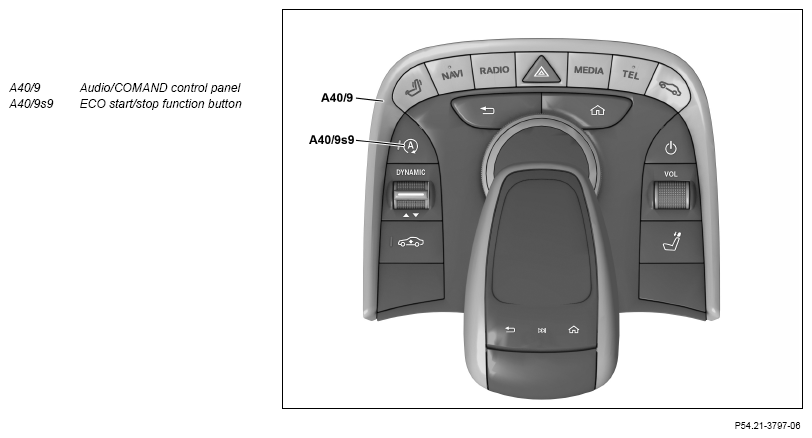

Shown on operating unit in center console (model 222 with code 448 (Touchpad))

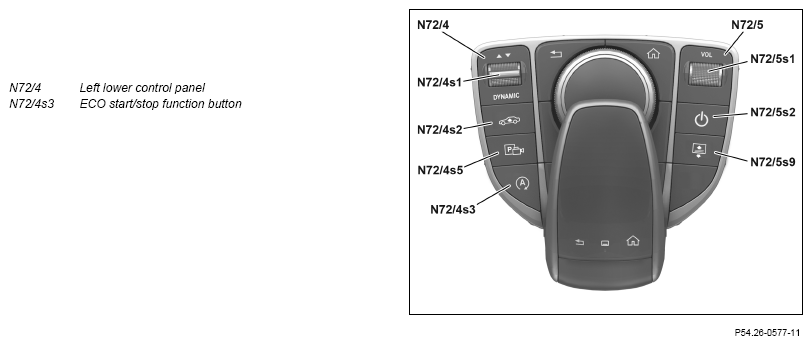

Left lower control panel (model 213, 238, 257, 290), shown with code 448 (Touchpad)

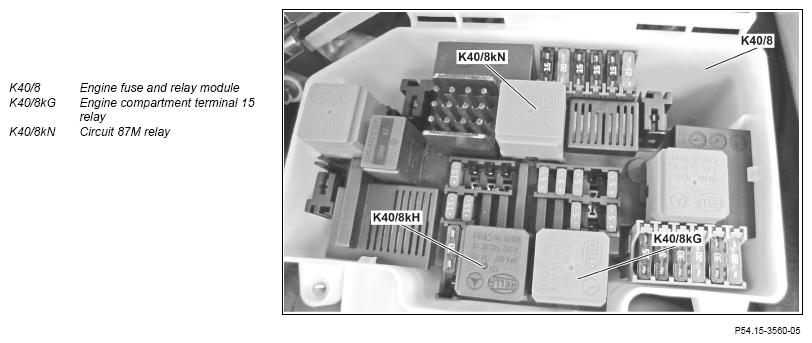

Shown is relay in left rear engine compartment
