Remove/Install Boost Pressure Control Pressure Transducer - AR07.17-P-7004MND
Engine 276.8 in model 213, 238
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove right engine air intake duct upstream of air filter | ||
| 3 | Release and disconnect electrical connection (2) | ||

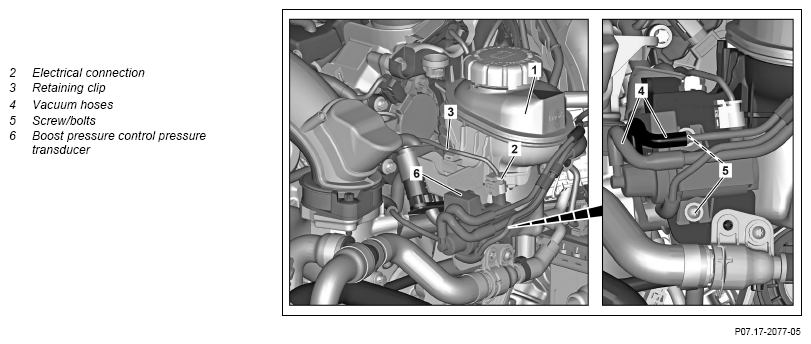

| 4 | Mark vacuum hoses (4) relative to the respective connections on boost pressure control pressure transducer (6) | ||
| 5 | Detach vacuum hoses (4) from boost pressure control pressure transducer (6) | ||
| 6 | Unfasten lower screw/bolt (5) and remove upper screw/bolt (5) and remove the boost pressure control pressure transducer (6) upwards | ||
| Install | |||
| 7 | Transfer marking on the new boost pressure control pressure transducer (6) | When replacing the boost pressure control pressure transducer (6). | |
| 8 | Insert boost pressure control pressure transducer (/6) and screw in screw/bolts (5) | ||
| 9 | Mount vacuum hoses (4) on marked connections of the boost pressure control pressure transducer (6) | ||
| 10 | Plug electrical connection (2) together and lock | ||
| 11 | Install right engine air intake duct upstream of air filter | ||
| 12 | Read out and erase fault memory | ||
| Engine 276 8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Conduct engine test run while checking for proper operation of the engine |
