Remove/Install Boost Pressure Control Pressure Transducer - AR07.17-P-7004MRD
Engine 274.9 in model 213
Engine 274.9 in model 238
Shown on engine 274.910 in model 213.040

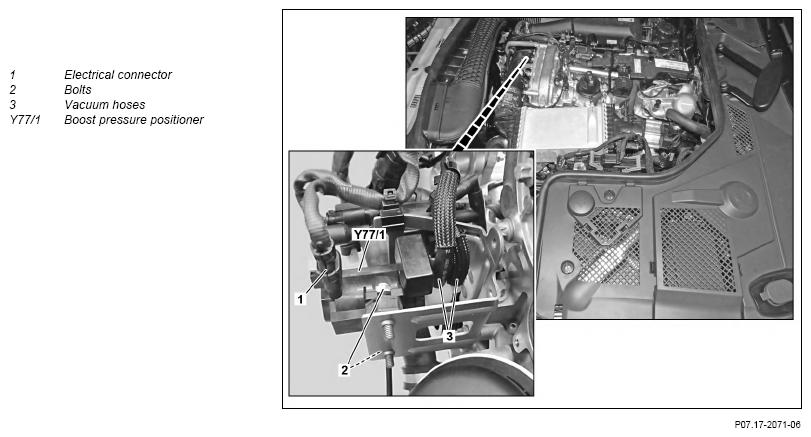

Fig 1: Boost Pressure Control Pressure Transducer Components Location - Engine 274.910 In Model 213.04
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | ||
| 2 | Remove engine air intake duct upstream of air filter. | ||
| 3 | Mark vacuum hoses (3) relative to the respective connection. | ||
| 4 | Detach vacuum hoses (3) from the boost pressure regulator (Y77/1). | ||
| 5 | Release electrical connector (1) and disconnect. | ||
| 6 | Remove screws (2) and remove boost pressure regulator (Y77/1). | ||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| Engine 274.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 274.9 in model 213 | AD00.00-P-2000-04B |
