Remove/Install Engine Management Control Unit (MCM) - AR07.08-P-7013MND
Engine 276.8 in model 213, 238
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Read out and save variant coding of the engine management control unit (3) using the diagnostic system | When replacing the engine management control unit (3). | |
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove upper engine cover | ||

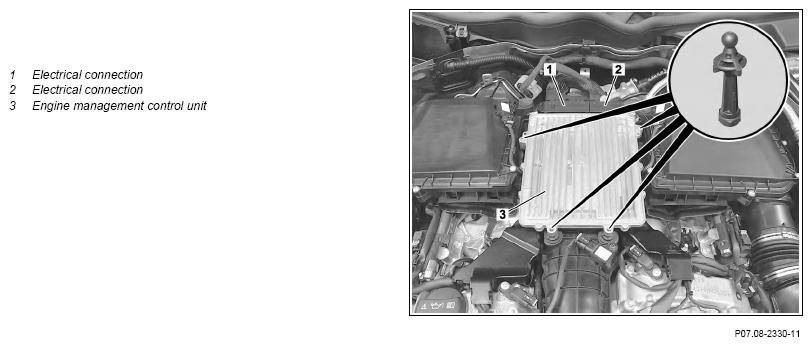

| 4 | Release and disconnect electrical connections (1, 2) on engine management control unit (3) | ||
| 5 | Unclip engine management control unit (3) upwards and take it off | ||
| 6 | Remove mount from engine management control unit (3) | When replacing the engine management control unit (3). | |
| Install | |||
| 7 | Attach mount to engine management control unit (3) | When replacing the engine management control unit (3). | |
| 8 | Insert engine management control unit (3) with mount into the bracket | ||
| 9 | Put together electrical connections (1, 2) and lock | ||
| 10 | Install upper engine cover | ||
| 11 | Switch on ignition | When replacing the engine management control unit (3). | |
| 12 | Transfer stored data to new engine management control unit (3) | When replacing the engine management control unit (3). | |
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| 13 | Release transport protection on engine management control unit (3) using the diagnostic system | When replacing the engine management control unit (3). | |
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| 14 | Personalize and activate engine management control unit (/3) using the diagnostic system | When replacing the engine management control unit (3). | |
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Carry out an engine test run |
