Remove/Install ME-SFI Control Unit - AR07.08-P-1000MRH
Engine 264 in model 213, 238, 257
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Start control unit replacement with vehicle diagnosis system. | When installing new ME-SFI [ME] control unit (N3/10). | |
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Disconnect ground line from battery. | Engine 264 in model 213 | AR54.10-P-0003LW |
| Engine 264 in model 238 | AR54.10-P-0003LWO | ||
| Engine 264 in model 257 | AR54.10-P-0003FR | ||

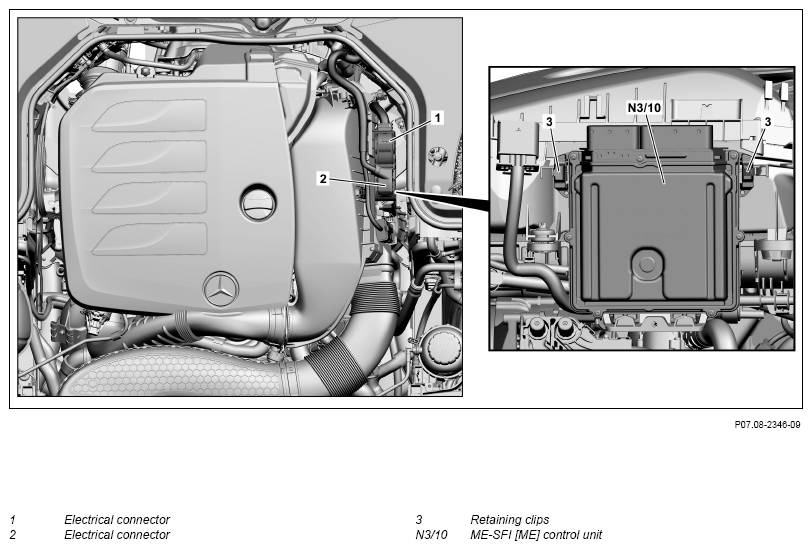

| 4 | Release and disconnect electrical connectors (1, 2). | ||
| 5 | Release retaining clamps (3) and take out ME-SFI [ME] control unit (N3/10) | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
