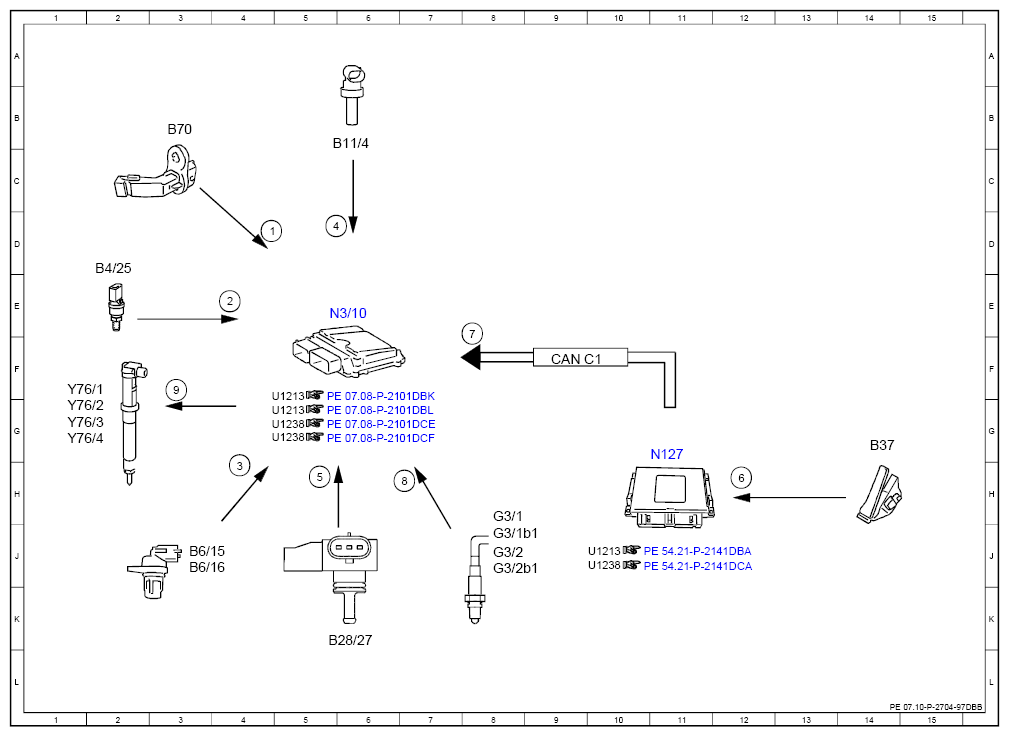

Electrical Function Diagram For Injection Control - PE07.10-P-2704-97DBB
Engine 264.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 4D |
| 2 | Fuel pressure and temperature sensor, signal | 4E |
| 3 | Camshaft Hall sensor, signal | 4H |
| 4 | Coolant temperature sensor, signal | 5D |
| 5 | Pressure and temperature sensor downstream of throttle valve, signal | 6H |
| 6 | Accelerator pedal sensor, signal | 12H |
| 7 | Accelerator pedal position, signal | 8F |
| 8 | Oxygen sensor, sensor element, signal | 7H |
| 9 | Fuel injectors, actuation | 3F |
| B11/4 | Coolant temperature sensor | 6B |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 6K |
| B37 | Accelerator pedal sensor | 14G |
| B4/25 | Fuel pressure and temperature sensor | 2D |
| B6/15 | Intake camshaft Hall sensor | 3J |
| B6/16 | Exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 3B |
| CAN C1 | Drive train CAN | 9F |
| G3/1 | Oxygen sensor downstream of catalytic converter | 8H |
| G3/1b1 | Sensor element of oxygen sensor downstream of catalytic converter | 8J |
| G3/2 | Oxygen sensor upstream of catalytic converter | 8J |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 8J |
| N127 | Drivetrain control unit | 11G |
| N3/10 | ME-SFI [ME] control unit | 6E |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1G |
| Y76/3 | Cylinder 3 fuel injector | 1G |
| Y76/4 | Cylinder 4 fuel injector | 1G |
