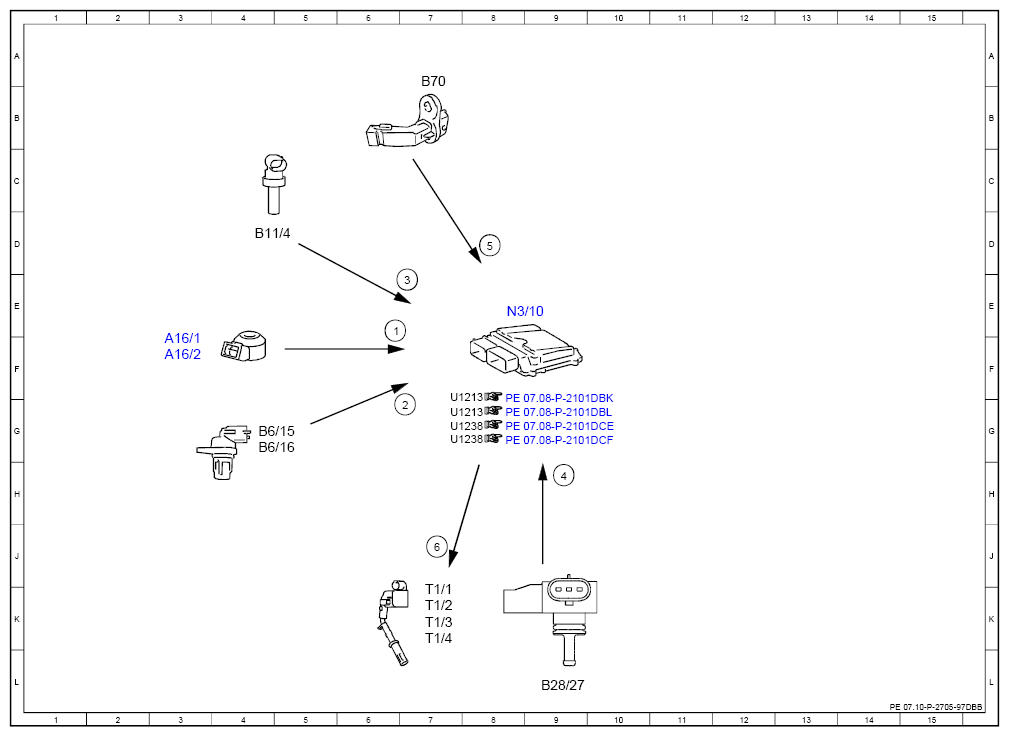

Electrical Function Schematic For Ignition System - PE07.10-P-2705-97DBB
Engine 264.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Knock sensor, signal | 6E |
| 2 | Camshaft Hall sensor, signal | 7G |
| 3 | Coolant temperature sensor, signal | 7D |
| 4 | Pressure sensor downstream of throttle valve, signal | 9H |
| 5 | Crankshaft Hall sensor, signal | 8D |
| 6 | Ignition coils, actuation | 7J |
| A16/1 | Knock sensor 1 | 3F |
| A16/2 | Knock sensor 2 | 3F |
| B11/4 | Coolant temperature sensor | 4D |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 9L |
| B6/15 | Intake camshaft Hall sensor | 4G |
| B6/16 | Exhaust camshaft Hall sensor | 4G |
| B70 | Crankshaft Hall sensor | 7A |
| N3/10 | ME-SFI [ME] control unit | 8E |
| T1/1 | Cylinder 1 ignition coil | 7K |
| T1/2 | Cylinder 2 ignition coil | 7K |
| T1/3 | Cylinder 3 ignition coil | 7K |
| T1/4 | Cylinder 4 ignition coil | 7K |
