Electrical Function Schematic For Engine Management, ECO Start/Stop Function - PE07.10-P-2724-97DBG

Engine 177.9 in model 213 up to model year 2021

Code: Designation: Position:
1 Air conditioning, status 38F
1 Air conditioning, status 29E
1 Air conditioning, status 10E
10 Engine start, request 38F
10 Engine start, request 26G
10 Engine start, request 30E
10 Engine start, request 11E
11 Engine stop enable, status 27H
11 Engine stop enable, status 11E
12 Crash, signal 36D
12 Crash, signal 30E
12 Crash, signal 10F
12 Crash, signal 9D
13 Engine torque, increase request 26K
13 Engine torque, increase request 26H
13 Engine torque, increase request 12E
14 Engine torque, reduce request 25K
14 Engine torque, reduce request 26H
14 Engine torque, reduce request 12E
15 ECO start/stop function button, status 39F
15 ECO start/stop function button, status 31E
15 ECO start/stop function button, status 13E
16 Engine stop prohibited, request 39F
16 Engine stop prohibited, request 26H
16 Engine stop prohibited, request 31E
16 Engine stop prohibited, request 13E
17 Steering wheel angle sensor, signal 25G
17 Steering wheel angle sensor, signal 31E
17 Steering wheel angle sensor, signal 13E
18 Door rotary tumbler switch, status 39F
18 Door rotary tumbler switch, status 32E
18 Door rotary tumbler switch, status 14E
19 Fuel pump, actuation 13K
2 Instrument cluster, message 35F
2 Instrument cluster, message -
20 Engine speed, signal 6D
21 Coolant temperature sensor, signal -
22 Accelerator pedal sensor, signal 5F
23 Brake light switch, signal 29K
24 Vacuum sensor, signal 26J
25 Seat belt buckle restraint system switch, status 36D
25 Seat belt buckle restraint system switch, status 32E
25 Seat belt buckle restraint system switch, status 11F
27 Engine hood contact switch, status 37D
27 Engine hood contact switch, status 33E
27 Engine hood contact switch, status 14E
28 Gear range, request 7C
29 Gear range, status 7D
3 Fuel pump, specified pressure request 15J
30 Circuit 87, status 9H
31 Engine running, signal 25F
31 Engine running, signal 6C
31 Engine running, signal 15J
4 Fuel pressure, status 10G
5 Starter circuit 50 relay, actuation 7J
6 Starter, actuation 5K
7 Brake light switch, status 27G
8 Wheel speed, signal 26G
9 Vehicle speed, signal 36G
9 Vehicle speed, signal 29E
9 Vehicle speed, signal 11E
A1 Instrument cluster 36J
B11/4 Coolant temperature sensor 2H
B37 Accelerator pedal sensor 1E
B64/1 Brake vacuum sensor 24H
B70 Crankshaft Hall sensor 2B
CAN B Interior CAN 39F
CAN C Engine CAN 23F
CAN C Engine CAN 12F
CAN C1 Drive train CAN 7C
CAN C1 Drive train CAN 12F
CAN C1 Drive train CAN 12E
CAN C1 Drive train CAN 23E
CAN HMI User interface CAN 36H
CAN HMI User interface CAN 36D
Code 23P Driver assistance package PLUS 21J
Flex E Chassis FlexRay 32F
Flex E Chassis FlexRay 23F
Flex E Chassis FlexRay 27H
Flex E Chassis FlexRay 25K
K40/8 Engine fuse and relay module 9J
K40/8kH Starter circuit 50 relay 7K
K40/8kN Circuit 87M relay 12H
M1 Starter 4K
M3 Fuel pump (FP) 12K
N10/6 Front SAM control unit 42E
N118 Fuel pump control unit 14K
N127 Drivetrain control unit 27E
N2/10 Supplemental restraint system control unit 36B
N3/10 ME-SFI [ME] control unit 7E
N30/4 Electronic Stability Program control unit 27J
N62/4 Intelligent Drive control unit 22J
N73 Electronic ignition switch control unit 36E
N80 Steering column module control unit 17K
S9/1 Stop lamp switch 29K
Y3/8n4 Fully integrated transmission control, control unit 7A

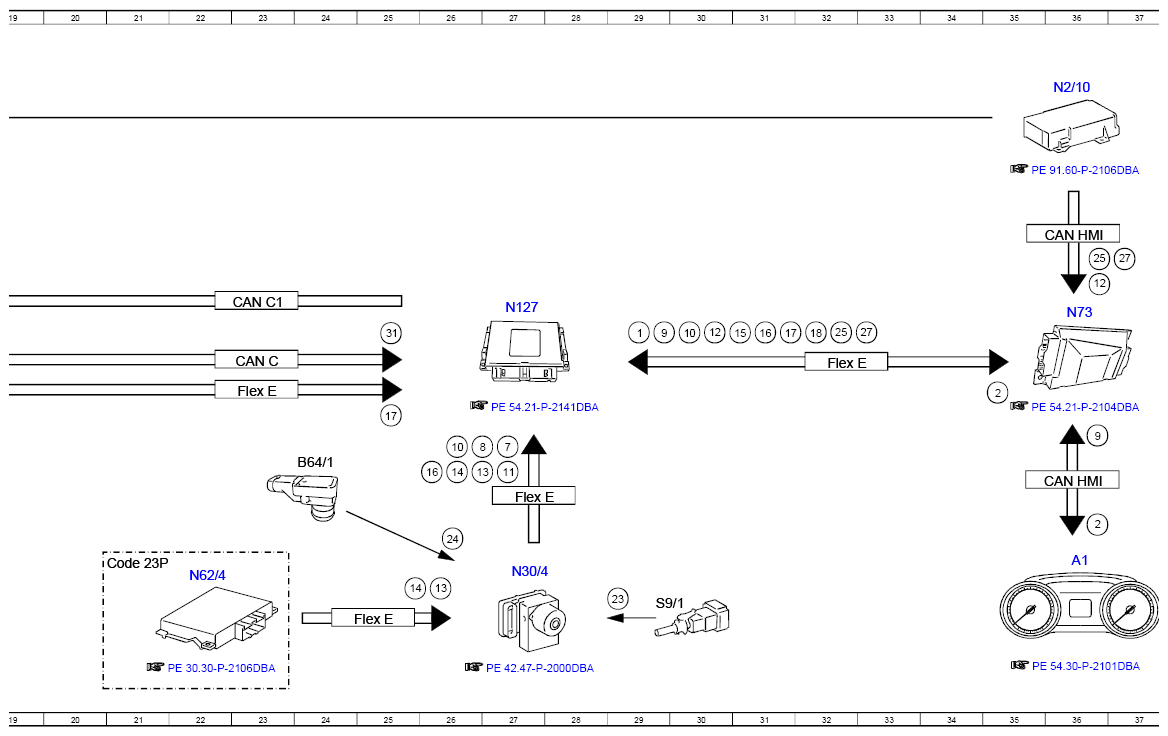

G13770554Courtesy of MERCEDES-BENZ USA

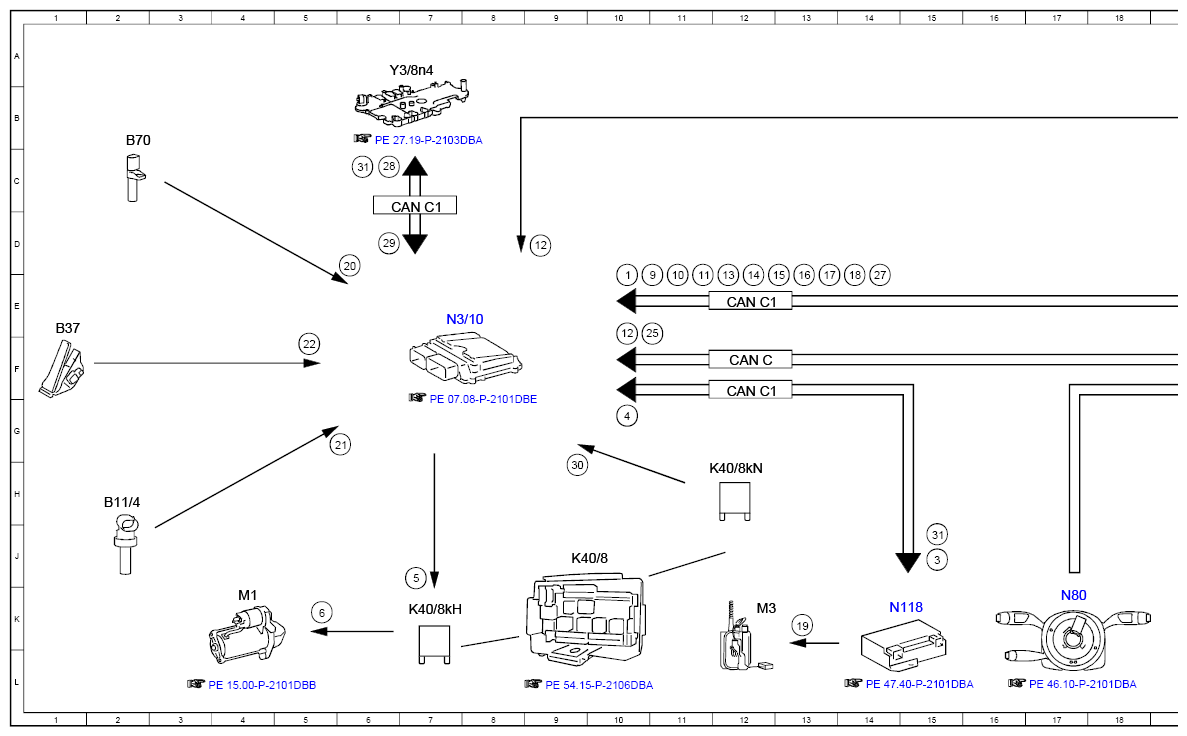

G13770555Courtesy of MERCEDES-BENZ USA

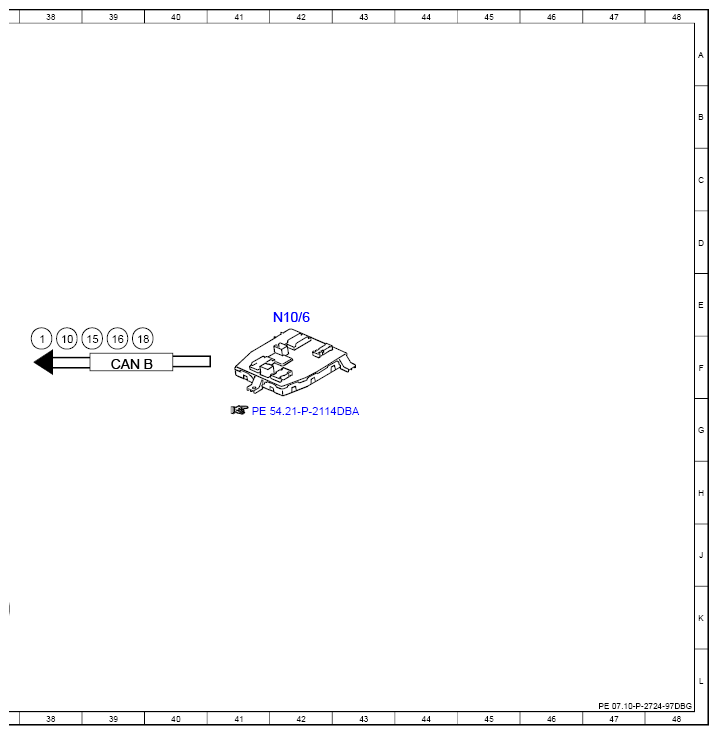

G13770556Courtesy of MERCEDES-BENZ USA
