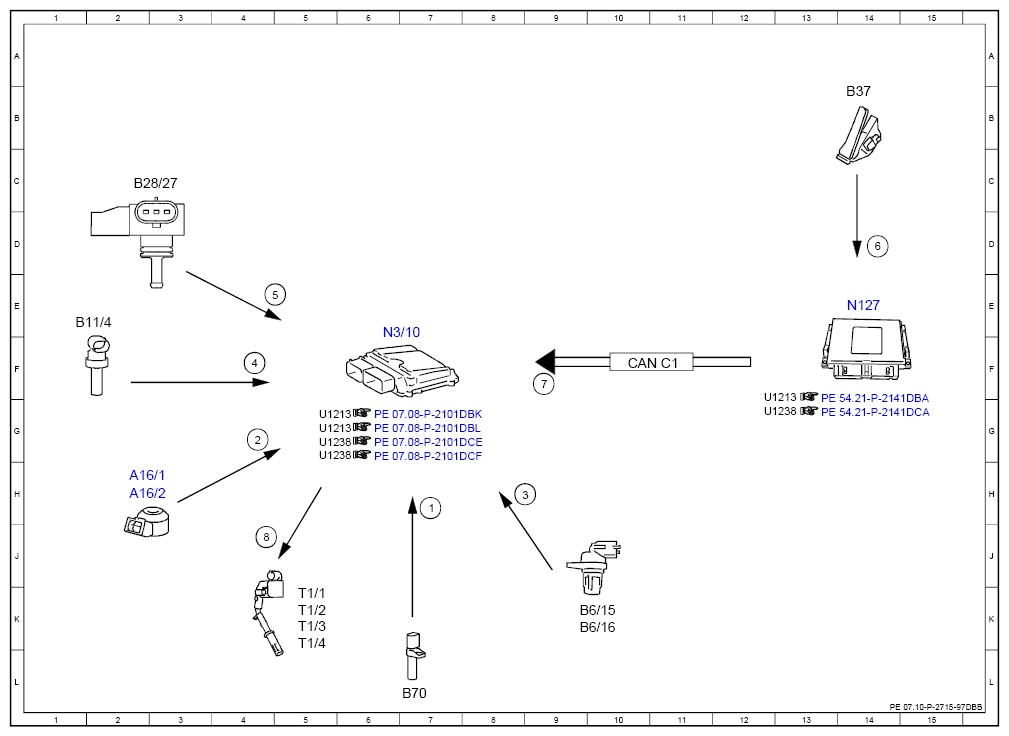

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97DBB
Engine 264.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 7H |
| 2 | Knock sensor, signal | 4G |
| 3 | Camshaft Hall sensor, signal | 8H |
| 4 | Coolant temperature sensor, signal | 4F |
| 5 | Pressure and temperature sensor downstream of throttle valve, signal | 5E |
| 6 | Accelerator pedal sensor, signal | 14D |
| 7 | Accelerator pedal position, signal | 9F |
| 8 | Ignition coils, actuation | 4J |
| A16/1 | Knock sensor 1 | 2H |
| A16/2 | Knock sensor 2 | 2H |
| B11/4 | Coolant temperature sensor | 1E |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 2C |
| B37 | Accelerator pedal sensor | 14B |
| B6/15 | Intake camshaft Hall sensor | 9K |
| B6/16 | Exhaust camshaft Hall sensor | 9K |
| B70 | Crankshaft Hall sensor | 7L |
| CAN C1 | Drive train CAN | 10F |
| N127 | Drivetrain control unit | 14E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| T1/1 | Cylinder 1 ignition coil | 5K |
| T1/2 | Cylinder 2 ignition coil | 5K |
| T1/3 | Cylinder 3 ignition coil | 5K |
| T1/4 | Cylinder 4 ignition coil | 5K |
