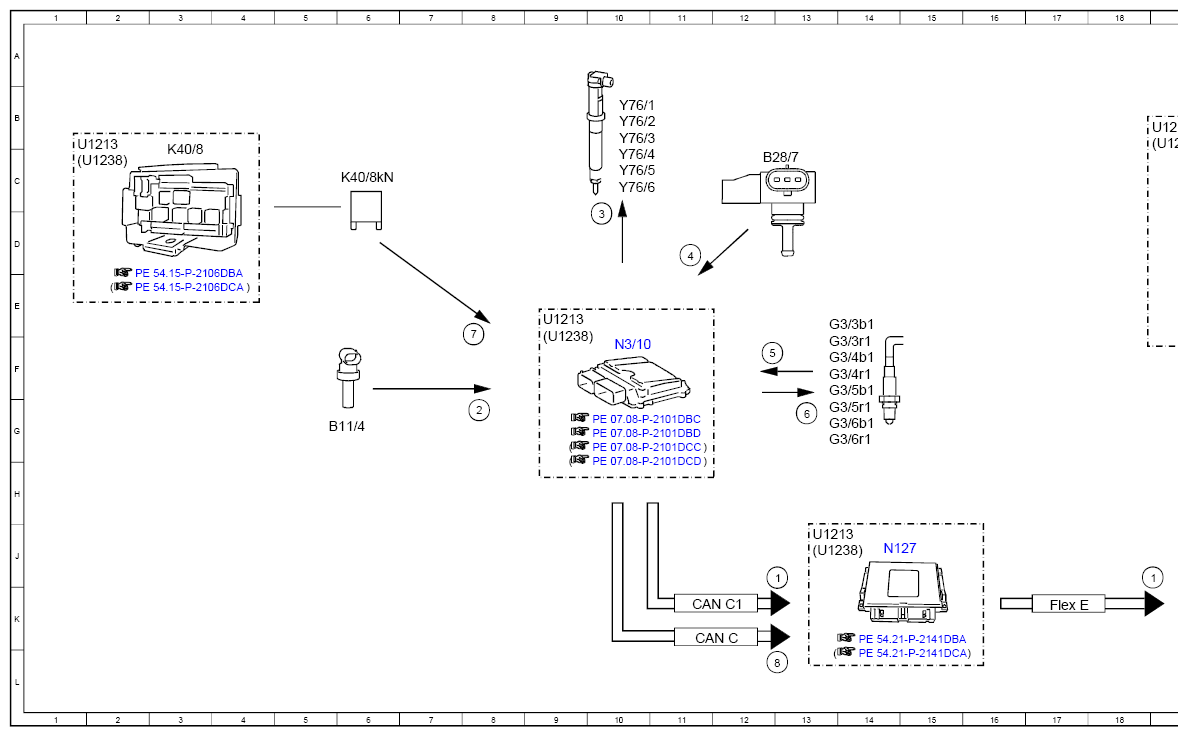

Electrical Function Schematic For Lambda Control - PE07.10-P-2710-97DBF
Engine 276.8 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Instrument cluster, request | 13J |
| 1 | Instrument cluster, request | 19J |
| 1 | Instrument cluster, request | 21F |
| 2 | Coolant temperature sensor, signal | 8G |
| 3 | Fuel injectors, actuation | 10D |
| 4 | Engine load, signal | 11D |
| 5 | Oxygen sensor, signal | 12F |
| 6 | Oxygen sensor heater, actuation | 13G |
| 7 | Circuit 87, status | 8F |
| 8 | Engine running, signal | 13L |

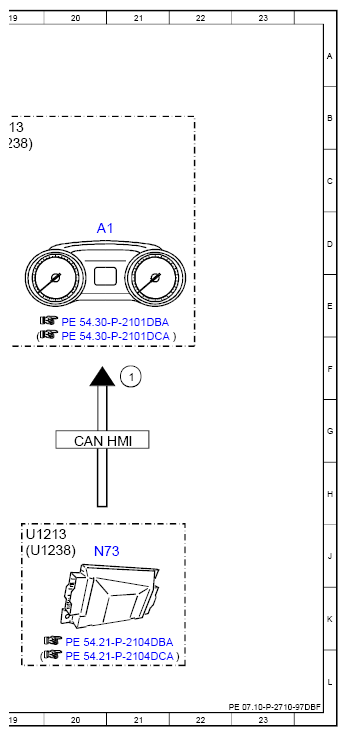

| A1 | Instrument cluster | 20D |
| B11/4 | Coolant temperature sensor | 6G |
| B28/7 | Pressure sensor downstream of throttle valve | 12C |
| CAN C | Engine CAN | 11K |
| CAN C1 | Drive train CAN | 11K |
| CAN HMI | User interface CAN | 20G |
| Flex E | Chassis FlexRay | 17K |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 13E |
| G3/3r1 | Left oxygen sensor heater upstream of catalytic converter | 13F |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 13F |
| G3/4r1 | Right oxygen sensor heater upstream of catalytic converter | 13F |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 13F |
| G3/5r1 | Left oxygen sensor heater downstream of catalytic converter | 13G |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 13G |
| G3/6r1 | Right oxygen sensor heater downstream of catalytic converter | 13G |
| K40/8 | Engine fuse and relay module | 3C |
| K40/8kN | Circuit 87M relay | 6C |
| N127 | Drivetrain control unit | 14J |
| N3/10 | ME-SFI [ME] control unit | 10F |
| N73 | Electronic ignition switch control unit | 20J |
| U1213 | Valid for model 213 | 1B |
| U1213 | Valid for model 213 | 13J |
| U1213 | Valid for model 213 | 19J |
| U1213 | Valid for model 213 | 9E |
| U1213 | Valid for model 213 | 19B |
| U1238 | Valid for model 238 | 1C |
| U1238 | Valid for model 238 | 13J |
| U1238 | Valid for model 238 | 19J |
| U1238 | Valid for model 238 | 9F |
| U1238 | Valid for model 238 | 19B |
| Y76/1 | Cylinder 1 fuel injector | 10B |
| Y76/2 | Cylinder 2 fuel injector | 10B |
| Y76/3 | Cylinder 3 fuel injector | 10B |
| Y76/4 | Cylinder 4 fuel injector | 10C |
| Y76/5 | Cylinder 5 fuel injector | 10C |
| Y76/6 | Cylinder 6 fuel injector | 10C |
