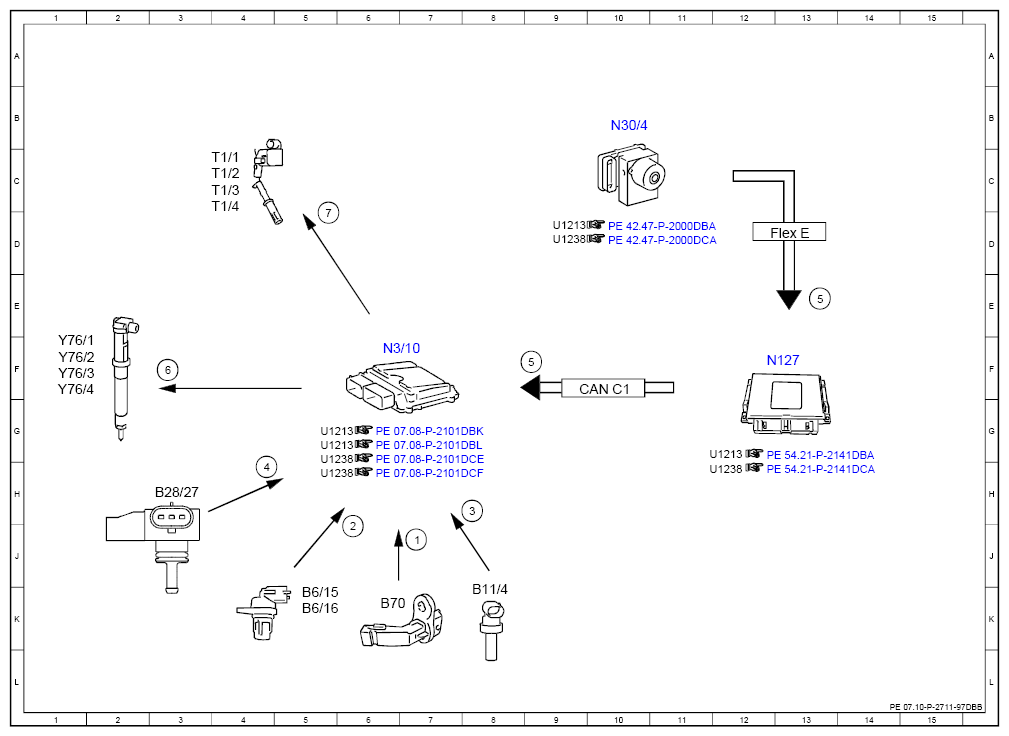

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97DBB
Engine 264.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 7J |
| 2 | Camshaft Hall sensor, signal | 6J |
| 3 | Coolant temperature sensor, signal | 8H |
| 4 | Pressure and temperature sensor downstream of throttle valve, signal | 5H |
| 5 | Wheel speed, signal | 9F |
| 5 | Wheel speed, signal | 13E |
| 6 | Fuel injectors, actuation | 3F |
| 7 | Ignition coils, actuation | 5D |
| B11/4 | Coolant temperature sensor | 8K |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 3H |
| B6/15 | Intake camshaft Hall sensor | 5K |
| B6/16 | Exhaust camshaft Hall sensor | 5K |
| B70 | Crankshaft Hall sensor | 6K |
| CAN C1 | Drive train CAN | 10F |
| Flex E | Chassis FlexRay | 13D |
| N127 | Drivetrain control unit | 13F |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N30/4 | Electronic Stability Program control unit | 10B |
| T1/1 | Cylinder 1 ignition coil | 4C |
| T1/2 | Cylinder 2 ignition coil | 4C |
| T1/3 | Cylinder 3 ignition coil | 4C |
| T1/4 | Cylinder 4 ignition coil | 4C |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
