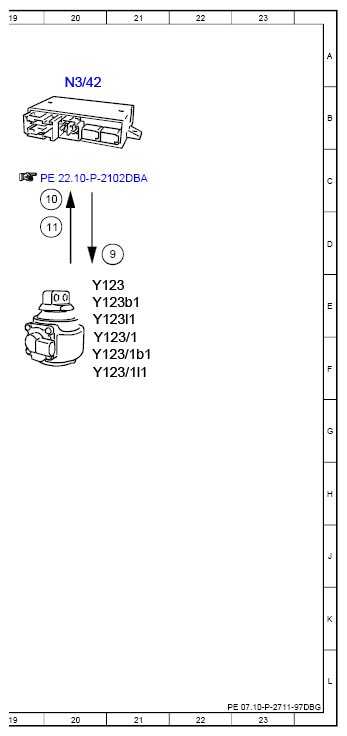

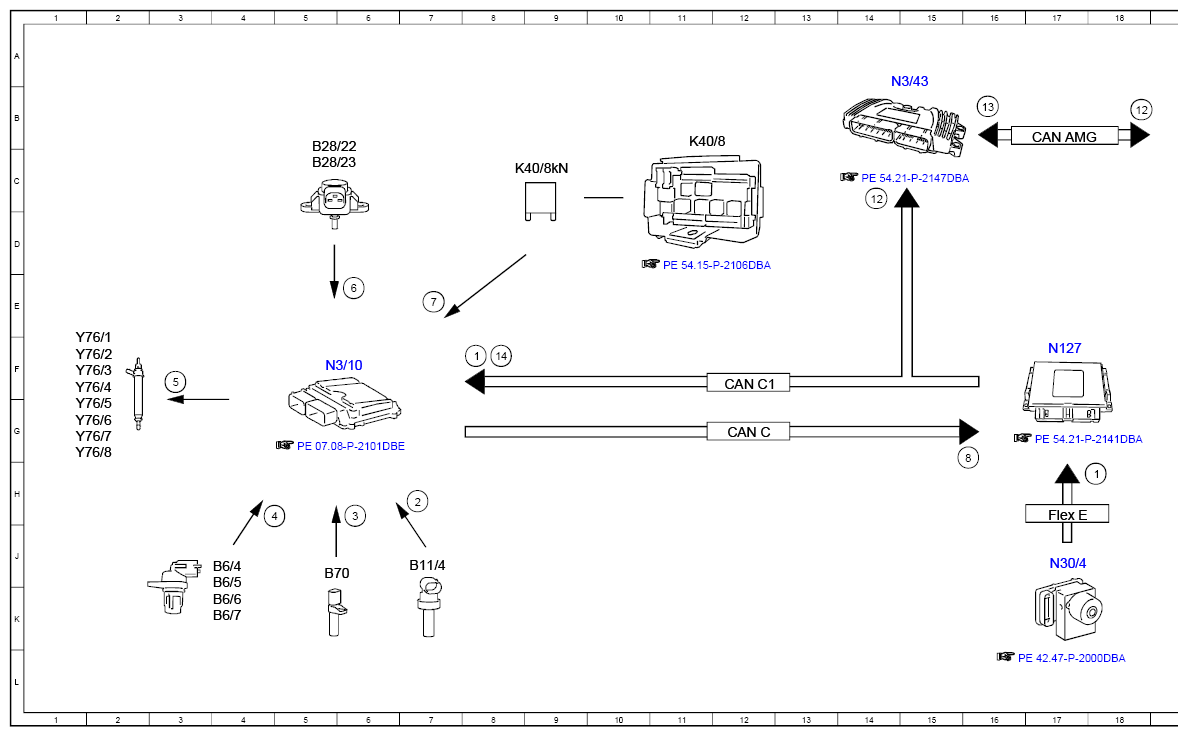

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97DBG
Engine 177.9 in model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 18H |
| 1 | Wheel speed, signal | 8F |
| 10 | Active engine mount coil, status | 20C |
| 11 | Active engine mount operating condition, signal | 20D |
| 12 | Engine running, signal | 18B |
| 12 | Engine running, signal | 14C |
| 13 | Active engine mount hardness, signal | 16B |
| 14 | Active engine mount control, status | 8F |
| 2 | Coolant temperature sensor, signal | 7H |
| 3 | Engine speed, signal | 6H |
| 4 | Camshaft Hall sensor, signal | 4H |
| 5 | Fuel injectors, actuation | 3F |
| 6 | Engine load, signal | 6E |
| 7 | Circuit 87, status | 7E |
| 8 | Engine running, signal | 16G |
| 9 | Active engine mount coil, actuation | 21D |
| B11/4 | Coolant temperature sensor | 7J |
| B28/22 | Left pressure sensor downstream of throttle valve | 5C |
| B28/23 | Right pressure sensor downstream of throttle valve | 5C |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 5J |
| CAN AMG | AMG CAN | 17B |
| CAN C | Engine CAN | 12G |
| CAN C1 | Drive train CAN | 12F |
| Flex E | Chassis FlexRay | 17H |
| K40/8 | Engine fuse and relay module | 11B |
| K40/8kN | Circuit 87M relay | 9C |
| N127 | Drivetrain control unit | 17F |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N3/42 | Active engine mounts control unit | 20B |
| N3/43 | AMG sports suspension control unit | 15A |
| N30/4 | Electronic Stability Program control unit | 17J |
| Y123 | Left active engine mount | 20E |
| Y123/1 | Right active engine mount | 20F |
| Y123/1b1 | Right active engine mount pressure sensor | 21F |
| Y123/1l1 | Right active engine mount coil | 20F |
| Y123b1 | Left active engine mount pressure sensor | 20E |
| Y123l1 | Left active engine mount coil | 20E |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1G |
| Y76/6 | Cylinder 6 fuel injector | 1G |
| Y76/7 | Cylinder 7 fuel injector | 1G |
| Y76/8 | Cylinder 8 fuel injector | 1G |
